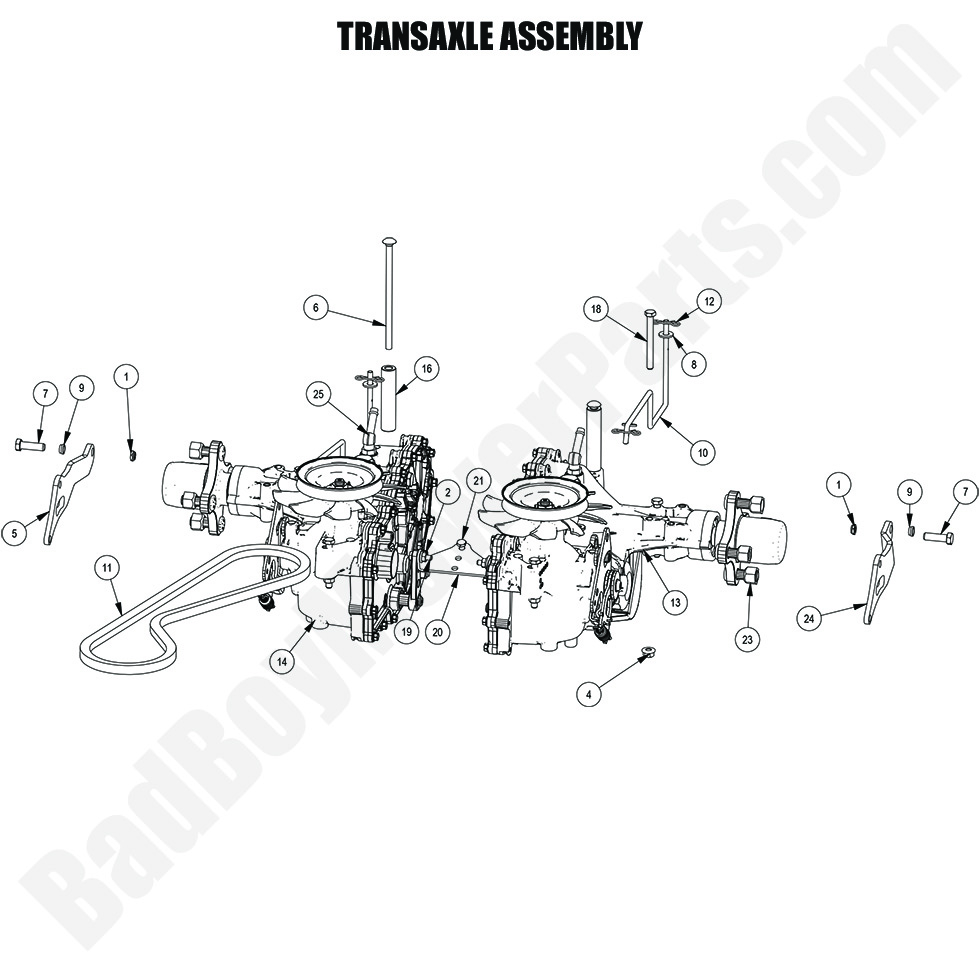

2024 Revolt SD Transaxle Assembly

Transaxle Assembly

Find the parts for your 2024 Revolt SD at BadBoyMowerParts.com. We have the Transaxle Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2024 Revolt SD Transaxle Assembly
  Position Number SKU Product Title Price
1 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
2 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt-Grade 5
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
8 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
9 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
10 028-0071-00 028-0071-00 - Neutral Release Rod 2019-2021 Revolt
$26.74
11 041-8001-00 041-8001-00 - Pump Belt (See Models Used On For Detail)
$80.24
12 044-2004-00 044-2004-00 - Bow Pin
$2.99
13 050-6002-02 050-6002-02 - 2023 Revolt SD Left
$877.39
14 050-6003-02 050-6003-02 - 2023 Revolt SD Right
$877.39
16 025-0070-00 025-0070-00 - 2017-2022 Transaxle Spacer
$6.41
18 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
19 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
20 039-0151-00 039-0151-00 - 2020 36" Brake Bracket--Black
$14.11
21 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
23 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
25 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
