2025 Raider - 36" Deck Assembly

2025 Raider - 36" Deck Assembly

A well-maintained 2025 Raider 36" Deck Assembly ensures a clean and precise cut every time you mow. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to keep your cutting deck in excellent condition. Whether you need spindles, pulleys, belts, or blades, our Bad Boy Lawn Mower Parts inventory has you covered. Our Bad Boy Mower Part diagrams simplify the process of finding the exact parts needed for repairs. A properly functioning deck reduces wear and tear on other components while improving mowing efficiency. We stock Bad Boy Parts Online, so you can order quickly and receive your parts without delay. Plus, with Free Shipping On Orders Over $100, maintaining your mower deck is more affordable than ever. Keep your 2025 Raider 36" Deck Assembly performing at its best—order your replacement parts today and ensure a flawless cut every time.

Bad Boy Mower Parts Lookup

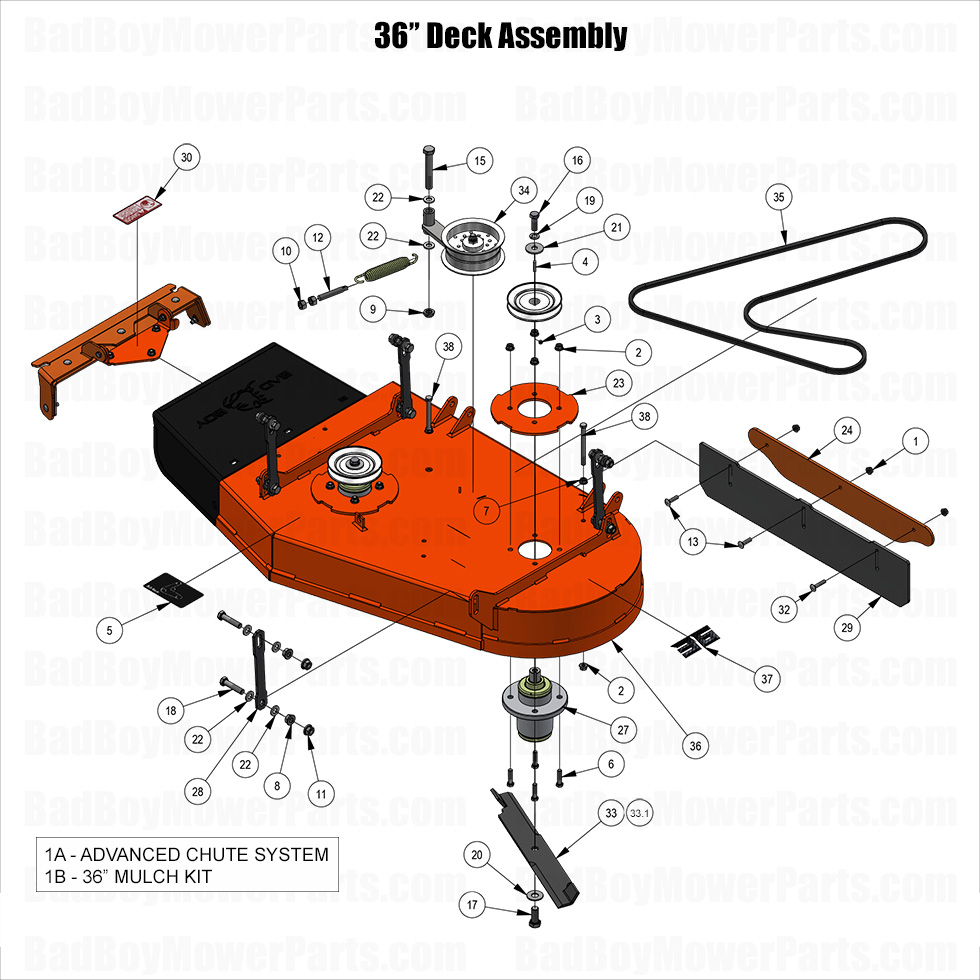

2025 Raider - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 091-0418-00 091-0418-00 - 2017-2024 Walk Behind 36" Deck Belt Route
$4.37
6 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
9 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
10 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
21 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
22 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
23 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
24 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
27 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
29 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
30 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
32 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
33.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
33 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
34 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
35 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
36 060-2317-00 060-2317-00 - 2023 36" Walk Behind Deck--Painted
$1399.99
37 091-0501-00 091-0501-00 - 36" Deck Decal
$10.99
38 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
