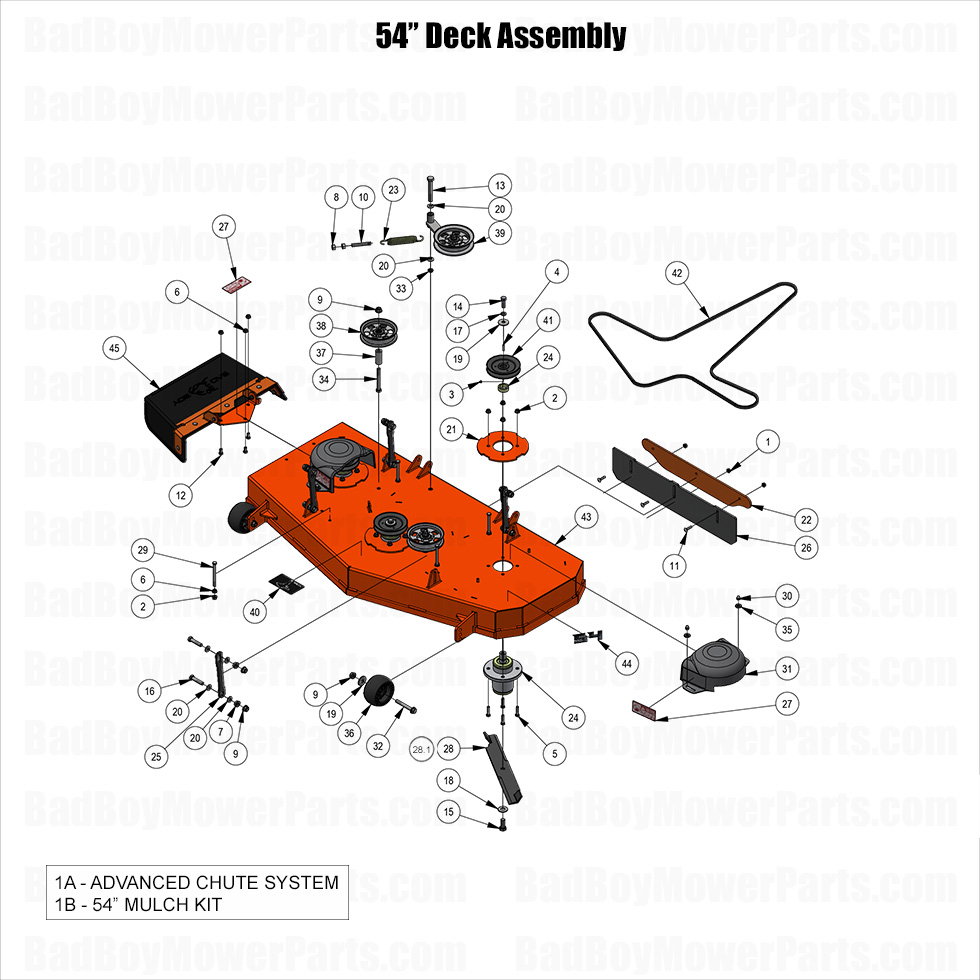

2025 Raider - 54" Deck Assembly

2025 Raider - 54" Deck Assembly

For larger mowing tasks, the 2025 Raider 54" Deck Assembly provides the perfect balance of efficiency and precision. At BadBoyMowerParts.com, we supply high-performance Bad Boy Mower Parts to keep your deck operating at its best. From blades and pulleys to spindles and belts, our Bad Boy Lawn Mower Parts inventory ensures that your deck stays in peak condition. Our Bad Boy Mower Part diagrams make locating and ordering the correct replacement parts effortless. A well-maintained deck delivers a professional-grade cut while reducing wear on other mower components. We stock Bad Boy Parts Online to ensure fast access to essential repairs. Plus, with Free Shipping On Orders Over $100, maintaining your mower deck is cost-effective and hassle-free. Keep your 2025 Raider 54" Deck Assembly cutting smoothly—order high-quality replacement parts today and enjoy superior mowing performance.

Bad Boy Mower Parts Lookup

2025 Raider - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
6 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
7 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
8 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
12 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
13 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
14 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
15 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
16 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
17 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
18 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
21 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
22 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
23 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
24 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
26 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
27 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
28.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
28 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
29 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
30 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
31 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
32 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
33 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
34 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
35 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
36 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
37 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
38 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
39 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
40 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
41 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
42 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
43 060-2319-00 060-2319-00 - 2023 54" Walk Behind Deck--Painted
$1399.99
44 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99
45 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
