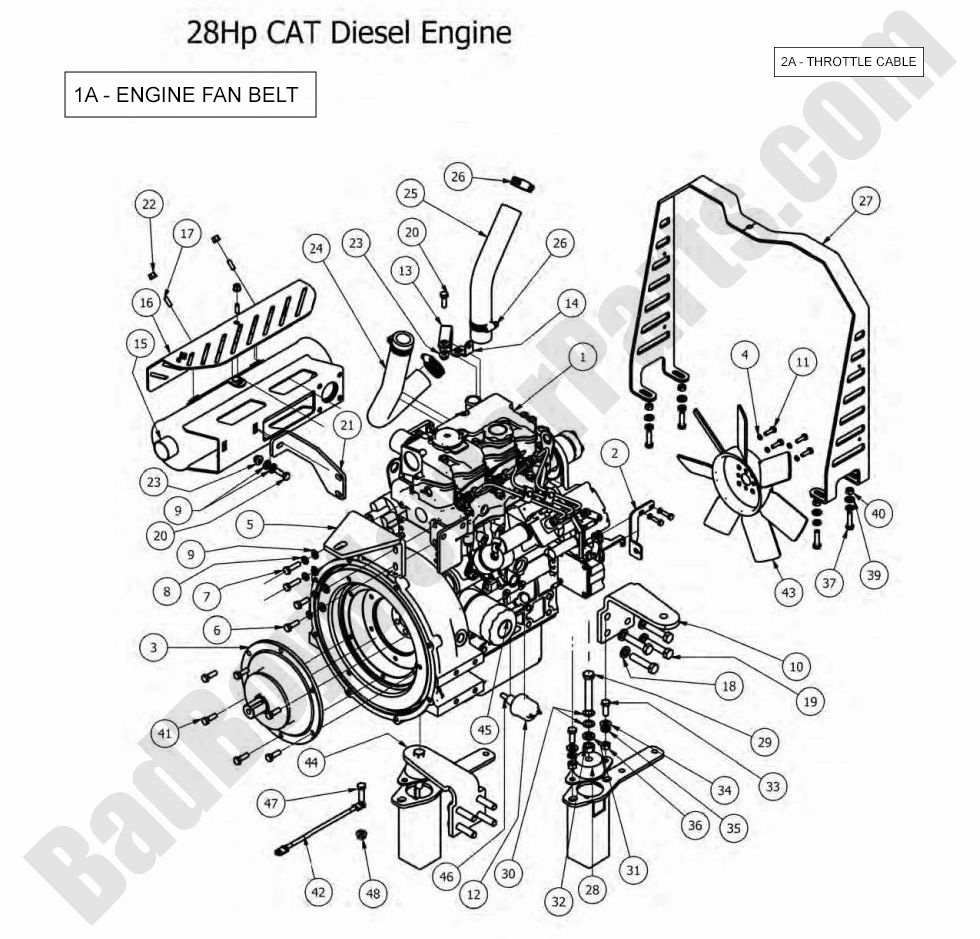

2012 Diesels Engine (28Hp)

Engine (28Hp)

The Bad Boy Mower parts diagram for the 2012 Diesels Engine (28Hp) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 Diesels models. Find all of your Bad Boy mowers 2012 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 Diesels Engine (28Hp). If you are not able to find the Bad Boy parts for your 2012 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 Diesels Engine (28Hp)
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
3 017-3000-00 017-3000-00 - Stub shaft- Diesel
$245.99
4 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
5 201-8005-00 201-8005-00 - Air Cleaner Support Diesel
$42.58
6 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
7 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 201-8008-00 201-8008-00 - Diesel Motor Side Support Right
$31.22
11 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
12 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$106.99
13 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
14 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
15 015-0010-00 015-0010-00 - 28/35hp Caterpillar Muffler
$241.35
16 043-1010-00 043-1010-00 - 2010-2017 Diesel Muffler Cover (28hp)
$22.71
17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhau
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
20 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
21 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
25 051-3000-00 051-3000-00 - Top Radiator Hose - Diesel
$22.03
26 072-2003-00 072-2003-00 - 1 1/8 Hose Clamp
$5.82
27 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
28 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
29 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
30 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
32 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
33 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
34 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
35 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
36 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
40 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
41 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
42 086-0004-00 086-0004-00 - Starter to Chassis Cable - Diesel Models
$5.98
43 015-6050-00 015-6050-00 - Engine Fan - Diesel
$217.09
44 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left
$31.22
45 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$31.02
46 019-2050-00 019-2050-00 - Brass Washer for Weld-on Hinge
$2.99
47 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
48 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
