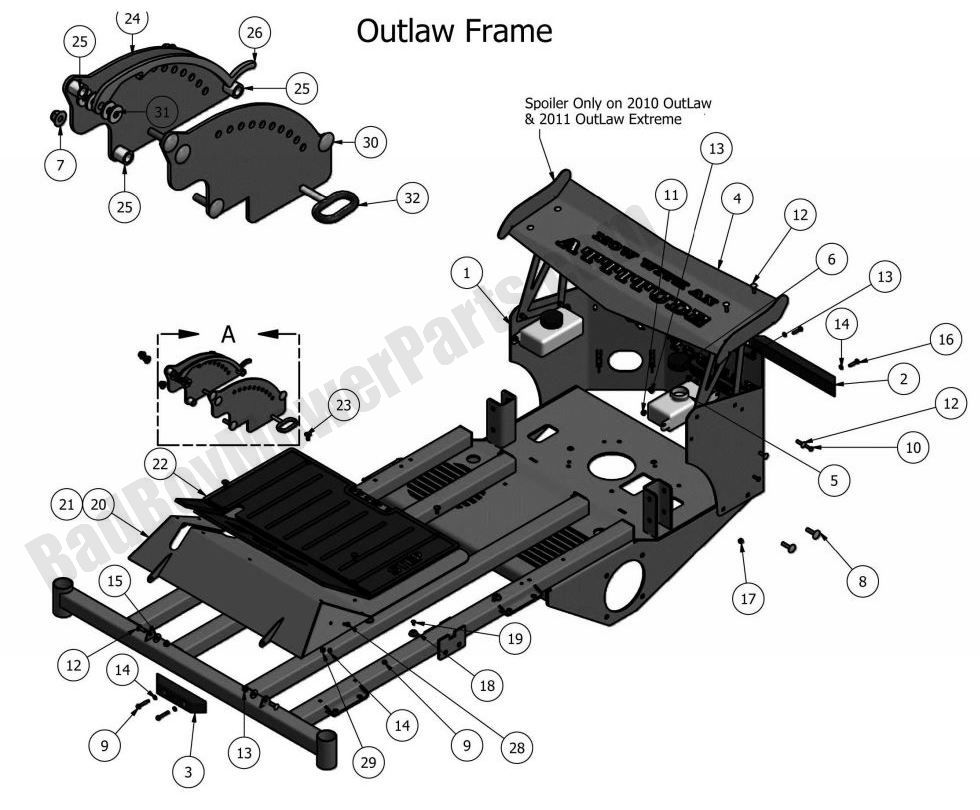

2011 Outlaw & Outlaw Extreme Frame

Frame

The Bad Boy Mower parts diagram for the 2011 Outlaw Frame is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Outlaw models. Find all of your Bad Boy mowers 2011 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Outlaw Frame. If you are not able to find the Bad Boy parts for your 2011 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Outlaw & Outlaw Extreme Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 026-2110-00 026-2110-00 - Outlaw Rear Plate
$213.99
2 029-7037-00 029-7037-00 - 14 Bumper
$42.79
3 029-7038-00 029-7038-00 - 8 Bumper
$28.32
4 088-3010-00 088-3010-00 - Outlaw Spoiler doesn't fit XP
$244.99
5 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
6 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
11 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
14 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
15 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
16 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 GR 5 Hex Bolt
$2.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
18 029-4010-00 029-4010-00 - Button Bumper
$2.99
19 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
20 079-3100-00 079-3100-00 - 2010-2014 Outlaw Floor Panel
$149.99
21 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
22 081-2008-00 081-2008-00 - Foot Assist Floor Mat (See Models Used On For Details)
$66.76
23 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
24 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
25 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
26 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
28 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
29 013-8039-00 013-8039-00 - 1/4-20 Hex Nuts Zinc
$2.99
30 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
32 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
