2012 Outlaw XP Frame & Deck Lift

Frame & Deck Lift

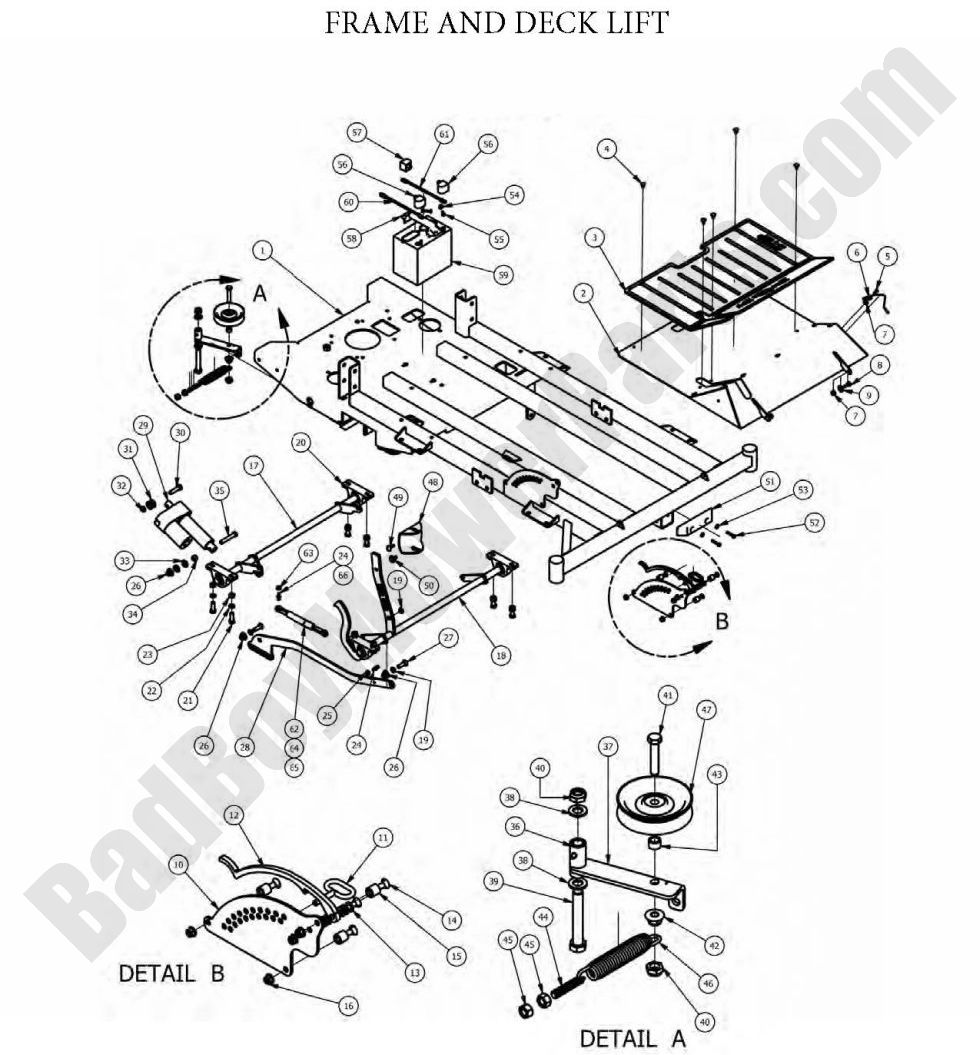

The Bad Boy Mower parts diagram for the 2012 Outlaw XP Frame & Deck Lift is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 Outlaw XP models. Find all of your Bad Boy mowers 2012 Outlaw XP parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 Outlaw XP Frame & Deck Lift. If you are not able to find the Bad Boy parts for your 2012 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 Outlaw XP Frame & Deck Lift
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5360-00 070-5360-00 - 2012-2014 Outlaw XP Frame
$1390.99
2 079-3100-00 079-3100-00 - 2010-2014 Outlaw Floor Panel
$149.99
3 081-2008-00 081-2008-00 - Foot Assist Floor Mat (See Models Used On For Details)
$66.76
4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
5 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
6 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
11 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
12 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
13 019-2003-00 019-2003-00 -.390x.750x.062 Nylon Washer
$2.99
14 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
16 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 028-6020-00 028-6020-00 - Rear Actuator Bar Assy (See Models Used On For Detail)
$106.48
18 028-6010-00 028-6010-00 - Front Actuator Bar Assy (See Models Used On For Detail)
$152.99
19 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
20 017-7008-00 017-7008-00 - 1" Pillow Block Bearing
$21.29
21 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
24 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
24 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
25 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
27 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
28 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39
29 035-7033-00 035-7033-00 - Actuator
$437.36
30 018-5049-00 018-5049-00 - 1/2-13 X 2 GR 5 Hex Bolts Zinc
$2.99
31 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
32 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
35 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
36 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
37 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
39 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
40 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
41 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
44 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
46 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
47 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
48 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
49 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
50 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
51 029-7038-00 029-7038-00 - 8 Bumper
$28.32
52 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
53 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
54 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
55 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
56 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
57 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
58 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
60 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
61 064-5300-00 064-5300-00 - 24 Red Battery Cable
$21.85
62 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
64 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Outlaw Deck Damper
$62.40
65 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
66 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper for Outlaw
$4.83
