2009 Diesel Wheel Motor

Wheel Motor

The Bad Boy Mower parts diagram for the 2009 Diesel Wheel Motor is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2009 Diesel models. Find all of your Bad Boy mowers 2009 Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 Diesel Wheel Motor. If you are not able to find the Bad Boy parts for your 2009 Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

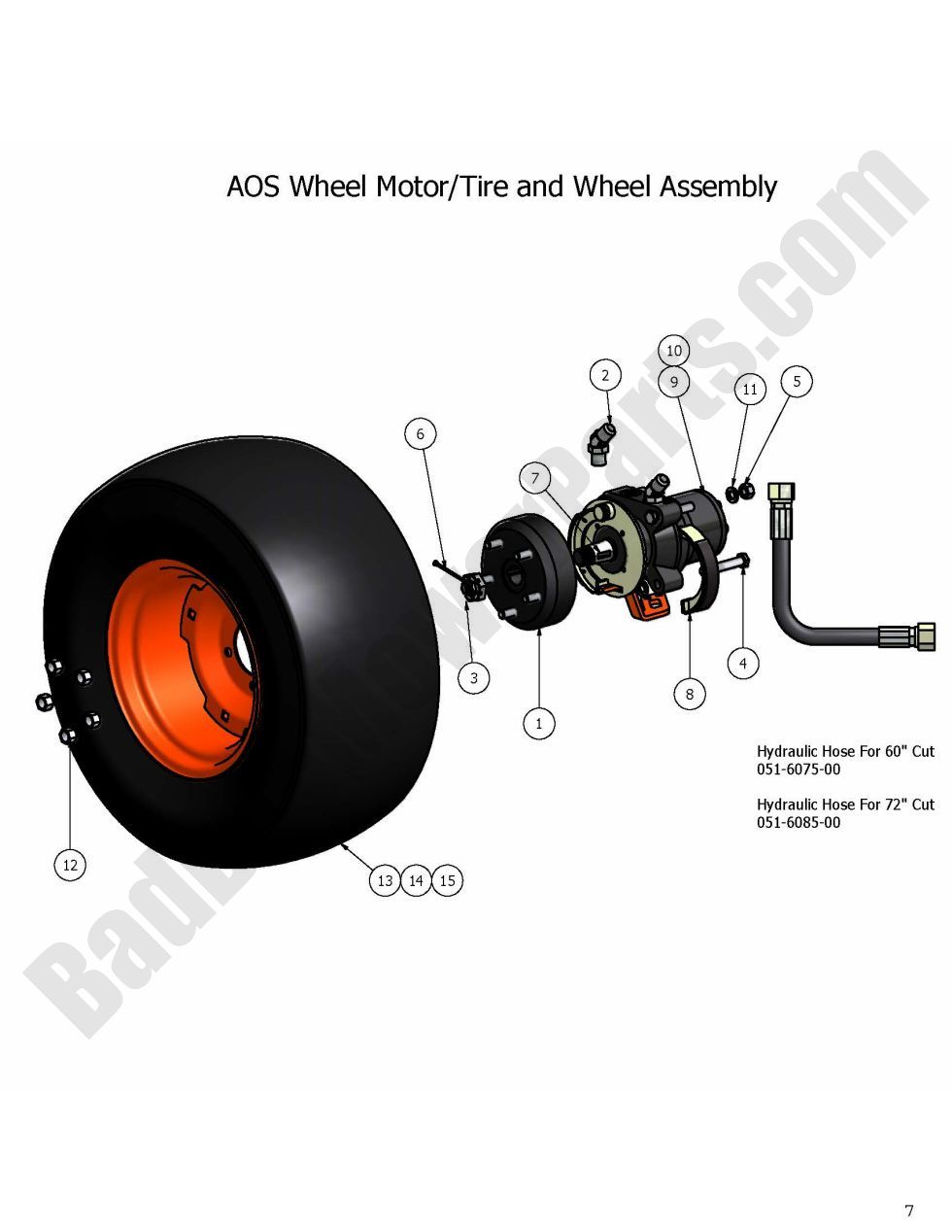

2009 Diesel Wheel Motor
  Position Number SKU Product Title Price

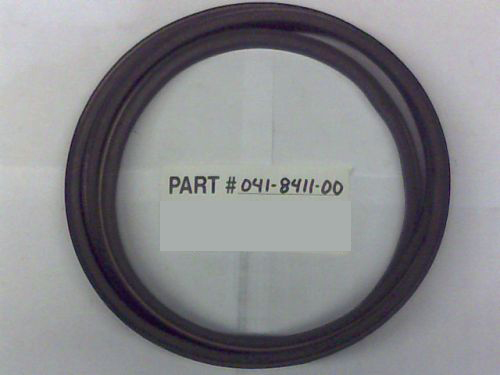

1A 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19

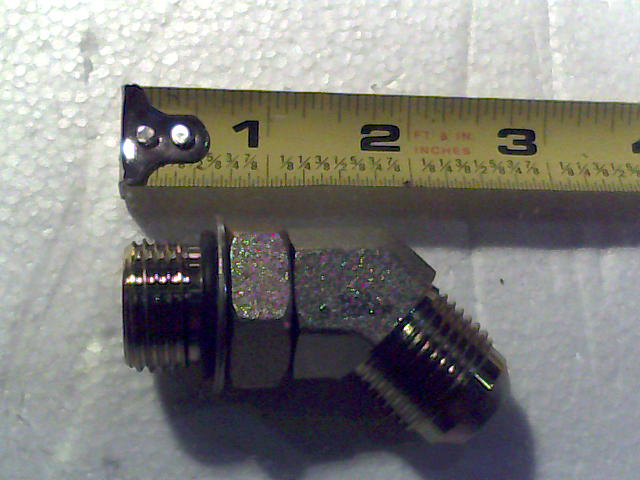

2 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting -6822
$17.02
3 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
4 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
7 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19

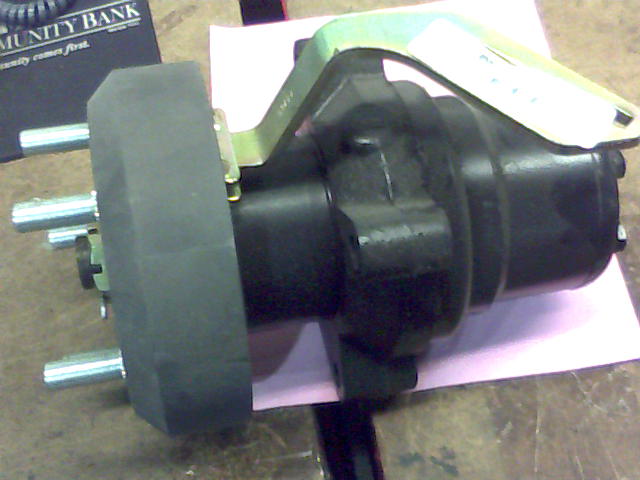

9 015-5006-98 015-5006-98 - Motor and Brake Conversion Kit-18E-Righ AOS/Diesel
$961.93

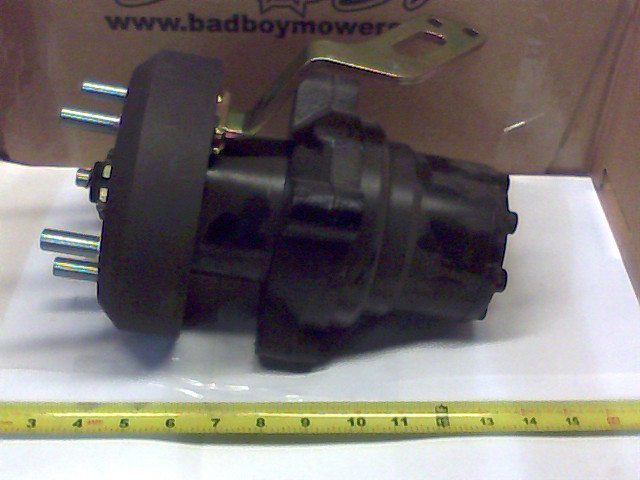

10 015-5007-98 015-5007-98 - Motor and Brake Conversion Kit-18E-Left AOS/Diesel
$854.93
11 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29

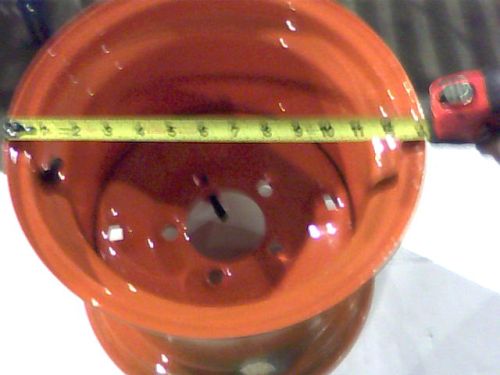

13 022-7033-00 022-7033-00 - OBSOLTE use 022-7034-00 12 x 11.5 Wheel - AOS Rear (obsolete)
use part #022-7034-00
$235.99

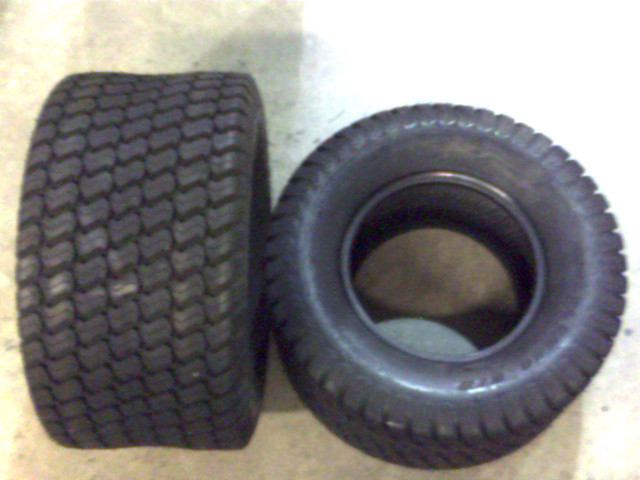

14 022-7032-00 022-7032-00 - 26 x 12.00 - 12 Tire (One Tire Only)
$331.99

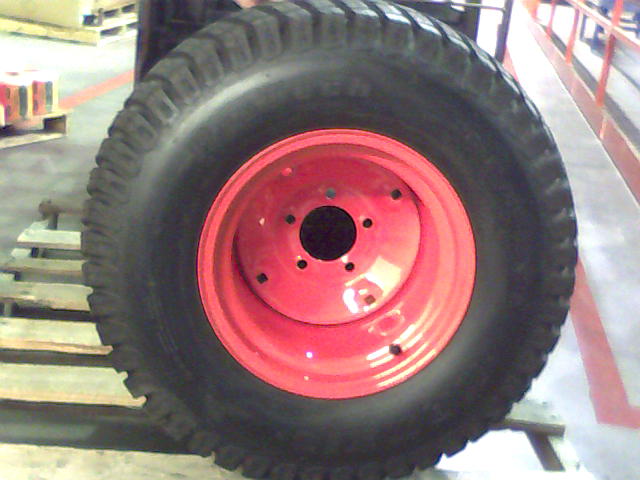

15 022-7031-00 022-7031-00 - 26 x 12.00 - 12 Tire and Orang e Wheel Assembly
$458.99
