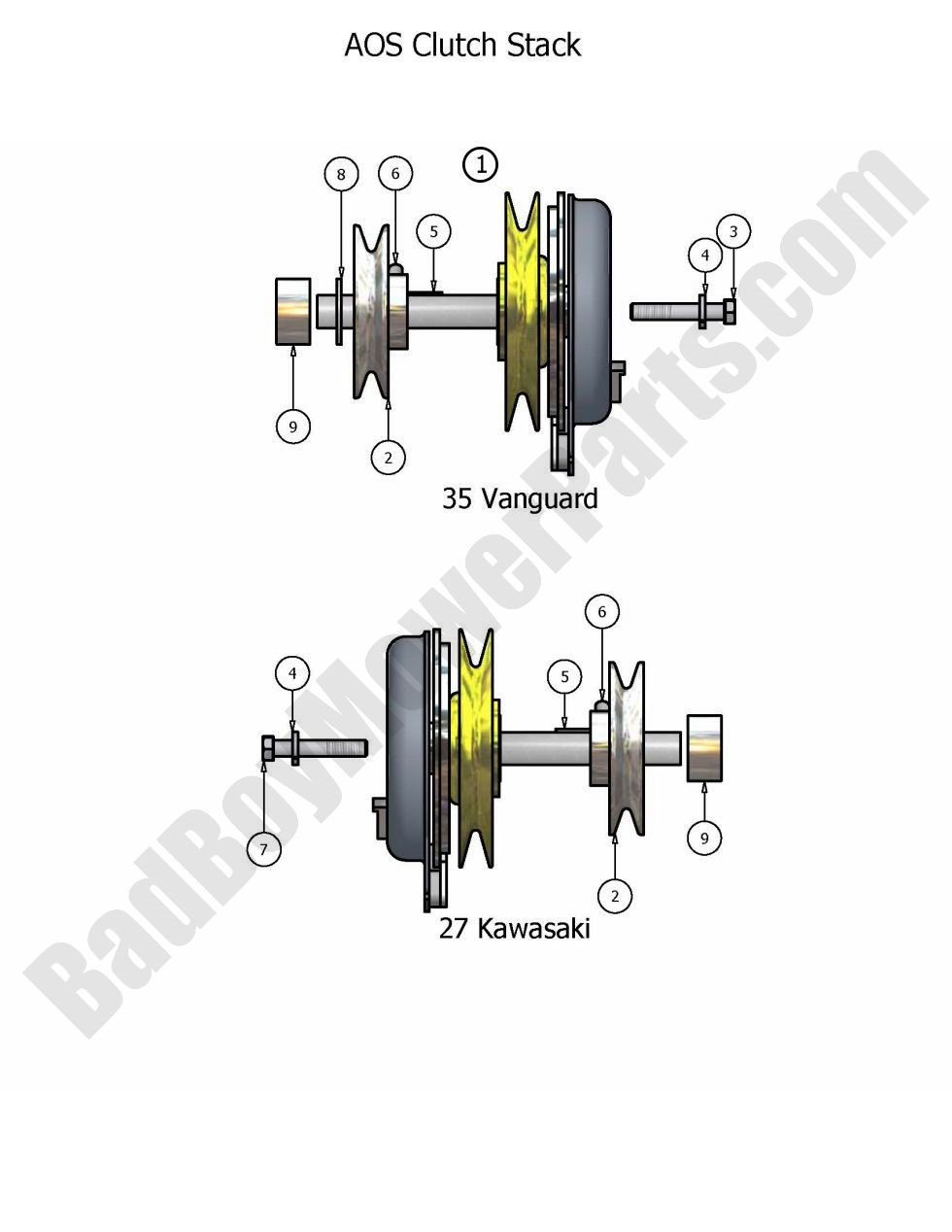

2007 AOS Clutch Stack

Clutch Stack

The Bad Boy Mower parts diagram for the 2007 AOS Clutch Stack is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy zero turn parts diagrams for the 2007 AOS models. Find all of your Bad Boy mowers 2007 AOS parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 AOS Clutch Stack. If you are not able to find the Bad Boy parts for your 2007 AOS please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 AOS Clutch Stack
  Position Number SKU Product Title Price
1 070-5035-00 070-5035-00 - PTO Clutch - AOS Gas Models
$298.14
2 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
3 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
4 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
5 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
6 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
7 018-5028-00 018-5028-00 - M10 X 1.5 X 60MM
$2.99
8 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
9 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1 Length Spacer Zinc Countersunk
$11.34
