2007 AOS Seat Frame

Seat Frame

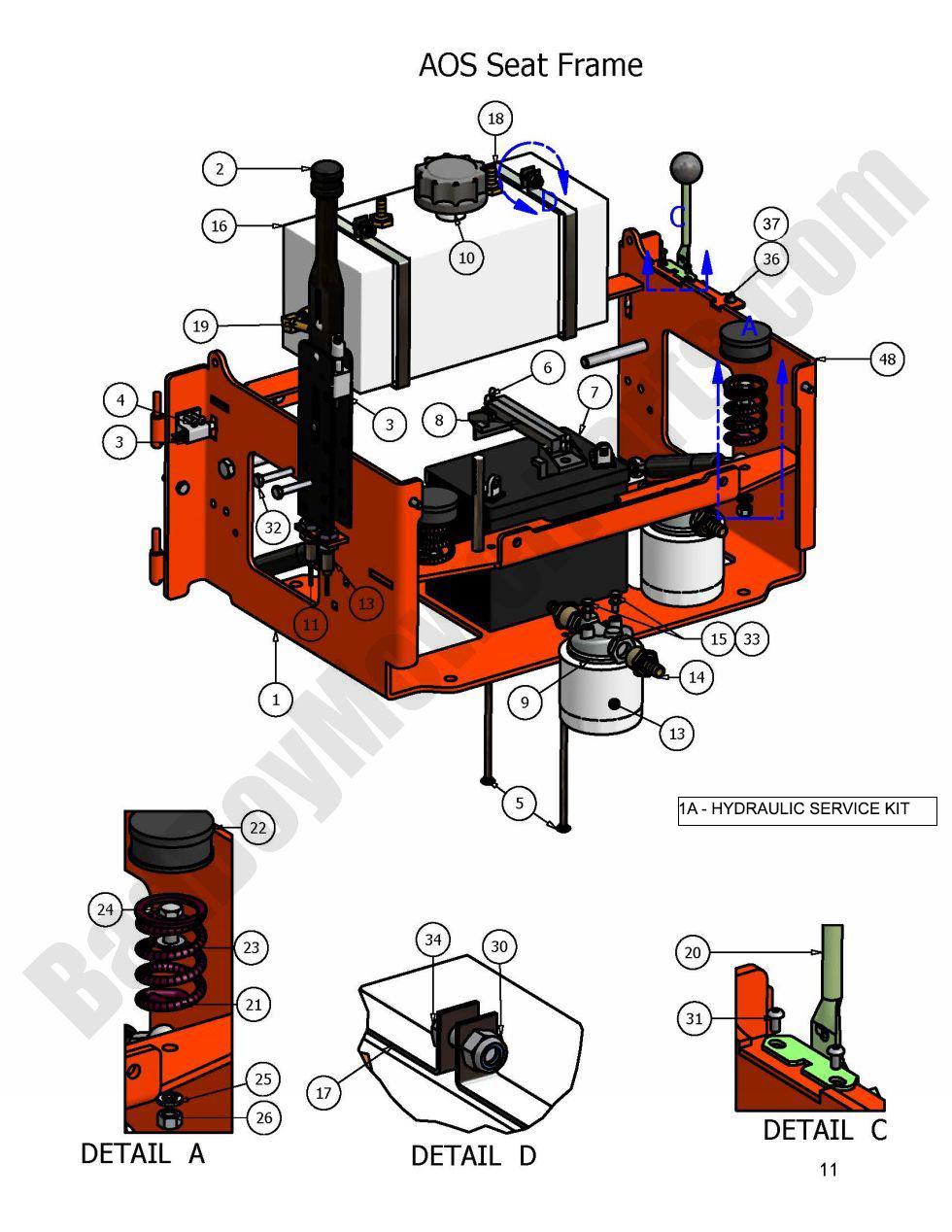

The Bad Boy Mower parts diagram for the 2007 AOS Seat Frame is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy zero turn mowers parts diagrams for the 2007 AOS models. Find all of your Bad Boy mowers 2007 AOS parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 AOS Seat Frame. If you are not able to find the Bad Boy parts for your 2007 AOS please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 AOS Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-6010-00 080-6010-00 - Seat Frame (See Models Used On For Details)
$427.99
2 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
3 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99

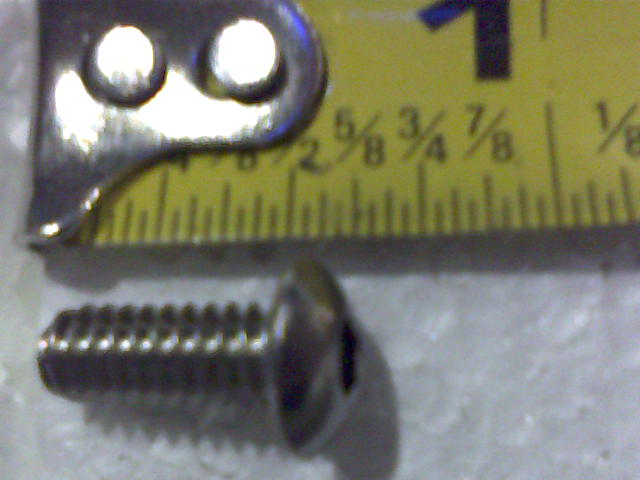

4 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
5 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
6 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
8 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
9 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
10 066-8048-00 066-8048-00 - Hydraulic Tank Cap
$22.23
11 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
12 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
13 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
14 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
16 067-9016-00 067-9016-00 - Plastic Hydraulic Tank w/Strap OBSOLETE PART USE 067-2010-98 (obsolete)
use part #067-2010-22
$349.99
18 024-5205-00 024-5205-00 - Hose Barb, 3/8 x 3/8, 206-106
$8.74
19 024-5203-00 024-5203-00 - Fitting 4501-8-8
$11.75
20 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
21 034-8045-00 034-8045-00 - Seat Spring
$20.49
22 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
23 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
24 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
25 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
30 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
31 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
32 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
33 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
34 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
36 071-3000-00 071-3000-00 - Milsco Suspension Seat-AOS/Lig OBSOLETE use 071-4050-17 (obsolete)
use part #071-4050-17
$813.99
37 054-8016-00 054-8016-00 - 47" Choke Cable For AOS, Pup, Lightning, 2016-2018 Outlaw/Outlaw Extreme Units with Kawasaki FX730 & FX850 Engines and 2013-2016 MZ Units With Kawasaki Engines. (Will Not Work On Units With 30hp Engines)
$28.88
