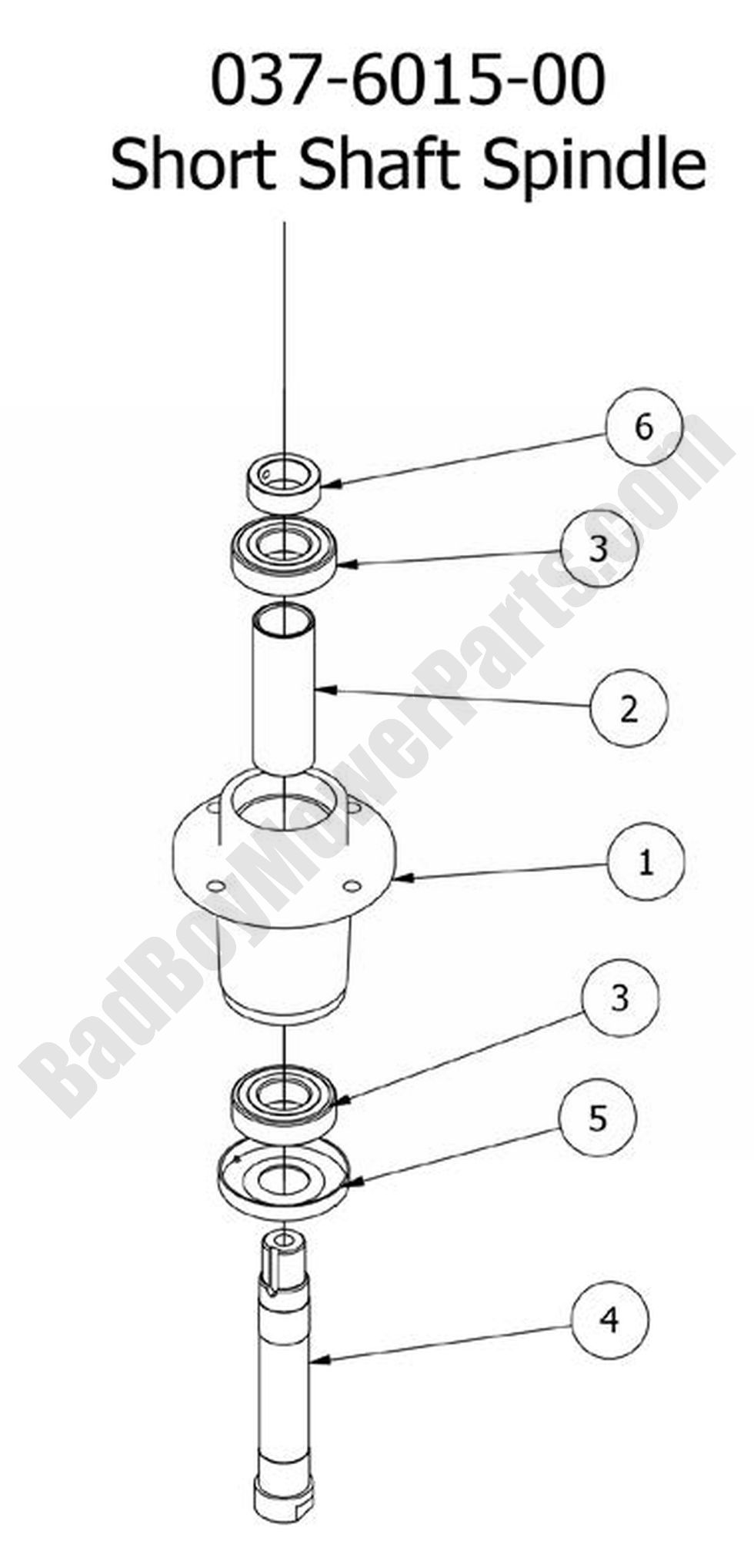

BadBoyMowerParts.com has the parts diagrams for the 2008 ZT models. Find all of your Bad Boy mowers 2008 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2008 ZT Spindle Assembly. If you are not able to find the Bad Boy parts for your 2008 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 037-6017-00 |
037-6017-00 - Spindle Housing - Obsolete - Use 037-6015-50 (obsolete) use part #037-6015-50 |
$213.99
|
||
2 | 037-8050-00 | 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle |
$8.69
|
||
3 | 037-6023-00 |
037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete) use part #037-6029-00 |
$42.58
|
||
4 | 037-6026-00 | 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft |
$83.77
|
||
5 | 037-8002-00 | 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50) |
$11.76
|
||
6 | 037-9050-00 | 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details) |
$7.28
|
||
7 | 037-6015-00 |
037-6015-00 - Short Shaft Spindle (obsolete) use part #037-6015-50 |
$213.99
|
