2008 ZT Engine & Clutch

Engine & Clutch

The Bad Boy Mower parts diagram for the 2008 ZT Engine & Clutch is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2008 ZT models. Find all of your Bad Boy mowers 2008 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2008 ZT Engine & Clutch. If you are not able to find the Bad Boy parts for your 2008 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2008 ZT Engine & Clutch
  Position Number SKU Product Title Price
1A 063-2000-00 063-2000-00 - ZT/MZ Service Package for a 26/27 Briggs Engine
$88.97
1B 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$189.64
3 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
4 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
5 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
6 063-2004-00 063-2004-00 - Oil Filter USE 063-8018-00 (obsolete)
use part #063-8018-00
$21.39
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99

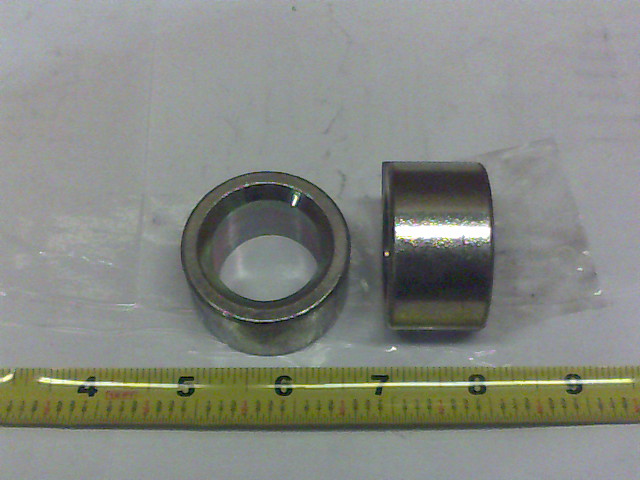

10 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1 Length Spacer Zinc Countersunk
$11.34
11 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
12 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard Engine
$220.06
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
