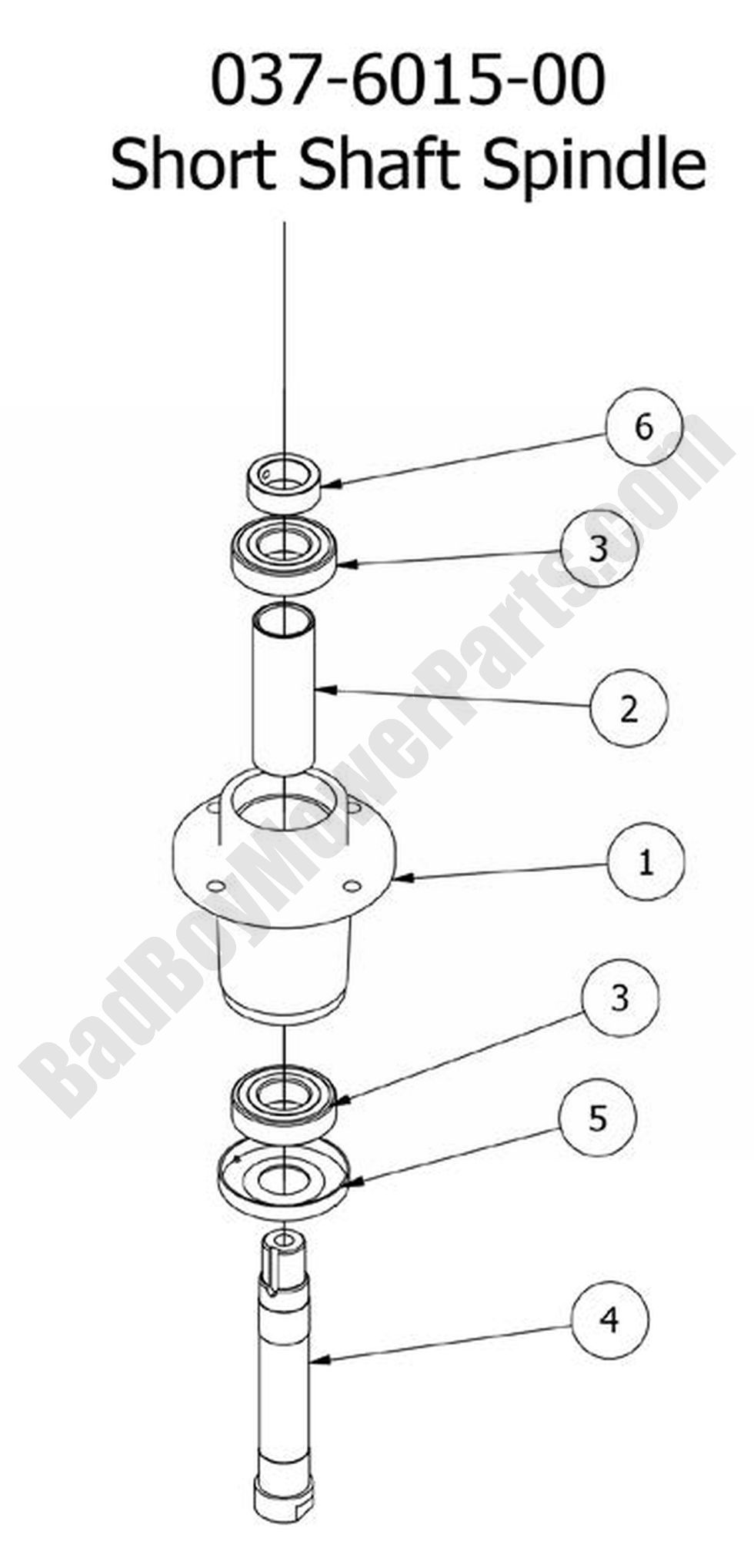

BadBoyMowerParts.com has the parts diagrams for the 2009 Pup and Lightning models. Find all of your Bad Boy mowers 2009 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 Pup and Lightning Spindle Assembly. If you are not able to find the Bad Boy parts for your 2009 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 037-6015-50 | 037-6015-50 - Spindle Assembly (See Models Used On For Detail) |
$213.99
|
||
2 | 037-8050-00 | 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle |
$8.69
|
||
3 | 037-6023-00 |
037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete) use part #037-6029-00 |
$42.58
|
||
4 | 037-6026-00 | 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft |
$83.77
|
||
5 | 037-8002-00 | 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50) |
$11.76
|
||
6 | 037-9050-00 | 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details) |
$7.28
|
