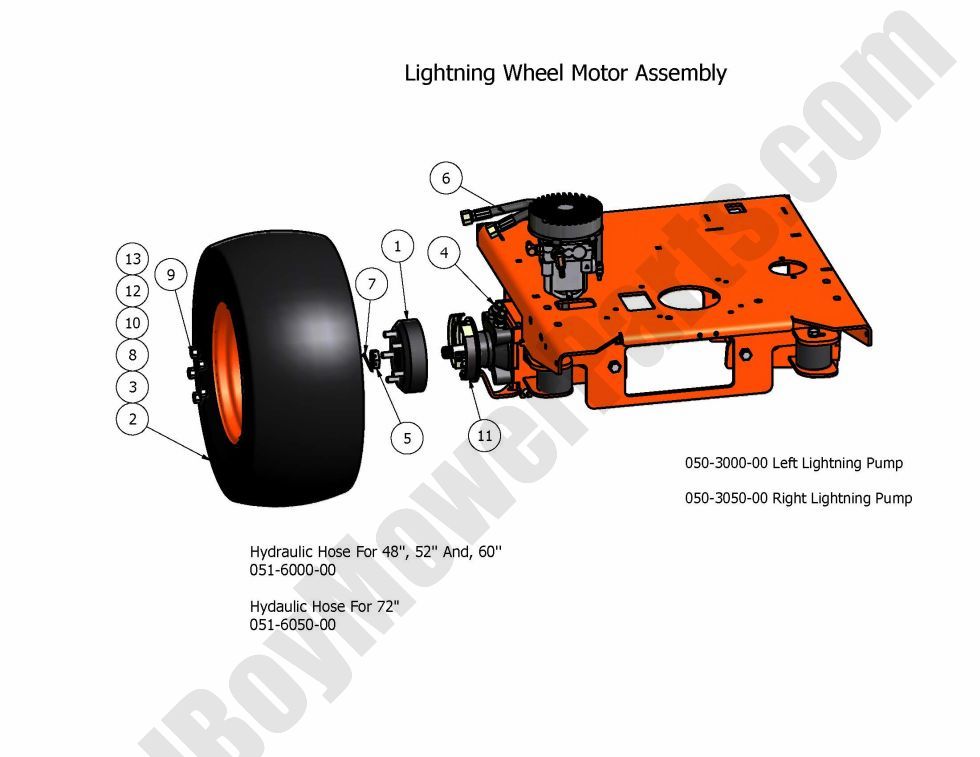

The Bad Boy Mower parts diagram for the 2009 Pup and Lightning Lightning Wheel Motor is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2009 Pup and Lightning models. Find all of your Bad Boy mowers 2009 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 Pup and Lightning Lightning Wheel Motor. If you are not able to find the Bad Boy parts for your 2009 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
2 | 022-5450-00 | 022-5450-00 - 24 x 12.00 - 12 Tire and Orange Wheel Assembly (One Tire & Rim Assembly) |
$342.99
|
||
3 | 022-7061-00 | 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only) |
$195.99
|
||
4 | 024-2050-00 | 024-2050-00 - 45 Degree Wheel Motor Fitting -6822 |
$17.02
|
||
5 | 013-7004-00 | 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut) |
$8.35
|
||
6 | 051-6000-00 | 051-6000-00 - 16" Hydraulic Hose Only |
$32.09
|
||
7 | 020-7022-00 | 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc |
$2.99
|
||
8 | 022-5349-00 | 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only) |
$246.99
|
||
9 | 013-3000-00 | 013-3000-00 - Acorn Lug Nut |
$3.29
|
||
10 | 022-5352-00 | 022-5352-00 - 23x10.50-12 Wheel Assembly (One Tire & Rim Assembly) |
$267.99
|
||
12 | 022-5351-00 | 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only) |
$192.99
|
||
13 | 022-7062-00 | 022-7062-00 - 12 Orange Wheel - 48 and 52 Pu p Models |
$113.62
|
