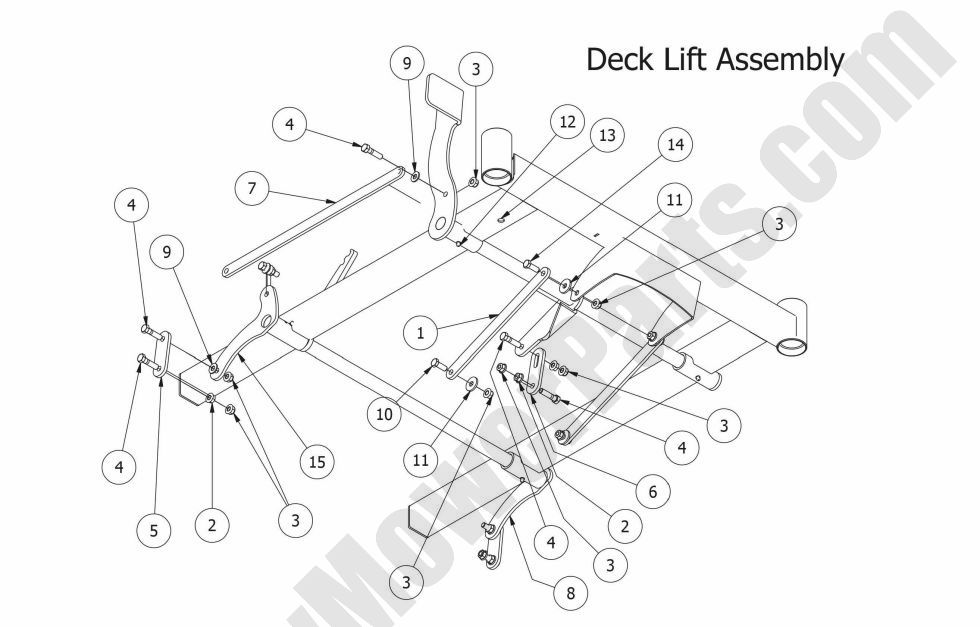

2015 MZ Magnum Deck Lift Assembly (48" Deck)

Deck Lift Assembly (48" Deck)

BadBoyMowerParts.com has the parts diagrams for the 2015 MZ Magnum models. Find all of your Bad Boy parts for your 2015 MZ Magnum parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 MZ Magnum Deck Lift Assembly (48" Deck). If you are not able to find the Bad Boy parts for your 2015 MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2015 MZ Magnum Deck Lift Assembly (48" Deck)
  Position Number SKU Product Title Price
1 031-1010-00 031-1010-00 - MZ Front Arm
$25.54
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
5 025-0010-00 025-0010-00 - 2010-2016 MZ/MZ Magnum Deck Spacer - Rear Hanger Tab
$18.94
6 025-0020-00 025-0020-00 - 42/48 Deck Spacer MZ (Front) 2014 54 MZ
$18.94
7 028-0050-00 028-0050-00 - MZ Deck Linkage Rod
$7.28
8 031-1030-00 031-1030-00 - MZ Deck Pivot Lever 2
$7.28
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
11 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
12 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting Short
$2.99
13 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
15 031-1020-00 031-1020-00 - MZ Deck Pivot Lever
$7.28
