2015 MZ Magnum Shroud Assembly

Shroud Assembly

BadBoyMowerParts.com has the parts diagrams for the 2015 MZ Magnum models. Find all of your Bad Boy parts for your 2015 MZ Magnum parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 MZ Magnum Shroud Assembly. If you are not able to find the Bad Boy parts for your 2015 MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2015 MZ Magnum Shroud Assembly
  Position Number SKU Product Title Price

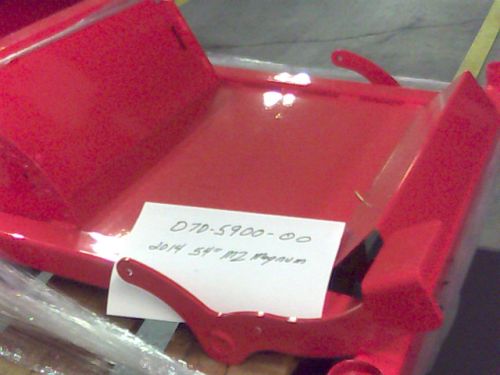

1 070-5900-00 070-5900-00 - 2014 - 2016 54" MZ Magnum Frame
$1563.84
2 039-1200-00 039-1200-00 - MZ Magnum Gas Tank Bracket Assembly
$26.74
3 201-2040-00 201-2040-00 - MZ Magnum Shroud Control Panel Support Assembly
$26.74
4 201-2030-00 201-2030-00 - MZ Magnum Shroud Storage Support Assembly
$37.44
5 079-0075-00 079-0075-00 - 2013-2016 MZ Magnum Control Panel
$16.04
6 055-3000-00 055-3000-00 - Throttle for MZ - 47"
$26.74
7 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
8 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
9 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
10 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
11 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
14 030-7045-00 030-7045-00 - 5/16-1 x 3/4 Hex Washer-Black
$2.99
15 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
16 074-4000-00 074-4000-00 - MZ Magnum Left Fender Shroud
$174.99
17 074-4001-00 074-4001-00 - MZ Magnum Right Fender Shroud
$174.99
18 066-0050-00 066-0050-00 - Fuel Cap MZ Magnum (See Models Used On For Details)
$28.39
19 067-0050-00 067-0050-00 - 2013-2016 Magnum- 2.5 Ga Tank Assy
$177.99
20 072-0075-00 072-0075-00 - MZ Magnum Tank Clamp-63164
$14.19
21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
22 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
23 013-0056-00 013-0056-00 - 10-24 "U" Nut
$2.99
24 042-9000-00 042-9000-00 - Ignition Key
$4.06
25 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
26 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
27 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
31 086-0075-00 086-0075-00 - 2010-2015 Wiring Harness - MZ Models
$283.89
32 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
