If your 2009 AOS mower is powered by a 27Hp Kawasaki engine, protecting it with a durable Back Panel is essential. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts to keep your mower in peak condition. Our Bad Boy Mower Part diagrams help you identify the exact replacement parts needed for seamless repairs. Whether your Bad Boy Lawn Mower Parts need upgrading or replacing, we provide everything required for maintenance. Shopping for Bad Boy Parts Online allows you to find and order parts quickly without the hassle of visiting multiple stores. Best of all, we offer Free Shipping On Orders Over $100, so you can save while keeping your mower well-maintained. Your 27Hp Kaw Back Panel is designed to protect key engine components, and replacing worn-out panels is crucial for longevity. Trust BadBoyMowerParts.com to deliver the best replacement parts with fast shipping and exceptional customer service to keep your mower running strong.

|

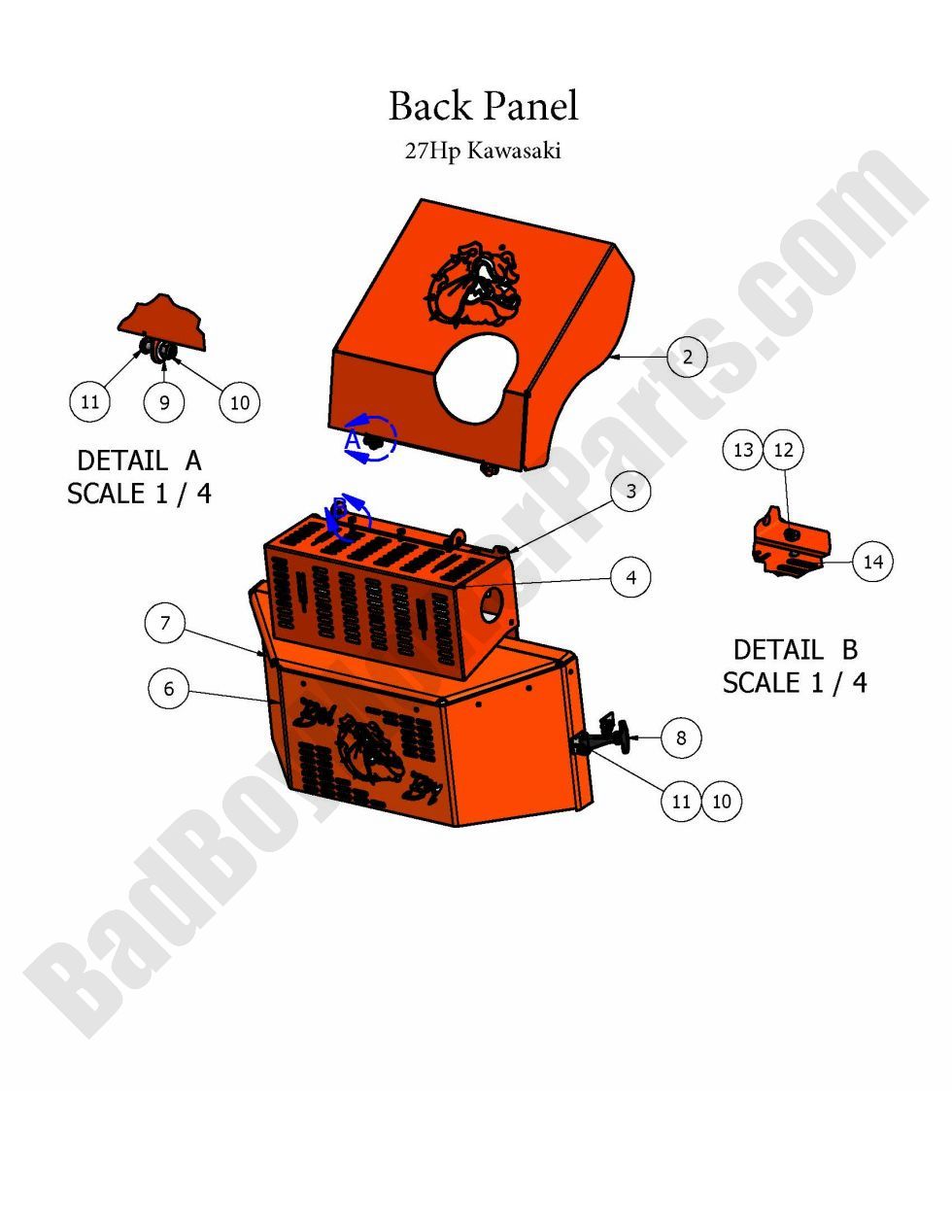

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 2 | 059-5204-00 | 059-5204-00 - 2007-2010 Donaldson Hood (27hp) |
$96.29
|
||
| 3 | 039-5951-00 | 039-5951-00 - Hood Holder Bracket 31/35 HP Briggs & Stratton |
$64.19
|
||
| 4 | 043-5941-00 | 043-5941-00 - 2007-2010 Muffler Guard (27hp) |
$33.81
|
||
| 6 | 014-5940-00 | 014-5940-00 - AOS Back Pump Cover |
$139.99
|
||
| 7 | 014-5912-00 | 014-5912-00 - AOS Back Cover Top 35BS |
$26.75
|
||
| 8 | 052-5020-00 | 052-5020-00 - Rubber Pump Cover Latch 2011 and below-Diesel and AOS |
$17.11
|
||
| 9 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
| 10 | 013-5019-00 | 013-5019-00 - 10-24 Nylon Insert Locknut Zinc |
$2.99
|
||
| 11 | 018-8056-00 | 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8 |
$2.99
|
||
| 12 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 Hex Bolt |
$2.99
|
||
| 13 | 019-4008-00 | 019-4008-00 - 1/4 Lockwasher Zinc |
$2.99
|
||
| 14 | 013-8039-00 | 013-8039-00 - 1/4-20 Hex Nut |
$2.99
|
