The 2009 AOS Clutch Stack is a vital part of your mower’s transmission system, ensuring smooth engagement and optimal performance. At BadBoyMowerParts.com, we carry high-quality Bad Boy Mower Parts to keep your mower operating at peak efficiency. Our Bad Boy Mower Part diagrams make it simple to find the right clutch stack components, preventing unnecessary downtime. Whether you need a complete clutch replacement or just individual Bad Boy Lawn Mower Parts, we have everything required for proper maintenance. Ordering Bad Boy Parts Online allows you to quickly find and receive the right parts without hassle. Plus, with Free Shipping On Orders Over $100, maintaining your mower is more affordable than ever. A well-maintained Clutch Stack prevents transmission issues, ensuring smooth operation and extended mower life. Trust BadBoyMowerParts.com to provide durable replacement parts, fast shipping, and expert customer support to help you get the most out of your 2009 AOS mower.

|

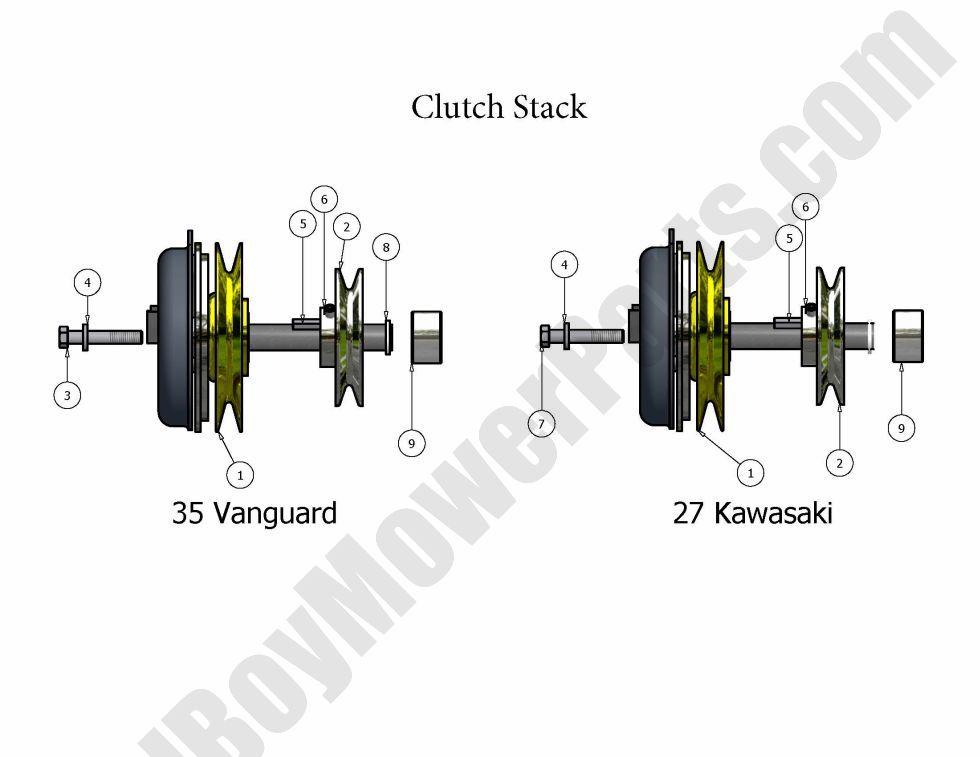

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 070-5035-00 | 070-5035-00 - PTO Clutch - AOS Gas Models |
$278.64
|
||
| 2 | 033-5034-00 | 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details) |
$35.48
|
||
| 3 | 018-5300-00 | 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt |
$2.99
|
||
| 4 | 019-8053-00 | 019-8053-00 - 7/16 Lockwasher zinc |
$3.29
|
||
| 5 | 042-6030-00 | 042-6030-00 - 1/4" x 1" Square Key |
$4.81
|
||
| 6 | 030-6029-00 | 030-6029-00 - 3/8-16x1/2 Set Screw |
$2.99
|
||
| 7 | 018-5028-00 | 018-5028-00 - M10 X 1.5 X 60MM |
$2.99
|
||
| 8 | 019-6029-00 | 019-6029-00 - 1.140x1.750x.132 Flat Washer |
$2.99
|
||
| 9 | 025-5032-00 | 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer |
$12.83
|
