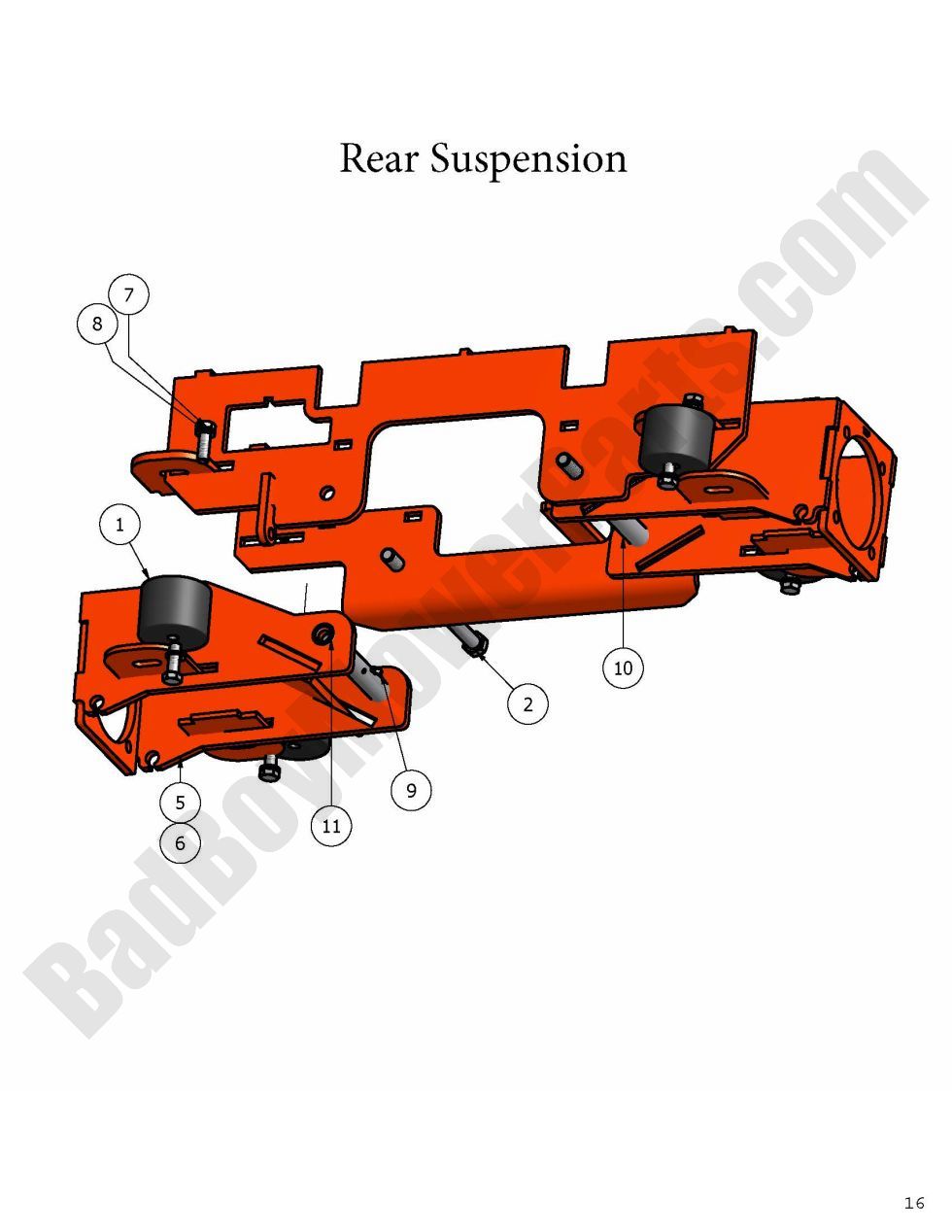

The 2009 AOS Rear Suspension plays a key role in providing a smooth and comfortable ride, making it essential to maintain with high-quality Bad Boy Mower Parts. At BadBoyMowerParts.com, we offer durable suspension components designed to improve ride quality and performance. Our Bad Boy Mower Part diagrams help you quickly identify and order the correct parts for seamless installation. Whether your suspension system needs new shocks, bushings, or brackets, our selection of Bad Boy Lawn Mower Parts ensures the perfect fit. Ordering Bad Boy Parts Online is simple and efficient, giving you access to everything needed for repairs. Plus, with Free Shipping On Orders Over $100, keeping your mower in top condition has never been more affordable. A properly functioning Rear Suspension enhances stability and reduces strain on other components. Rely on BadBoyMowerParts.com for expert service, high-quality parts, and fast shipping to keep your 2009 AOS mower operating at peak performance.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 032-9000-00 | 032-9000-00 - Isolator - Green Dot |
$70.97
|
||
| 2 | 018-2051-00 | 018-2051-00 - 5/8 x 10 Bolt Grade 8 |
$15.61
|
||
| 3 | 013-5301-00 | 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc |
$2.99
|
||
| 4 | 013-5020-00 | 013-5020-00 - 5/8-11 Hex Nuts Zinc |
$3.51
|
||
| 5 | 070-8000-00 | 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details) |
$291.91
|
||
| 7 | 018-5006-00 | 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details) |
$2.99
|
||
| 8 | 019-5007-00 | 019-5007-00 - 1/2 Lockwasher Zinc |
$2.99
|
||
| 9 | 024-6034-00 | 024-6034-00 - 1/4 Drive-in Grease Fitting |
$2.99
|
||

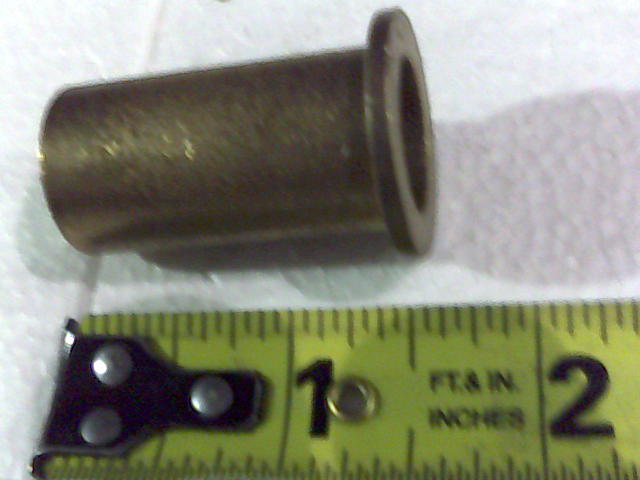

| 10 | 032-5051-00 | 032-5051-00 - Bronze Bushing - SF2024-24 Wheel Motor Cage |
$4.37
|
||
| 11 | 032-6033-00 | 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms |
$3.84
|
