2012 MZ 42" & 48" Chute Assembly

42" & 48" Chute Assembly

The Bad Boy Mower parts diagram for the 2012 MZ 42" & 48" Chute Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 MZ models. Find all of your Bad Boy mowers 2012 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 MZ 42" & 48" Chute Assembly. If you are not able to find the Bad Boy parts for your 2012 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

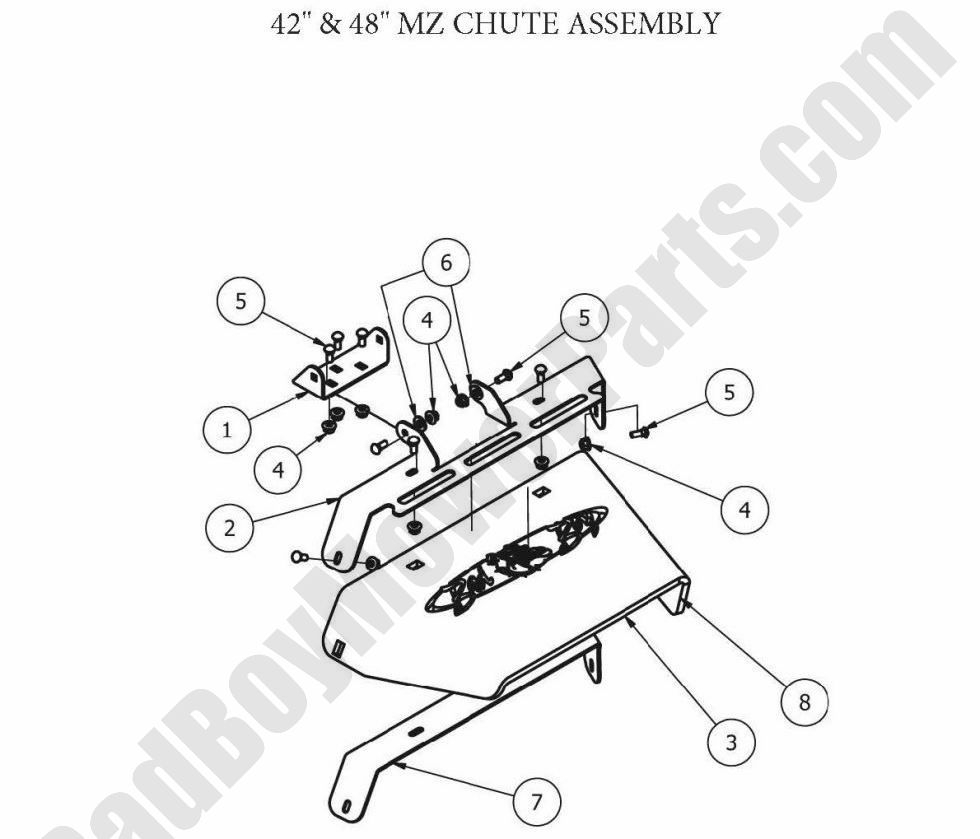

2012 MZ 42" & 48" Chute Assembly
  Position Number SKU Product Title Price
1 206-6020-00 206-6020-00 - Chute Hanger
$28.39
2 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
3 210-6015-00 210-6015-00 - Discharge Chute Rubber (See Models Used On For Detail)
$53.49
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99

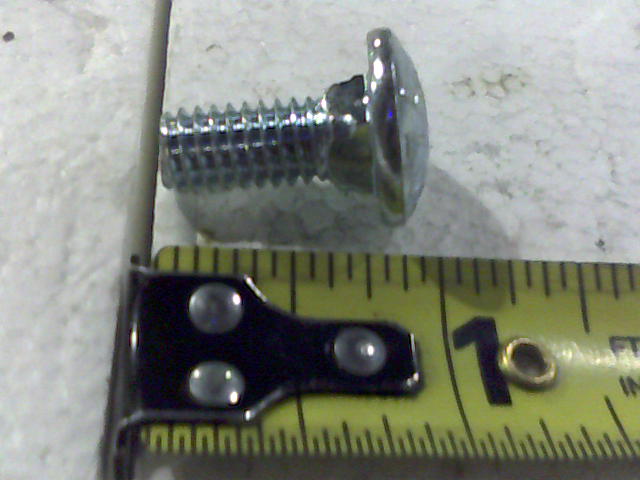

5 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 039-4890-00 039-4890-00 - Discharge Chute Bracket 48 MZ (Lower)
$35.43
8 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$156.17
