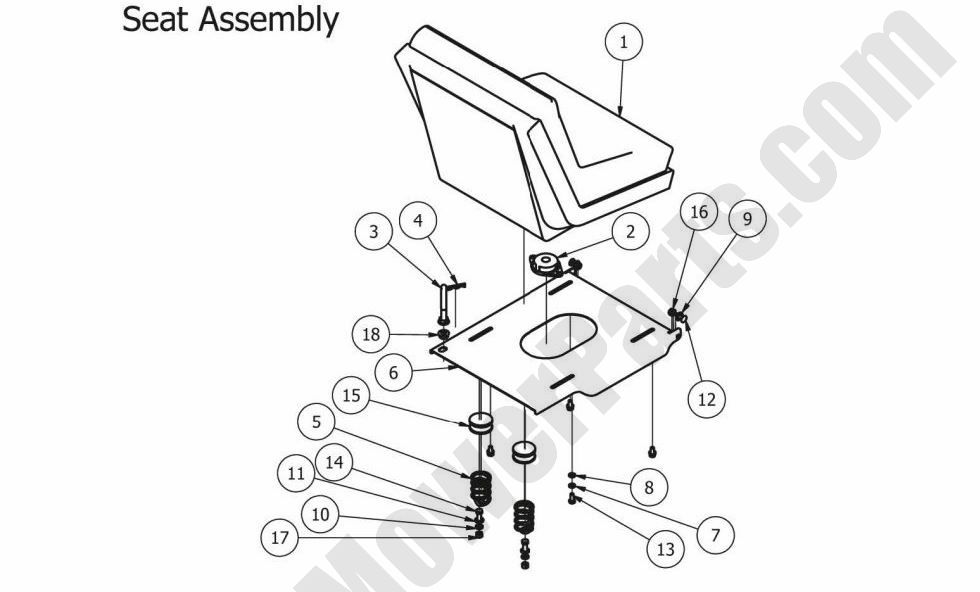

2012 MZ Seat Assembly

Seat Assembly

The Bad Boy Mower parts diagram for the 2012 MZ Seat Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 MZ models. Find all of your Bad Boy mowers 2012 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 MZ Seat Assembly. If you are not able to find the Bad Boy parts for your 2012 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 MZ Seat Assembly
  Position Number SKU Product Title Price
1 071-8095-00 071-8095-00 - MZ Seat-no Arms/Slide OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$460.99
2 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
3 044-4000-00 044-4000-00 - Pin (See Models Used On)
$7.25
4 040-6060-00 040-6060-00 - Seat Latch Pin
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6 026-2010-00 026-2010-00 - MZ Seat Plate
$99.32
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
15 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
18 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
