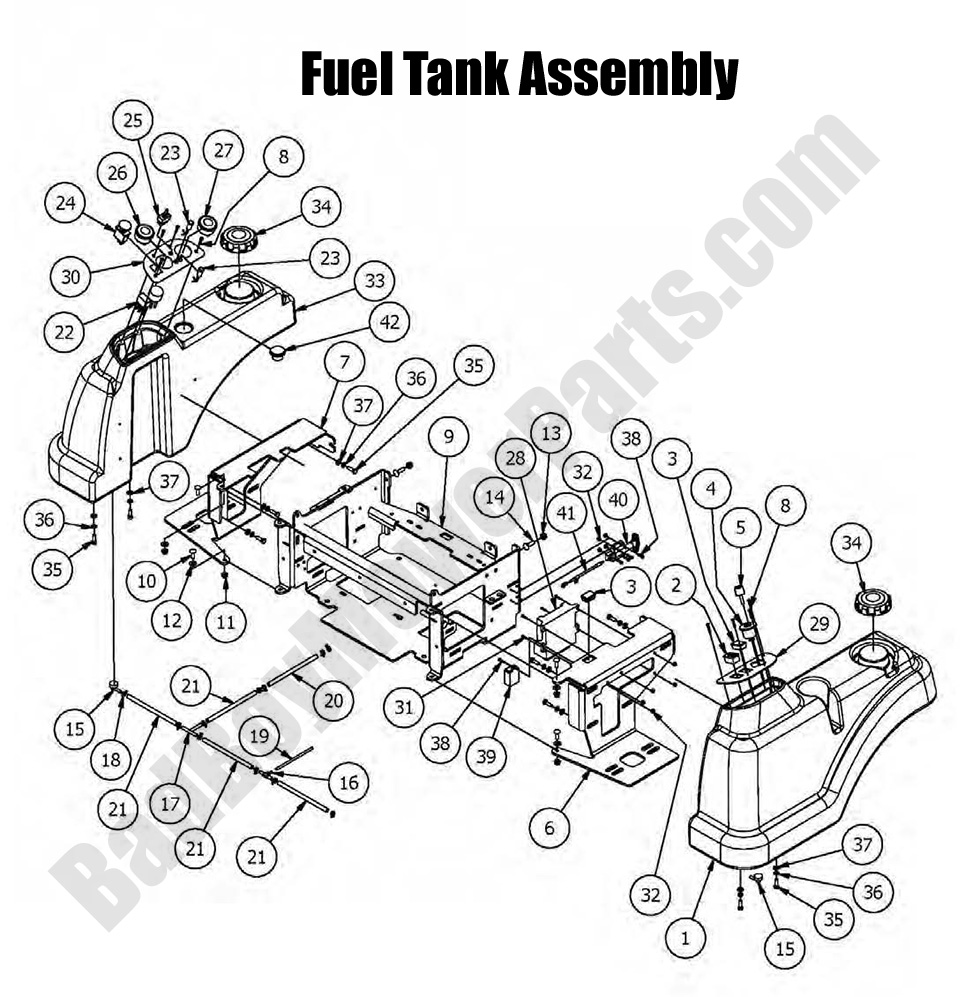

2016 Diesel 1100cc Fuel Tank Assembly

Fuel Tank Assembly

You have selected the Fuel Tank Assembly diagram for your 2016 Bad Boy Diesel 1100CC. BadBoyMowerParts.com has the diagrams you need for the 2016 Diesel 1100CC models. Find all of your Bad Boy parts for your 2016 Diesel 1100CC parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Diesel 1100CC Fuel Tank Assembly . If you are not able to find the Bad Boy parts for your 2016 Diesel 1100CC please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc Fuel Tank Assembly
  Position Number SKU Product Title Price
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$229.99
2 083-4014-00 083-4014-00 - Hourmeter
$62.40
3 018-1040-00 018-1040-00 - Light Plug
$2.99
4 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
5 042-9000-00 042-9000-00 - Ignition Key
$4.06
6 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
7 031-2011-00 031-2011-00 - 72 Tank Support- Right
$59.91

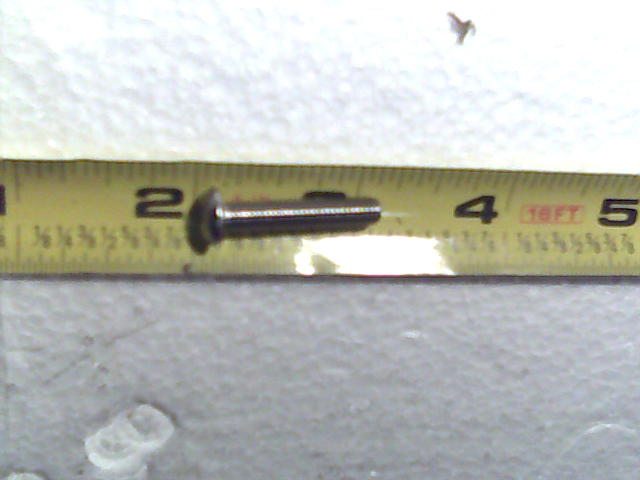

8 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
9 080-6010-00 080-6010-00 - Seat Frame (See Models Used On For Details)
$427.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99

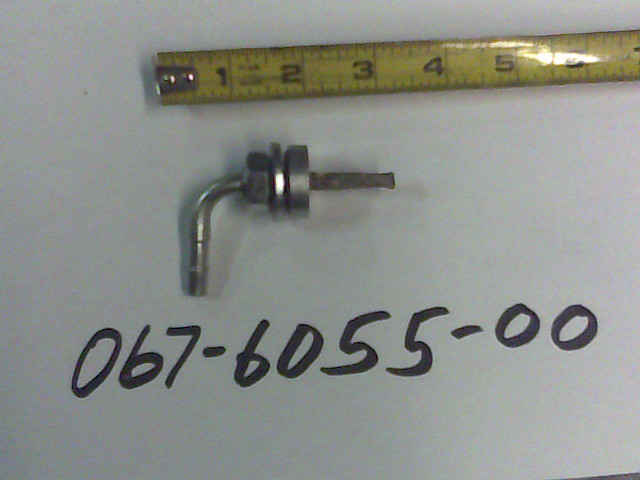

15 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
16 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99

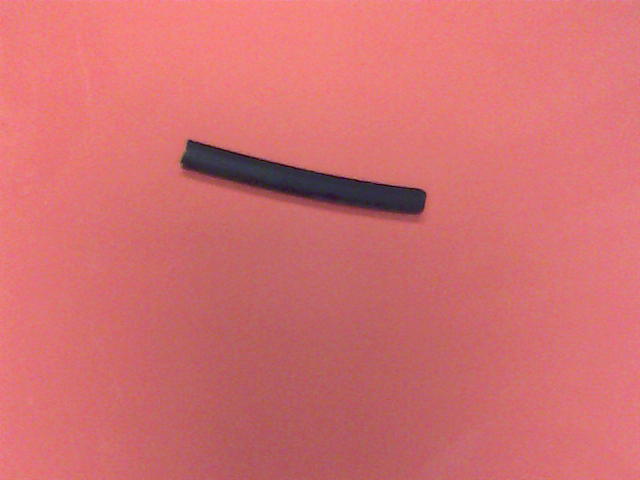

19 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
20 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$4.81
21 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
22 086-0247-00 086-0247-00 - Harness for 24.7 Cat Diesel
$624.70
23 089-1000-00 089-1000-00 - Oil Light
$12.63
24 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
25 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
26 086-7001-00 086-7001-00 - 2" Water Temperature Gauge, 2012-2019 Diesel Units
$107.76

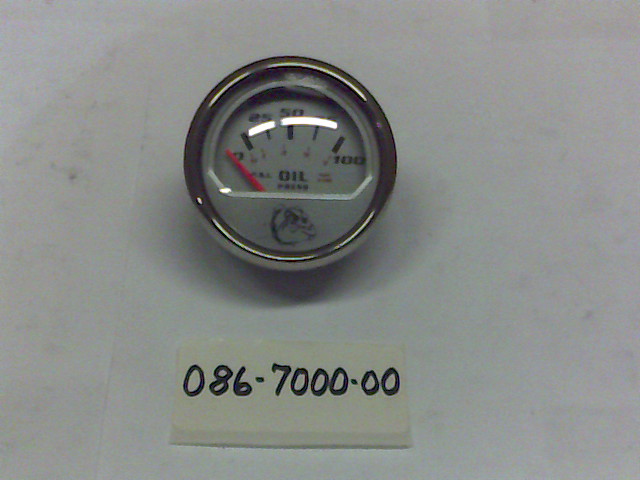

27 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge
$107.76
29 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
30 079-3406-00 079-3406-00 - Left Diesel Control Panel (See Models Used On For Details)
$17.11
31 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
32 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
33 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$229.99

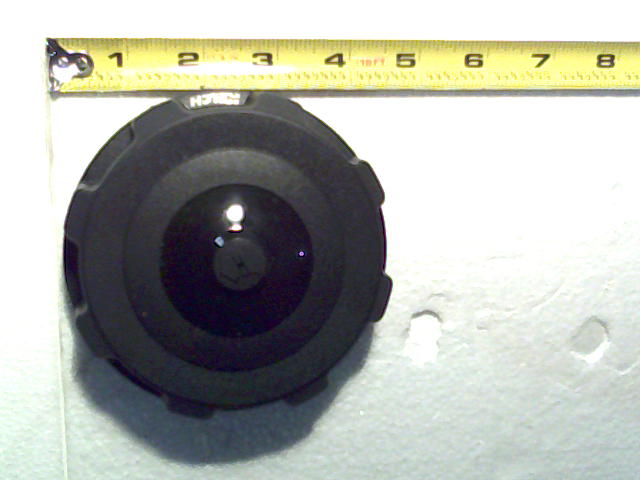

34 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
35 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
36 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
37 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
38 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
39 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$534.99

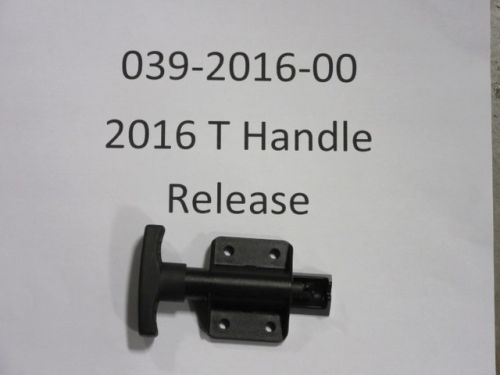

40 039-2016-00 039-2016-00 - 2016 T Handle Seat Release
$28.32
41 064-0002-00 064-0002-00 - T-Handle Seat Release Cable
$23.53
42 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
