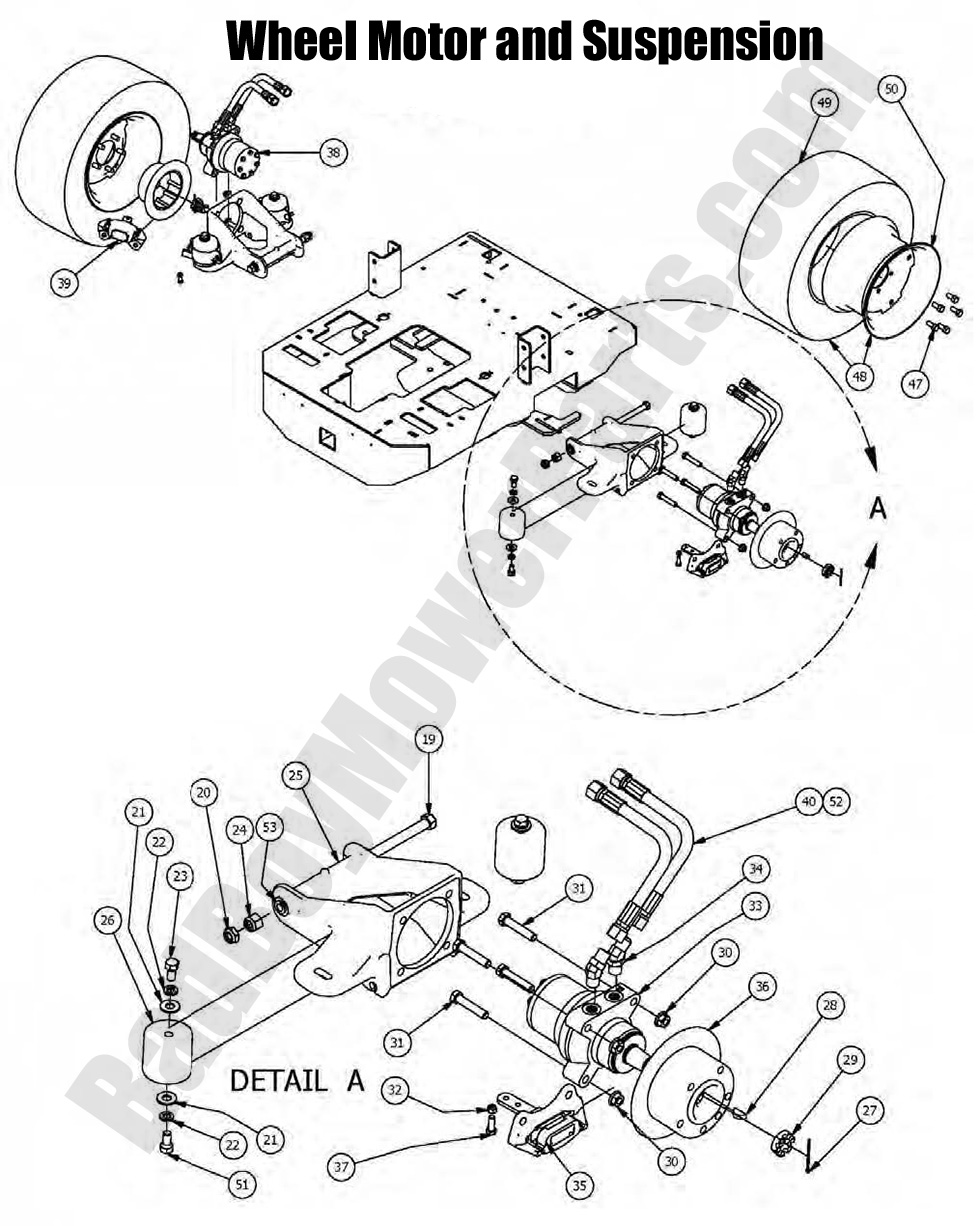

2016 Diesel 1100cc Suspension & Wheel Motor Assembly

Suspension & Wheel Motor Assembly

You have selected the Suspension & Wheel Motor Assembly diagram for your 2016 Bad Boy Diesel 1100CC. BadBoyMowerParts.com has the diagrams you need for the 2016 Diesel 1100CC models. Find all of your Bad Boy parts for your 2016 Diesel 1100CC parts here. We are your Bad Boy mower parts source. The Bad Boy parts diagram below is for the 2016 Diesel 1100CC Suspension & Wheel Motor Assembly . If you are not able to find the Bad Boy parts for your 2016 Diesel 1100CC please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc Suspension & Wheel Motor Assembly
  Position Number SKU Product Title Price
19 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
20 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
21 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
25 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
26 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
27 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
28 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
29 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
30 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
31 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
32 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
33 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right AOS/Diesel
$640.93

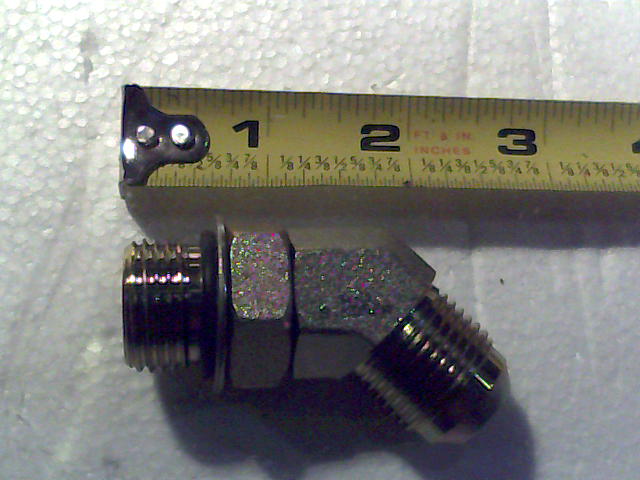

34 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting -6822
$17.02
35 092-7000-00 092-7000-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Right Brake Caliper w/bracket
$99.32
36 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2018 Diesel/Outlaw XP, 2019-2022 Renegade/Rogue Brake Disc 8
$127.72
37 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99

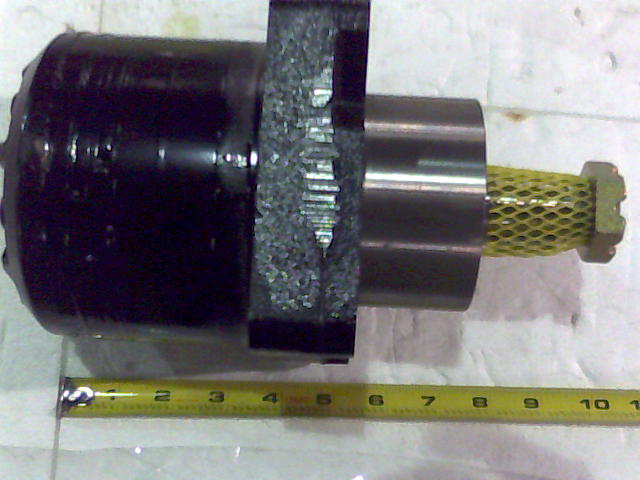

38 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor - Left AOS/Diesel
$640.93
39 092-7001-00 092-7001-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
40 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$156.17
47 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99

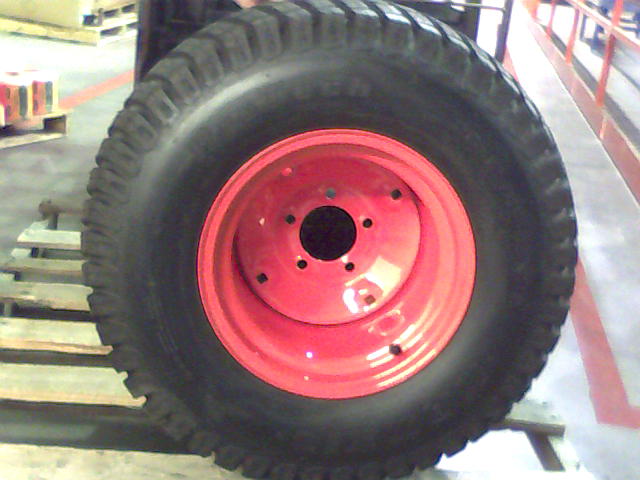

48 022-7031-00 022-7031-00 - 26 x 12.00 - 12 Tire and Orang e Wheel Assembly
$458.99

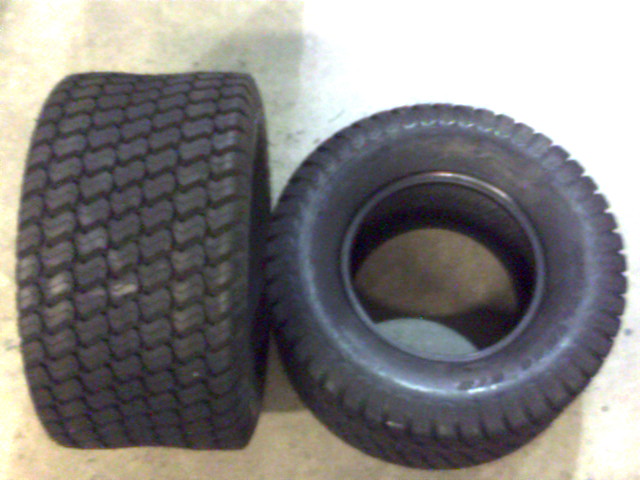

49 022-7032-00 022-7032-00 - 26 x 12.00 - 12 Tire (One Tire Only)
$331.99

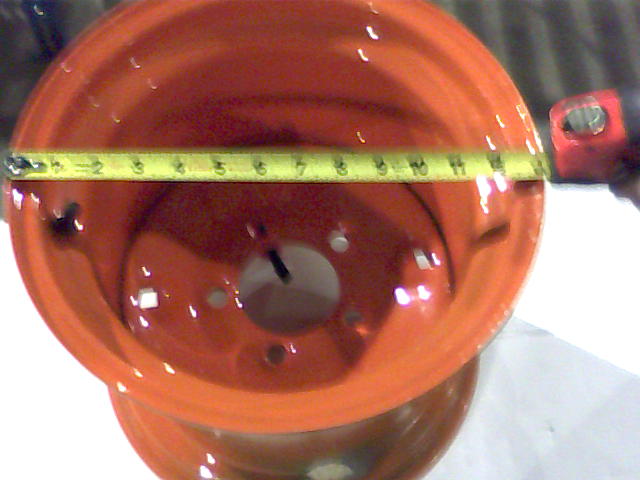

50 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS Rear
$235.99
51 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99

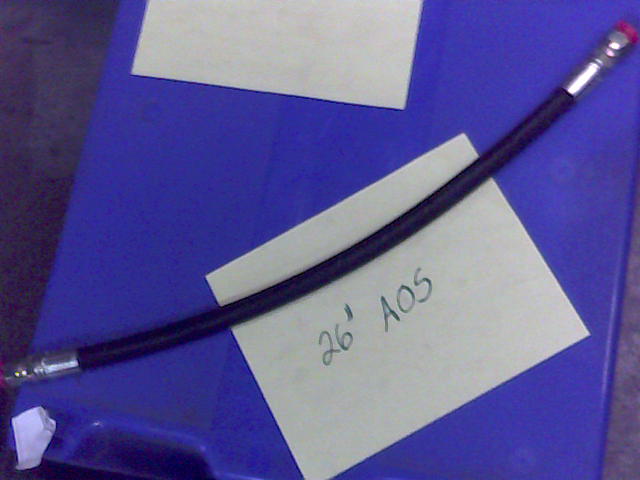

52 051-6085-00 051-6085-00 - 26 inch Hose Only
$40.53
53 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
