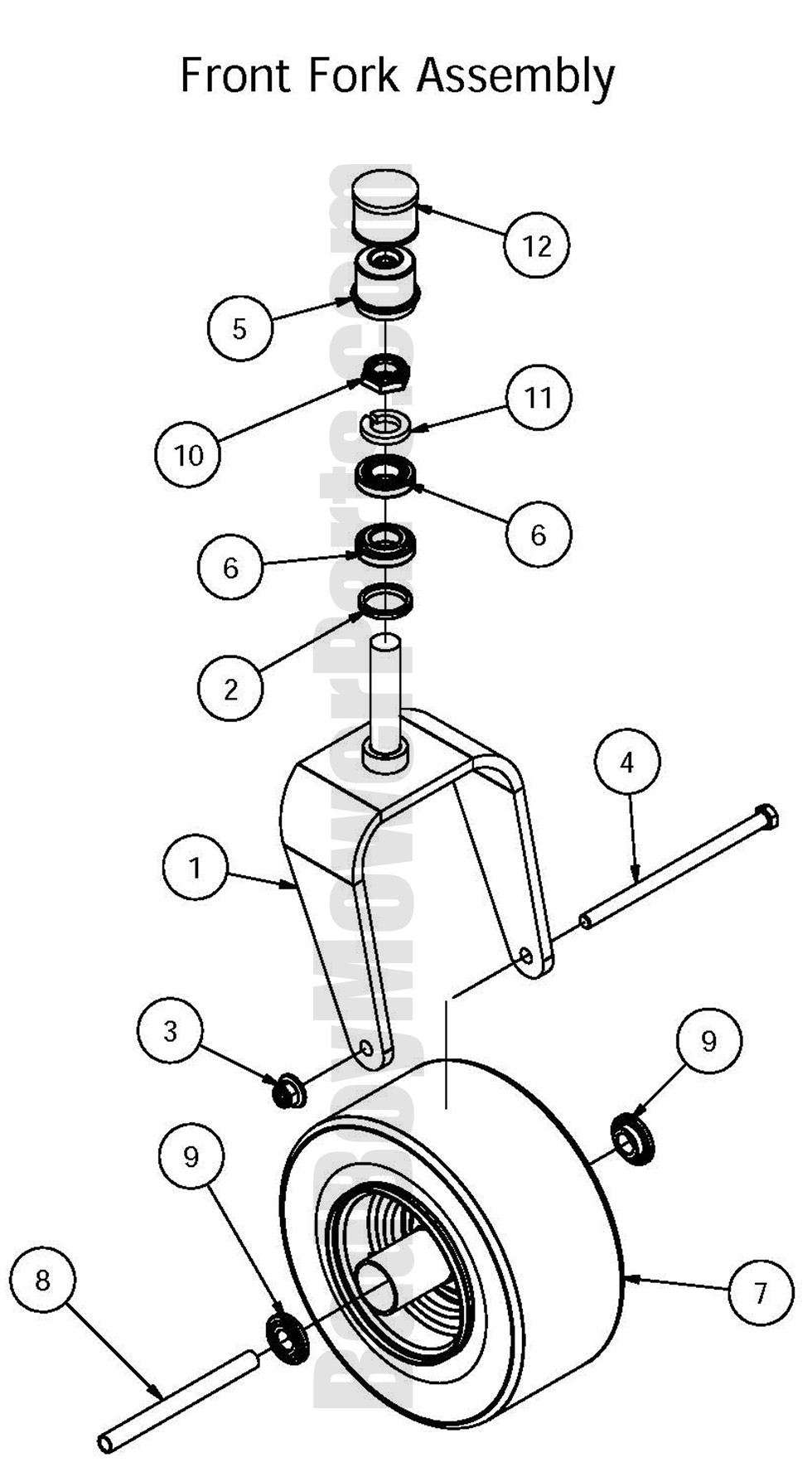

2016 Stand-On Front Fork Assembly

Front Fork Assembly

You have selected the Front Fork Assembly diagram for your 2016 Bad Boy Stand-On. BadBoyMowerParts.com has the diagrams you need for the 2016 Stand-On models. Find all of your Bad Boy parts for your 2016 Stand-On parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Stand-On Front Fork Assembly . If you are not able to find the Bad Boy parts for your 2016 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Stand-On Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
2 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
5 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
6A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$2.99
6B 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
6 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
7 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$85.59
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
10 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
11 019-3000-00 019-3000-00 - 1 Lock Washer
$3.29
12 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
