2016 Stand-On Podium Assembly

Podium Assembly

You have selected the Podium Assembly diagram for your 2016 Bad Boy Stand-On. BadBoyMowerParts.com has the diagrams you need for the 2016 Stand-On models. Find all of your Bad Boy parts for your 2016 Stand-On parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Stand-On Podium Assembly . If you are not able to find the Bad Boy parts for your 2016 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

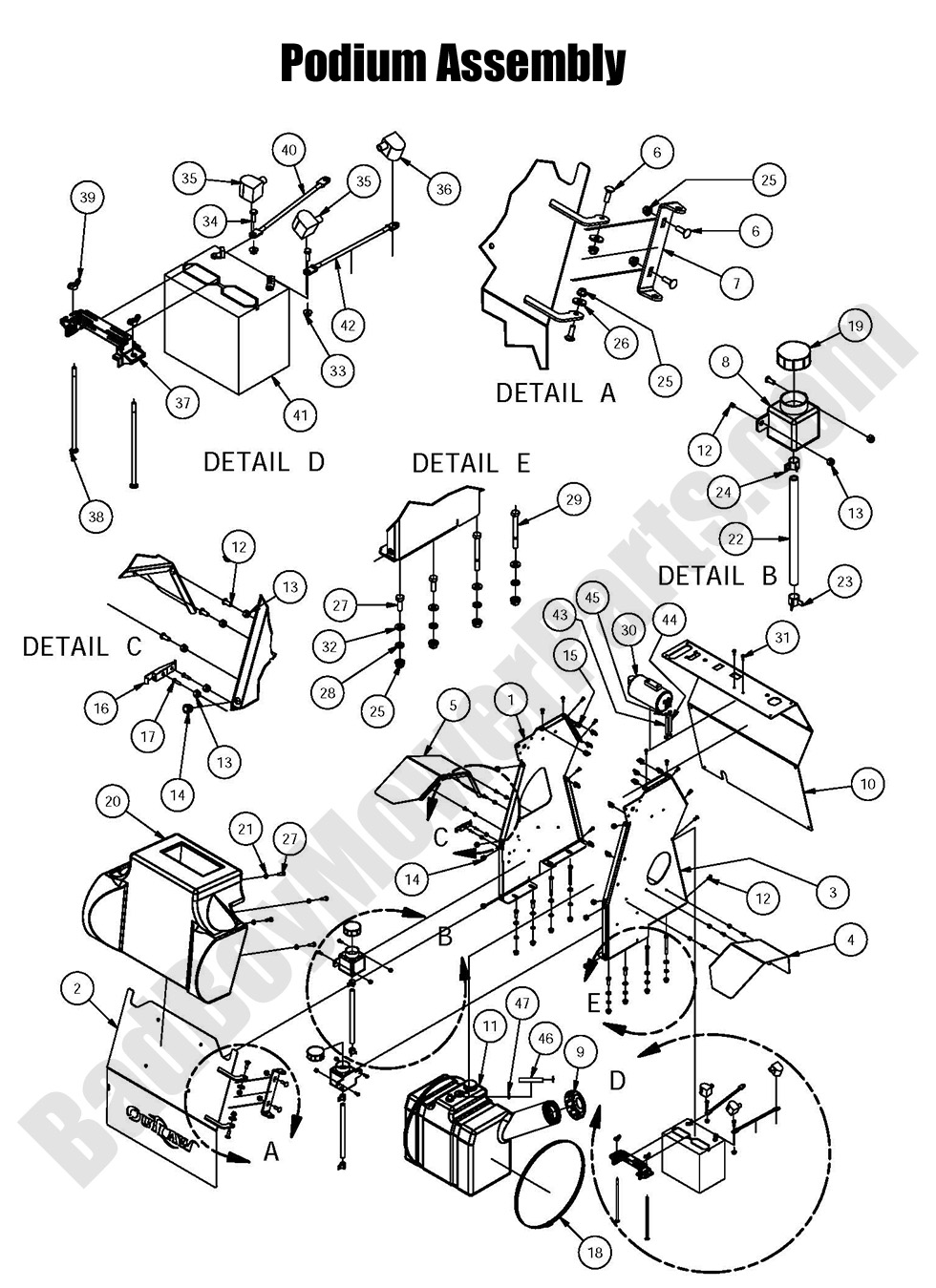

2016 Stand-On Podium Assembly
  Position Number SKU Product Title Price
6 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
7 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
8 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
9 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
11A 067-4095-00 067-4095-00 - Fuel Gauge for 067-0030-00
$50.28
11 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$256.99
12 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
13 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
14 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
15 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
16 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
17 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
18 072-0050-00 072-0050-00 - Fuel Tank Clamp - Stand On & Walk Behind
$8.01
19 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
20 071-5075-00 071-5075-00 - 2015 Stand On Seat Cushion
$353.62
21 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
22 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
23 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
24 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
25 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
28 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
29 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
30 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
31 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
32 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
33 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
35 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
36 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
37 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
38 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
39 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
40 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
42 064-5300-00 064-5300-00 - 24 Red Battery Cable
$21.85
43 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
44 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
45 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
46 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
47 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
