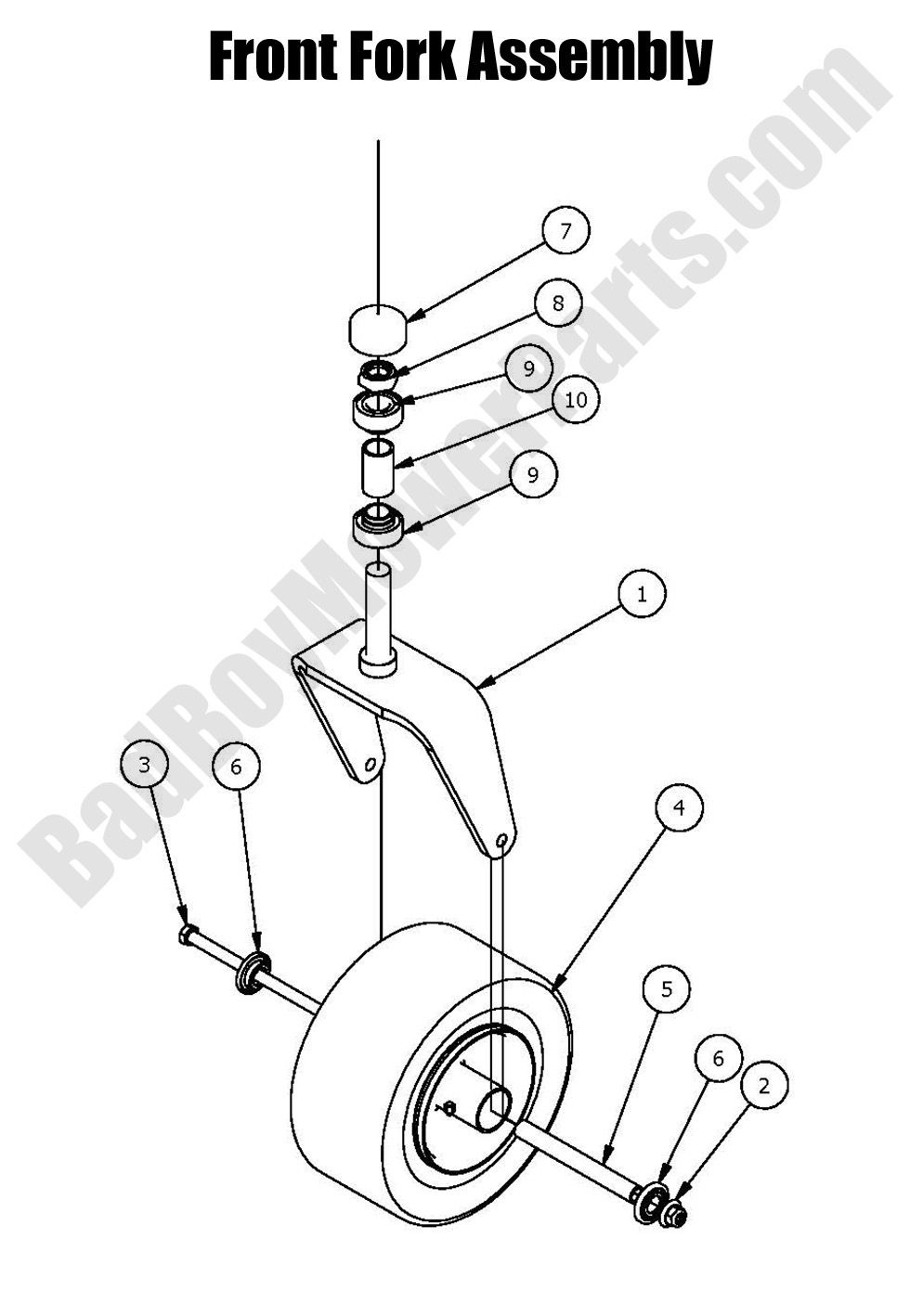

2016 ZT Elite Front Fork Assembly

Front Fork Assembly

You have selected the Front Fork Assembly diagram for your 2016 Bad Boy ZT Elite. BadBoyMowerParts.com has the diagrams you need for the 2016 ZT Elite models. Find all of your Bad Boy parts for your 2016 ZT Elite parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 ZT Elite Front Fork Assembly . If you are not able to find the Bad Boy parts for your 2016 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 ZT Elite Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
4 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$85.59
5 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
6 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
7 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
8 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
9 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
10 025-0004-00 025-0004-00 - ZT/CZT Caster Bearing Spacer
$12.77
