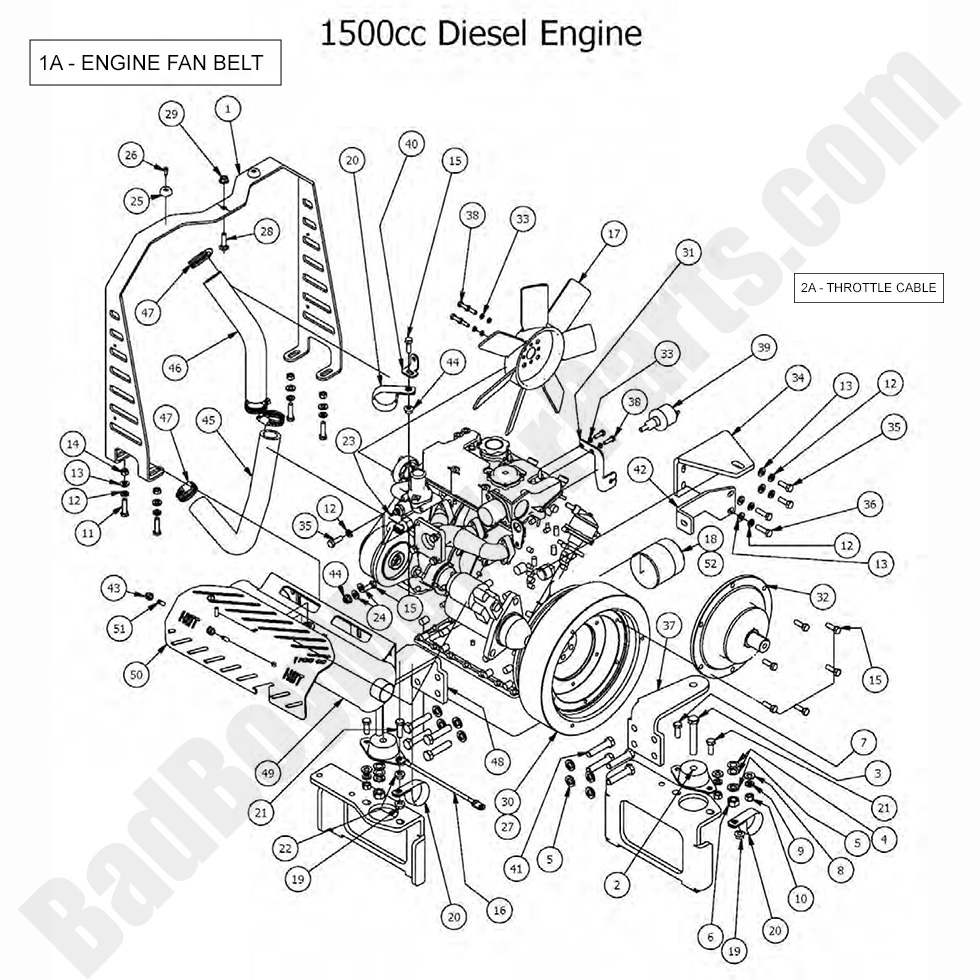

2017 Diesel - 1500cc 1500cc Diesel Engine

1500cc Diesel Engine

The Bad Boy Mower 1500cc Diesel Engine for the 2017 Diesel - 1500cc is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Diesel - 1500cc models as well. Find all of your Bad Boy mowers 2017 Diesel - 1500cc parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Diesel - 1500cc please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Diesel - 1500cc 1500cc Diesel Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
1 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
2 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
3 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
4 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
7 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
8 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
15 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 015-6050-00 015-6050-00 - Engine Fan - Diesel
$217.09
18 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$31.02
19 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
20 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
21 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
22 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 086-7003-00 086-7003-00 - Temperature Sender- 2012 Gauge
$31.17
24 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
25 029-4010-00 029-4010-00 - Button Bumper
$2.99
26 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
31 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
32 017-3000-00 017-3000-00 - Stub shaft- Diesel
$245.99
33 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
34 201-8005-00 201-8005-00 - Air Cleaner Support Diesel
$42.58
35 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
36 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
37 201-8008-00 201-8008-00 - Diesel Motor Side Support Right
$31.22
38 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
39 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$106.99
40 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
41 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
42 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
43 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
44 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
45 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
46 051-3000-00 051-3000-00 - Top Radiator Hose - Diesel
$22.03
47 072-2003-00 072-2003-00 - 1 1/8 Hose Clamp
$5.82
48 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left
$31.22
49 015-0010-00 015-0010-00 - 28/35hp Caterpillar Muffler
$241.35
50 043-1000-00 043-1000-00 - 2010-2017 Diesel Muffler Guard (35hp)
$22.71
51 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhau
$2.99
52 063-2010-01 063-2010-01 - Perkins Oil Filter
$29.37
