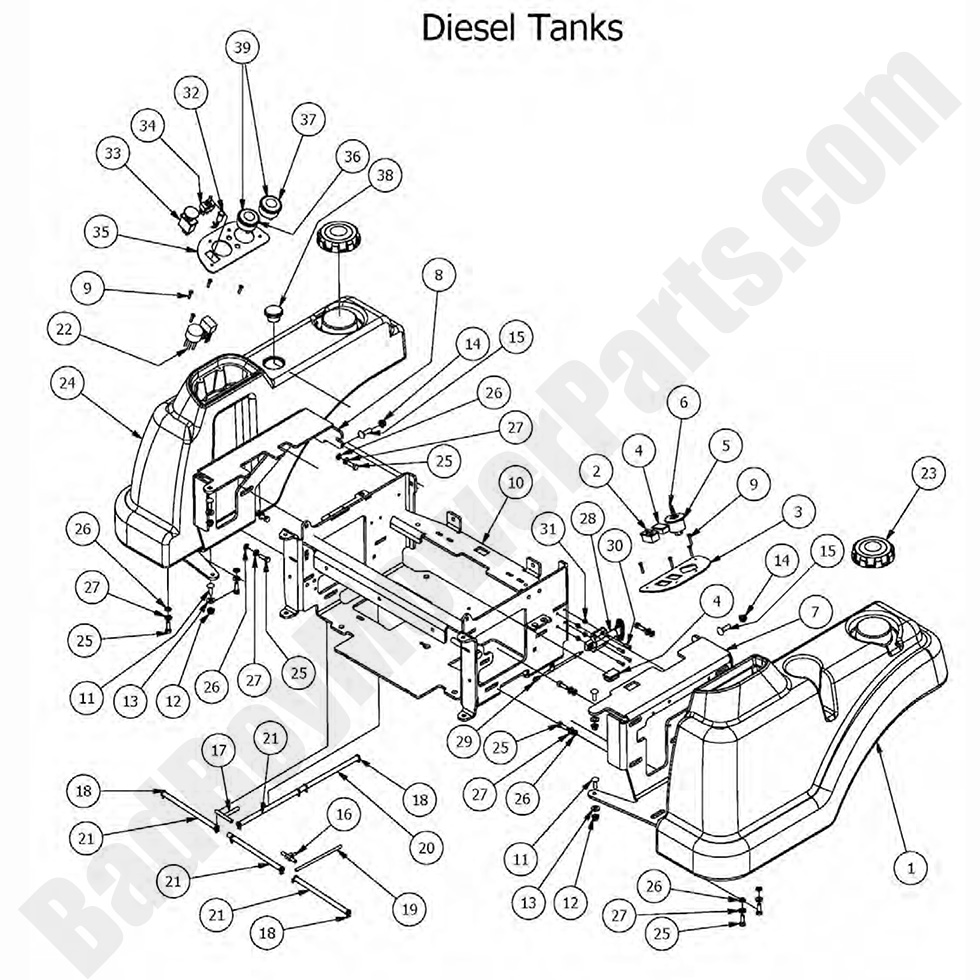

2017 Diesel - 1500cc Fuel Tanks

Fuel Tanks

The Bad Boy Mower Fuel Tanks for the 2017 Diesel - 1500cc is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Diesel - 1500cc models as well. Find all of your Bad Boy mowers 2017 Diesel - 1500cc parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Diesel - 1500cc please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Diesel - 1500cc Fuel Tanks
  Position Number SKU Product Title Price
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$229.99
2 083-4014-00 083-4014-00 - Hourmeter
$62.40
3 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
4 018-1040-00 018-1040-00 - Light Plug
$2.99
5 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
6 042-9000-00 042-9000-00 - Ignition Key
$4.06
7 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
8 031-2011-00 031-2011-00 - 72 Tank Support- Right
$59.91
9 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
10 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$427.99
11 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
19 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
20 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$4.81
21 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
22 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$495.52
23 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
24 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$229.99
25 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
26 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
27 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
28 039-2016-00 039-2016-00 - 2016 T Handle Seat Release
$28.32
29 064-0002-00 064-0002-00 - T-Handle Seat Release Cable
$23.53
30 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
31 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
32 089-1000-00 089-1000-00 - Oil Light
$12.63
33 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
34 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
35 079-3405-00 079-3405-00 - Right Diesel Control Panel(See Models Used On For Details)
$17.11
36 086-7001-00 086-7001-00 - 2" Water Temperature Gauge, 2012-2019 Diesel Units
$107.76
37 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge
$107.76
38 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
39 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
