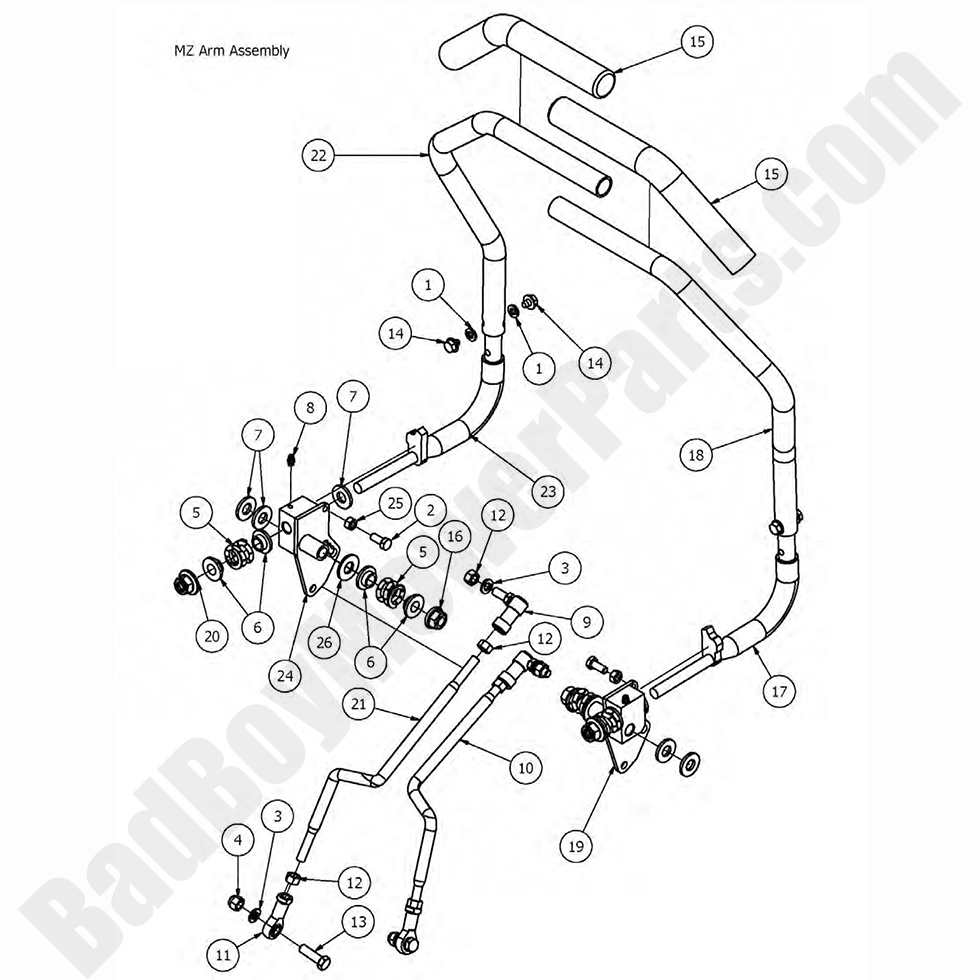

2017 MZ & MZ Magnum Drive Arm Assembly

Drive Arm Assembly

The Bad Boy Mower Drive Arm Assembly for the 2017 MZ & MZ Magnum is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 MZ & MZ Magnum models as well. Find all of your Bad Boy mowers 2017 MZ & MZ Magnum parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 MZ & MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 MZ & MZ Magnum Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
3 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
4 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
5 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
6 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
7 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
8 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
9 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
10 035-5450-00 035-5450-00 - Right Push Rod (See Models Used On For Details)
$33.95
11 048-3000-00 048-3000-00 - Spherical Rod End-Outlaw Only (See Models Used On For Details)
$14.19
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
14 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
15 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
16 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
17 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$85.17
18 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
19 031-0018-98 031-0018-98 - 2017-2022 Right Drive Lever Housing (See Models Used On For Details)
$23.42
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 035-5451-00 035-5451-00 - Left Push Rod (See Models Used On For Details)
$42.58
22 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
23 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
24 031-0017-98 031-0017-98 - 2017-2022 Left Drive Lever Housing (See Models Used On For Details)
$31.23
25 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
26 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
