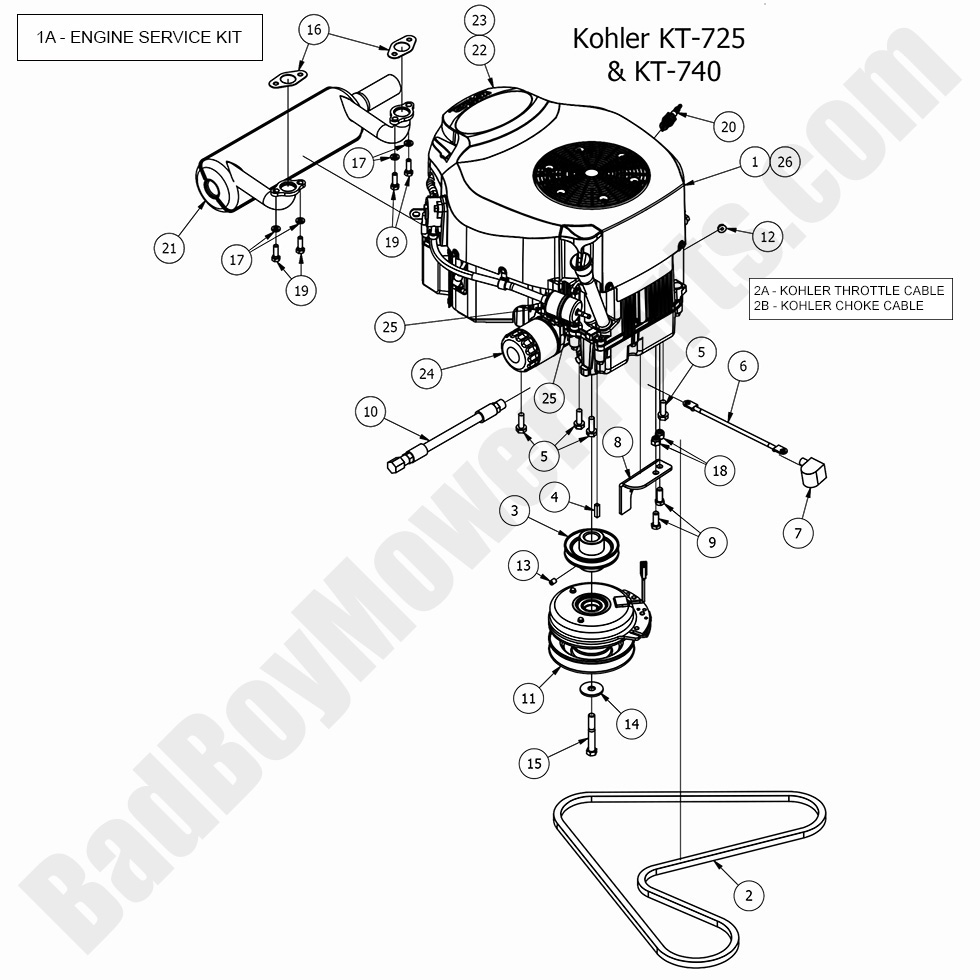

2017 MZ & MZ Magnum Engine - Kohler KT725 & KT740

Engine - Kohler KT725 & KT740

The Bad Boy Mower Engine - Kohler KT725 & KT740 for the 2017 MZ & MZ Magnum is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 MZ & MZ Magnum models as well. Find all of your Bad Boy mowers 2017 MZ & MZ Magnum parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 MZ & MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 MZ & MZ Magnum Engine - Kohler KT725 & KT740
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1 015-2014-00 015-2014-00 - 25hp Kohler 2014-2022 MZ, 2020-2022 ZT Avenger-KT740-3048
$2031.99
2 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
3 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
4 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
7 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
8 057-5900-00 057-5900-00 - Clutch Stop 2017-2022 MZ 2020-2022 ZT Avenger
$31.17
9 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
10 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
11 070-0055-00 070-0055-00 - PTO Clutch 2017-2024 MZ/ Magnum, 2020-2024 ZT Avenger
$299.59
12 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
13 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
14 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
15 018-0007-00 018-0007-00 - 7/16-20 x 3 Hex C/S GR 8 Yello
$2.99
16 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
17 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
18 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
20 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
21 015-0051-00 015-0051-00 - 2017-2022 Kohler Exhaust MZ/ZT/Maverick
$232.70
22 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$8.74
23 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$26.74
24 063-5004-00 063-5004-00 - 25 HP Kohler Oil Filter (Short) ZT/MZ
$23.53
25 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
26 015-2015-00 015-2015-00 - 22 Kohler MZ/Magnum-KT725-3035
$1924.93
