2017 Maverick Frame & Deck Lift

Frame & Deck Lift

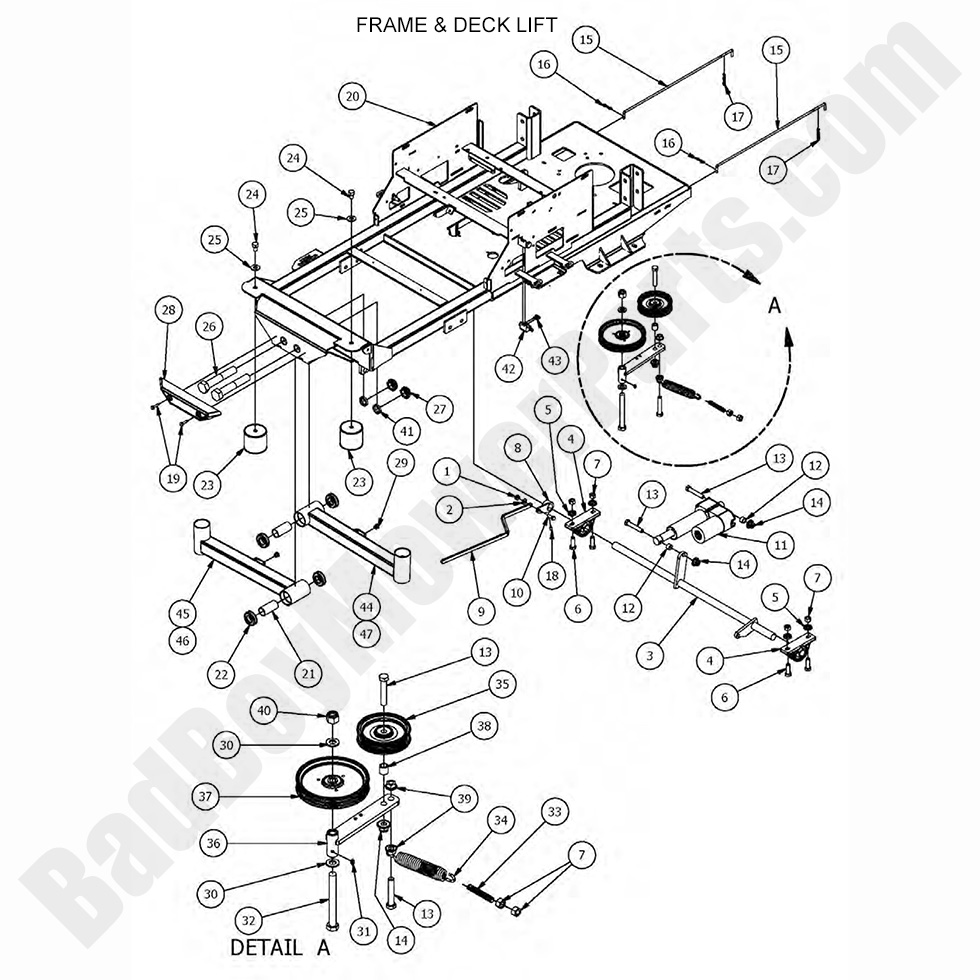

The Bad Boy Mower Frame & Deck Lift for the 2017 Maverick is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Maverick models as well. Find all of your Bad Boy mowers 2017 Maverick parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Maverick Frame & Deck Lift
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
3 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
4 017-7008-00 017-7008-00 - 1" Pillow Block Bearing
$21.29
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
7 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
8 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
10 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
11 035-7033-00 035-7033-00 - Actuator
$437.36
12 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
13 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2020 Compact Outlaw Neutral Lever/Rod
$14.19
16 044-2004-00 044-2004-00 - Bow Pin
$2.99
17 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
18 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
19 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
20 070-5490-17 070-5490-17 - 2017 Maverick Frame
$1283.99
21 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
22 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
23 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
24 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
25 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
26 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8 ZC YEL
$13.90
27 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
29 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
30 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
31 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
32 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
33 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
34 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
35 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
36 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
37 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2024 Maverick
$35.48
38 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
39 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
40 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
41 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
42 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
43 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
44 250-2500-00 250-2500-00 - 2017 Maverick Suspension Arm-Long-Left
$32.05
45 250-2550-00 250-2550-00 - 2017 Maverick Suspension Arm-Long-Right
$32.05
46 250-2450-00 250-2450-00 - 2017 Maverick Suspension Arm-Short-Right
$32.05
47 250-2400-00 250-2400-00 - 2017 Maverick Suspension Arm-Short-Left
$64.19
