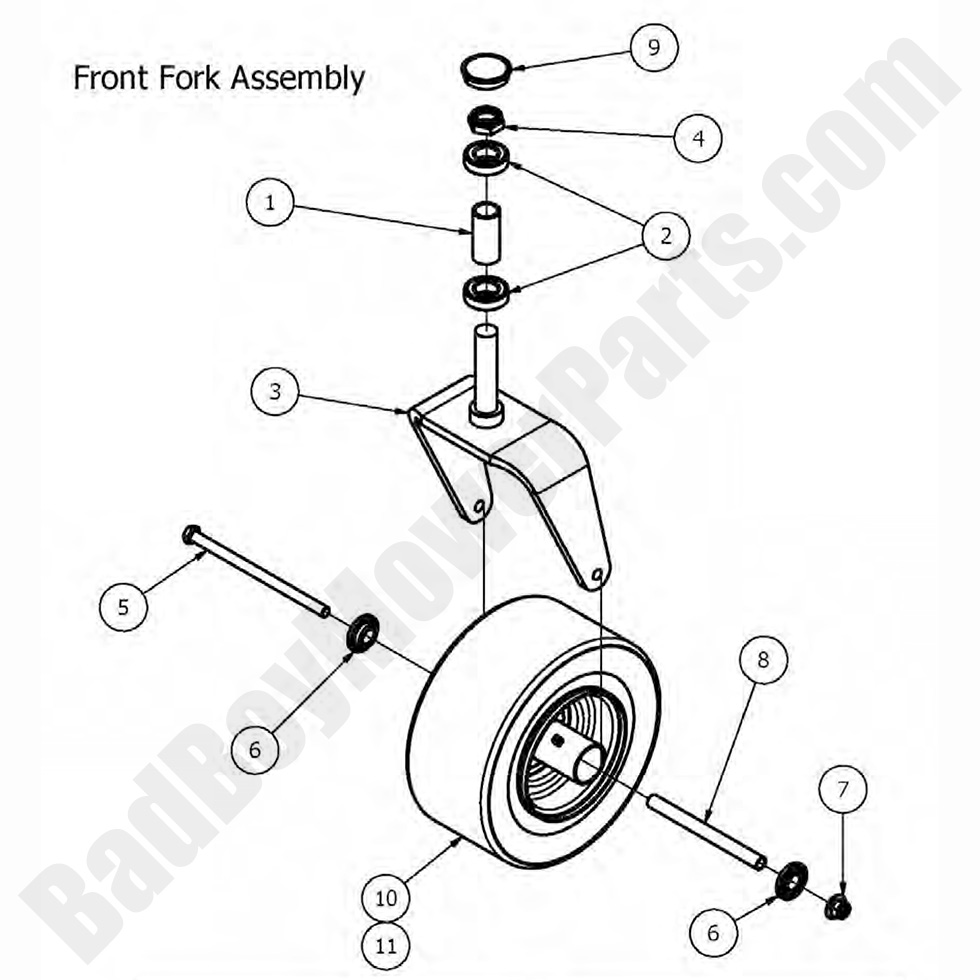

2017 Maverick Front Fork Assembly

Front Fork Assembly

The Bad Boy Mower Front Fork Assembly for the 2017 Maverick is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Maverick models as well. Find all of your Bad Boy mowers 2017 Maverick parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Maverick Front Fork Assembly
  Position Number SKU Product Title Price
1 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
2 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
3 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
4 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
5 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
6 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
10 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
11 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
