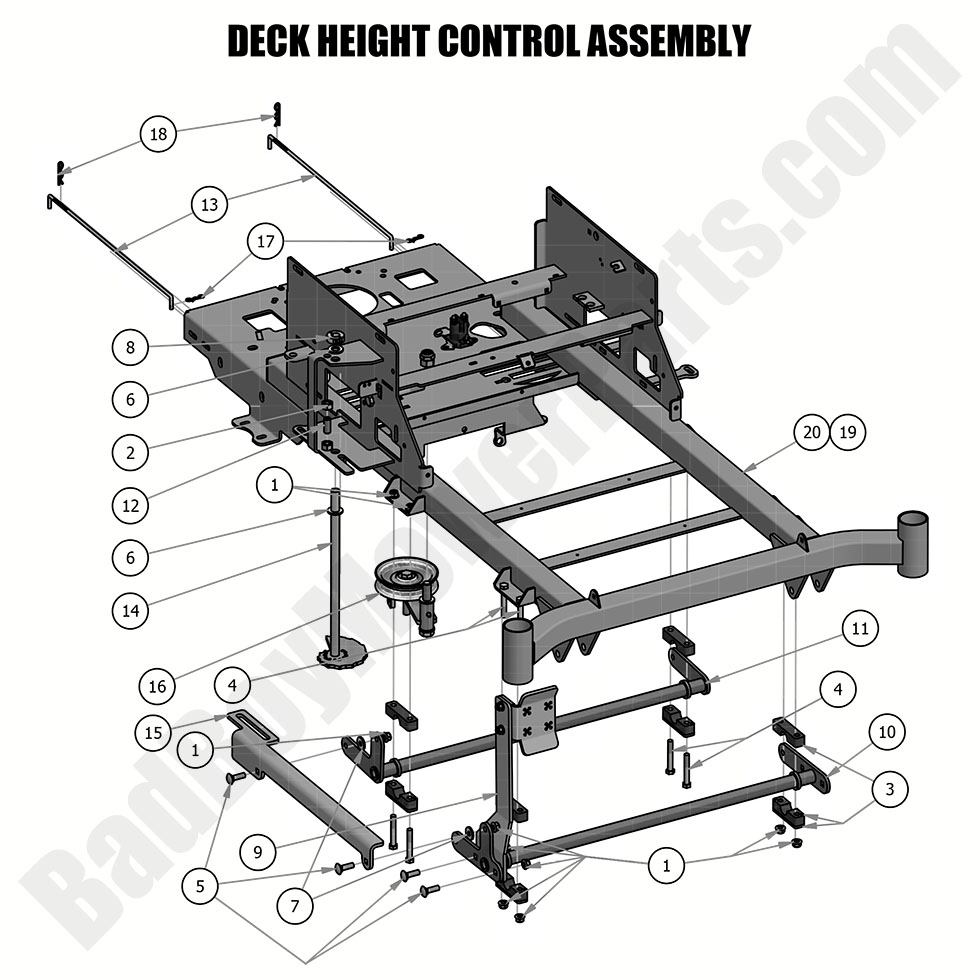

2019 ZT Elite Deck Height Control Assembly

Deck Height Control Assembly

Find the parts for your 2019 ZT Elite at BadBoyMowerParts.com. We have the 2019 ZT Elite Deck Height Control Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2019 ZT Elite Deck Height Control Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
3 017-9076-00 017-9076-00 - Pillow Block Assembly (See Models Used On For Details)
$23.41
4 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 025-0002-00 025-0002-00 -Two-Piece Split Collar (See Models Used On For Details)
$10.91
9 026-0019-01 026-0019-01 - Foot Pedal Assembly
$93.69
10 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
11 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
12 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
13 028-0070-00 028-0070-00 - Neutral Rod (See Models Used On For Detail)
$12.48
14 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
17 044-2004-00 044-2004-00 - Bow Pin
$2.99
18 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
19 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1283.99
20 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1283.99
