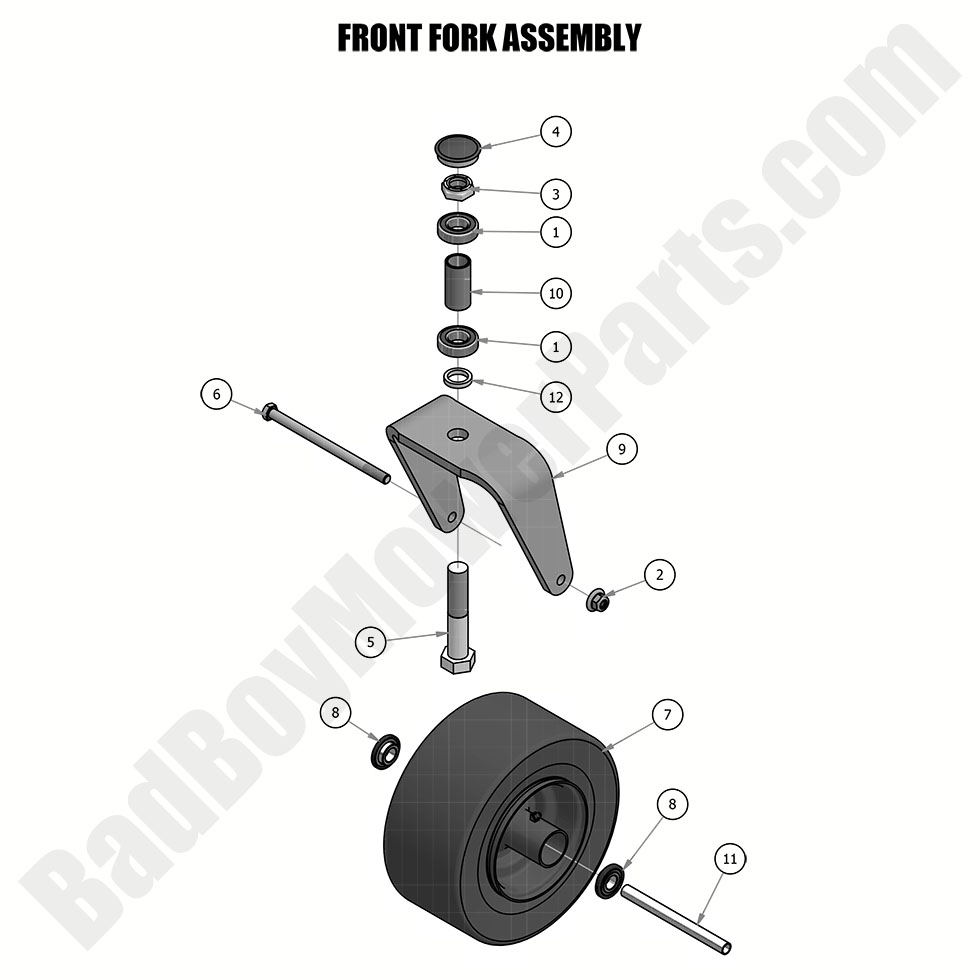

2019 ZT Elite Front Fork Assembly

Front Fork Assembly

Find the parts for your 2019 ZT Elite at BadBoyMowerParts.com. We have the 2019 ZT Elite Front Fork Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2019 ZT Elite Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
4 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW
$6.48
6 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$15.61
7 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
8 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
9 023-0003-00 023-0003-00 - 2017-2024 ZT Front Fork
$39.04
10 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
11 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
12 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
