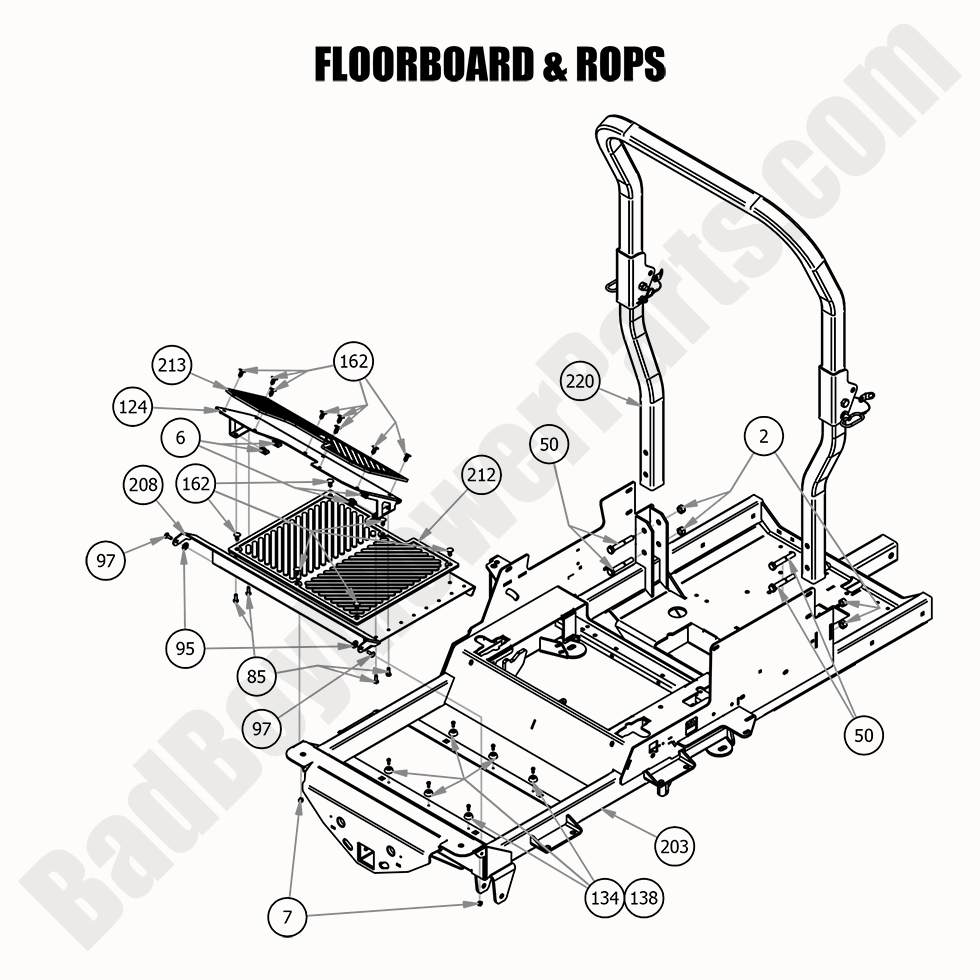

2020 Renegade - Gas Floorboard & ROPS

Floorboard & ROPS

Find the parts for your 2020 Renegade - Gas at BadBoyMowerParts.com. We have the floorboard and ROPS parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas Floorboard & ROPS
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
6 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
50 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-Grade 5
$2.99
85 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
95 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
97 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
124 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
134 029-4010-00 029-4010-00 - Button Bumper
$2.99
138 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
162 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
203 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1563.84
208 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$117.69
212 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
213 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2023 Rebel, Renegade & Rogue
$78.10
220 089-0006-00 089-0006-00 - 2019-2023 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$894.98
