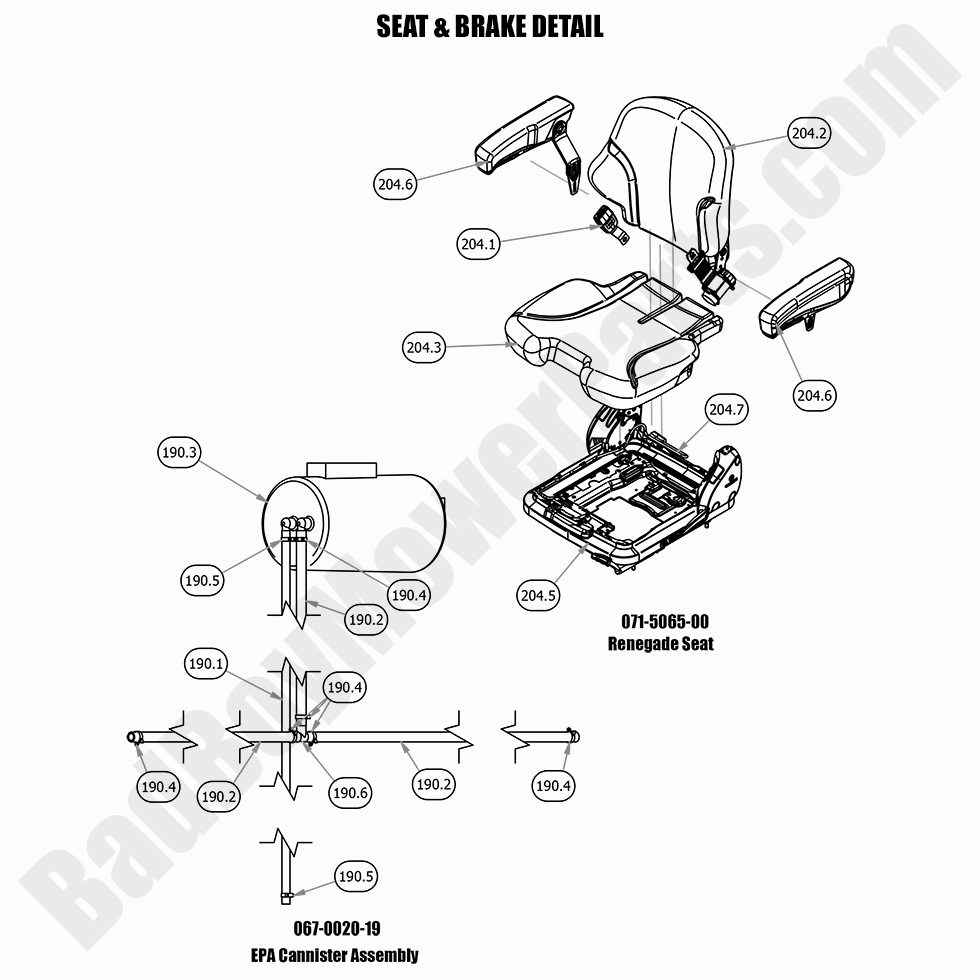

2020 Renegade - Gas Seat & Brake Detail

Seat & Brake Detail

Find the parts for your 2020 Renegade - Gas at BadBoyMowerParts.com. We have the seat and brake parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas Seat & Brake Detail
  Position Number SKU Product Title Price
190.0 067-0020-19 067-0020-19 - EPA Cannister Assembly 2019-2022 Rebel, Renegade Gas & Rogue
$42.75
190.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
190.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
190.3 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
190.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
190.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
190.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
204.0 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$962.99
204.1 071-5065-02 071-5065-02 - Seatbelt for 2019-2021 Rebel & Renegade
$141.97
204.2 071-5065-03 071-5065-03 - Backrest Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$181.89
204.3 071-5065-04 071-5065-04 - Seat Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$192.59
204.5 071-5065-05 071-5065-05 - Seat Rail Kit fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$85.17
204.6 071-5065-06 071-5065-06 - Armrest Kit fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$141.97
204.7 071-5065-07 071-5065-07 - Seat Switch fits the 071-5065-00 Renegade Seat
$42.58
