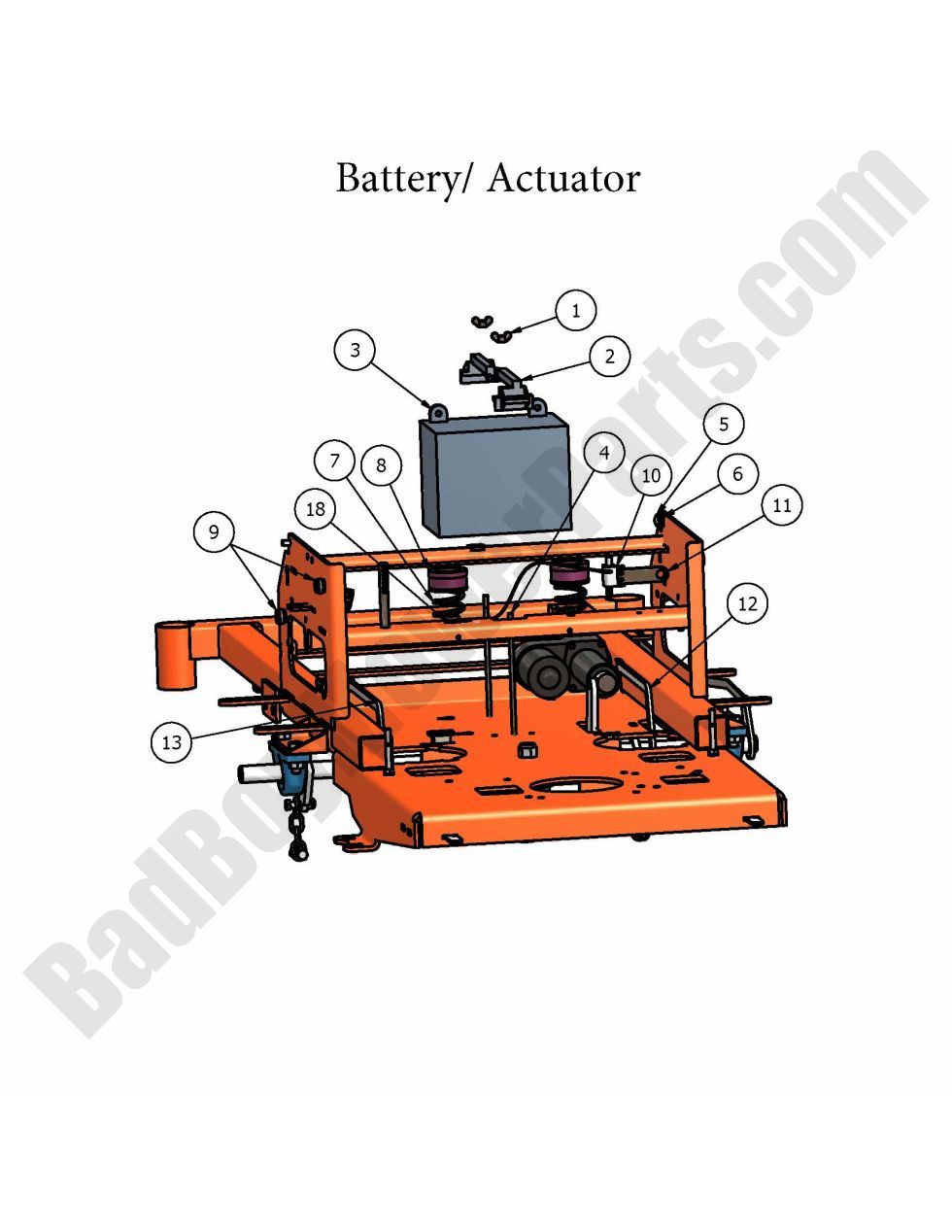

2007 ZT Battery & Actuator

Battery & Actuator

The Bad Boy Mower parts diagram for the 2007 ZT Battery & Actuator is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2007 ZT models. Find all of your Bad Boy mowers 2007 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 ZT Battery & Actuator. If you are not able to find the Bad Boy parts for your 2007 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 ZT Battery & Actuator
  Position Number SKU Product Title Price
1 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
2 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
4 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
5 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 034-8045-00 034-8045-00 - Seat Spring
$20.49
8 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
9 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
10 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
12 035-5400-00 035-5400-00 - 2007-2012 CZT/ZT Right Steering Push Rod
$30.87
13 035-5401-00 035-5401-00 - 2007-2012 CZT/ZT Left Steering Push Rod
$30.87
18 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
19 035-7033-00 035-7033-00 - Actuator
$437.36
