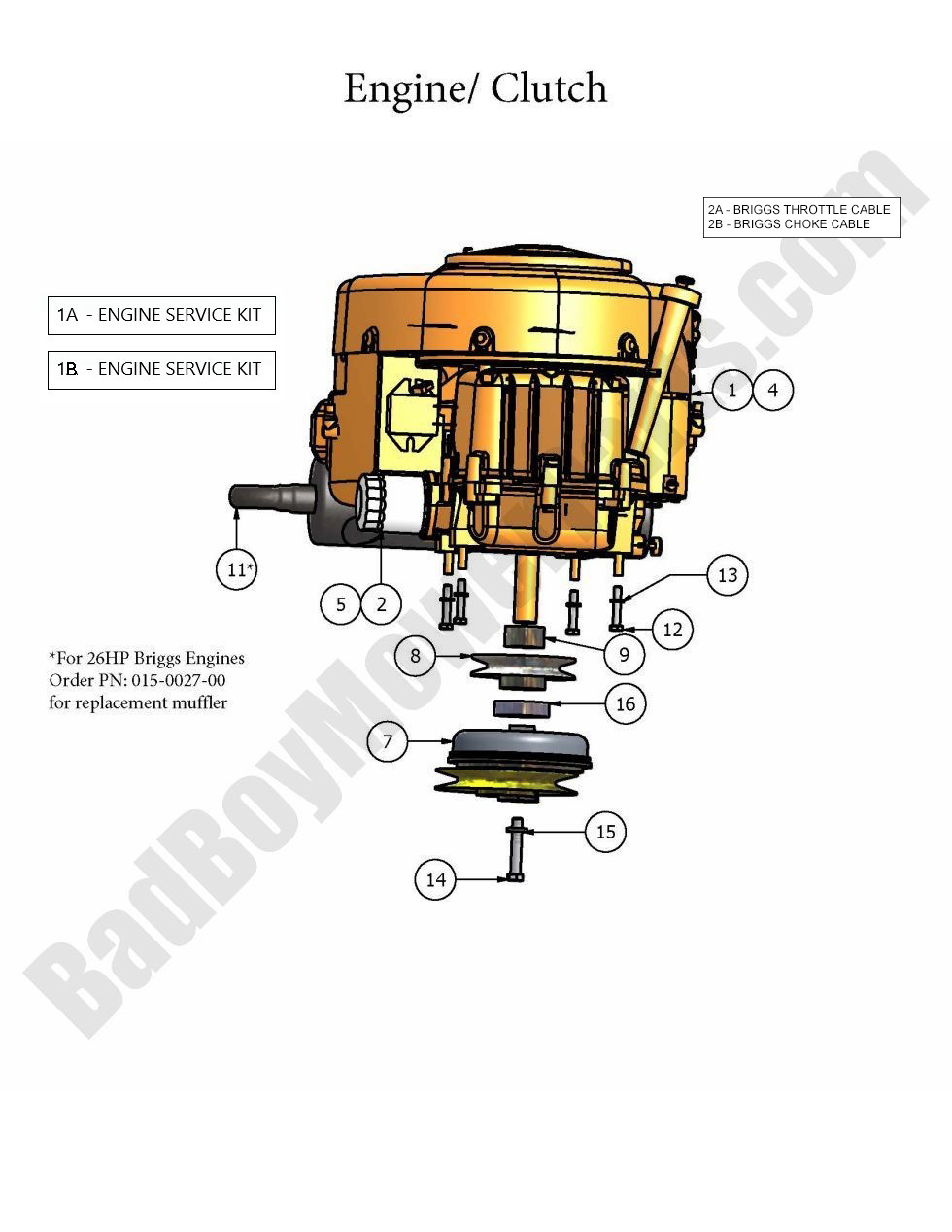

2007 ZT Engine and Clutch

Engine and Clutch

The Bad Boy Mower parts diagram for the 2007 ZT Engine and Clutch is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2007 ZT models. Find all of your Bad Boy mowers 2007 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 ZT Engine and Clutch. If you are not able to find the Bad Boy parts for your 2007 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 ZT Engine and Clutch
  Position Number SKU Product Title Price
1A 063-2000-00 063-2000-00 - ZT/MZ Service Package for a 26/27 Briggs Engine
$88.97
1B 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$189.64
2 063-2004-00 063-2004-00 - Oil Filter USE 063-8018-00 (obsolete)
use part #063-8018-00
$21.39
7 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
8 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
9 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1 Length Spacer Zinc Countersunk
$11.34
11A 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
11 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard Engine
$220.06
12 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
13 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
17 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
