2010 ZT Engine - 26Hp Briggs

Engine - 26Hp Briggs

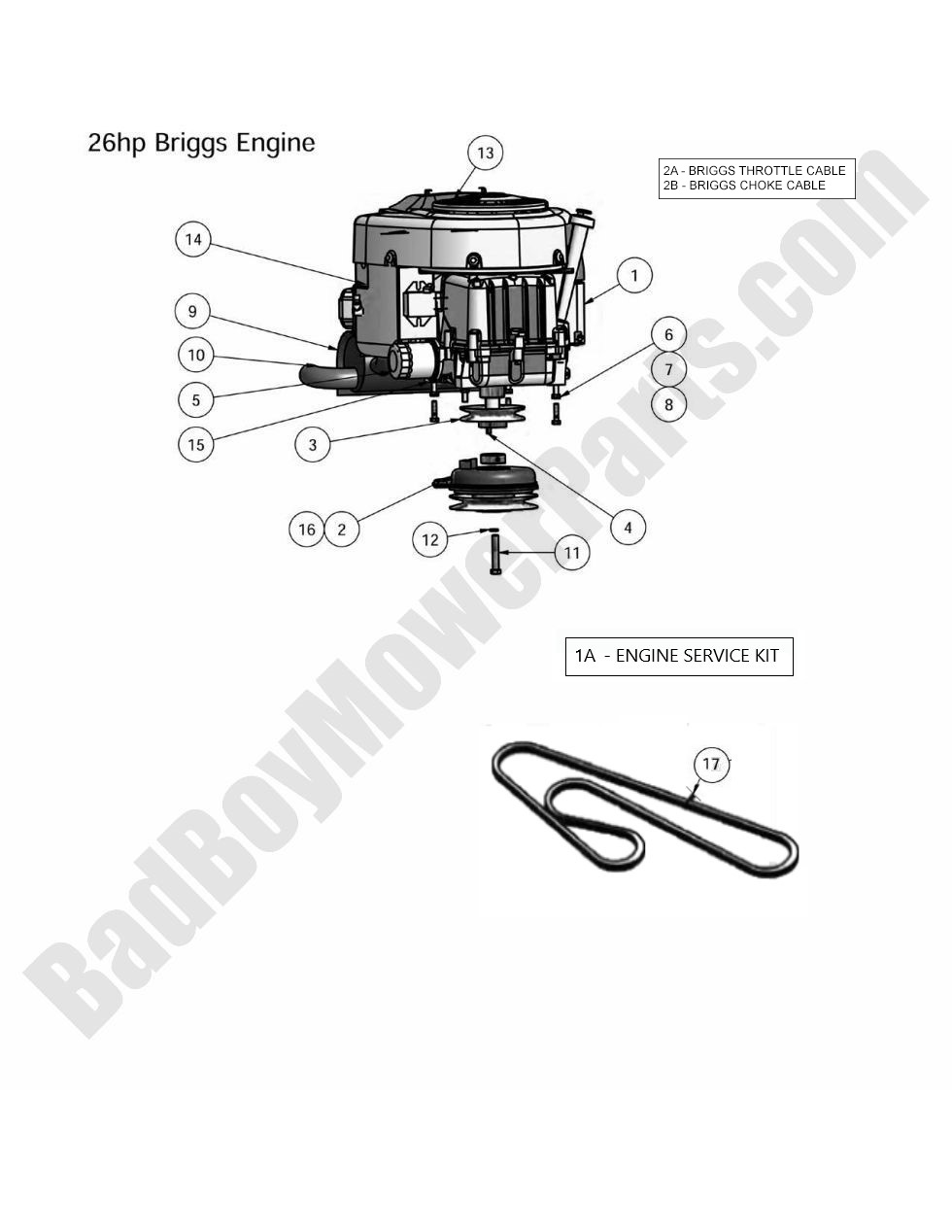

The Bad Boy Mower parts diagram for the 2010 ZT Engine (26Hp Briggs) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 ZT models. Find all of your Bad Boy mowers 2010 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 ZT Engine (26Hp Briggs). If you are not able to find the Bad Boy parts for your 2010 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 ZT Engine - 26Hp Briggs
  Position Number SKU Product Title Price
1A 063-2000-00 063-2000-00 - ZT/MZ Service Package for a 26/27 Briggs Engine
$88.97
2 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
5 063-8018-00 063-8018-00 - Oil Filter
$21.39
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
10 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
11 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
13 063-4000-00 063-4000-00 - Air Filter w/Precleaner 26/27 Briggs Engines
$32.58
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
16 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
17 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
