2010 ZT Engine - 27Hp Kohler

Engine - 27Hp Kohler

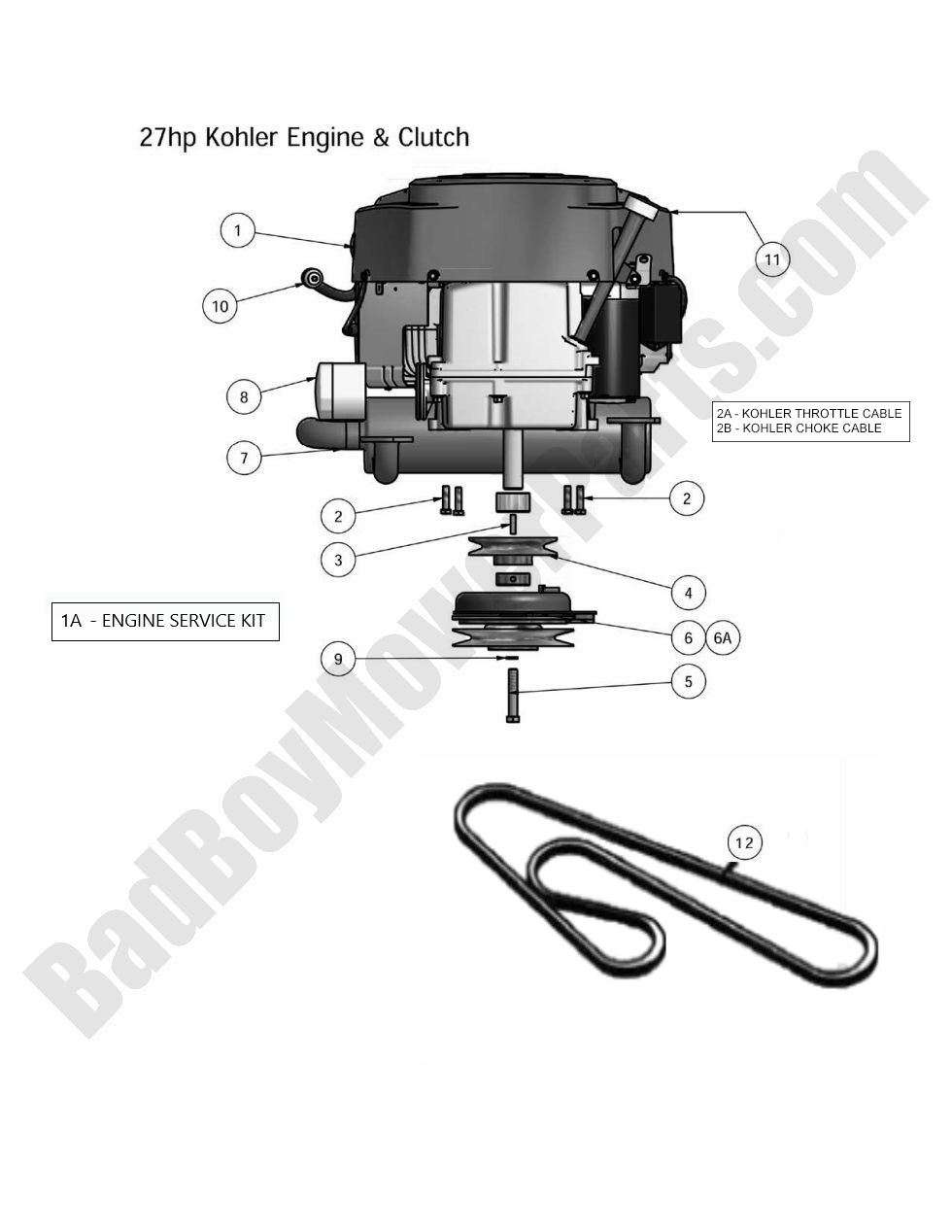

The Bad Boy Mower parts diagram for the 2010 ZT Engine (27Hp Kohler) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 ZT models. Find all of your Bad Boy mowers 2010 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 ZT Engine (27Hp Kohler). If you are not able to find the Bad Boy parts for your 2010 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 ZT Engine - 27Hp Kohler
  Position Number SKU Product Title Price
1A 063-2001-00 063-2001-00 - Kohler Courage Engine Service Kit (Courage Engines Only)
$89.50
1 015-2700-00 015-2700-00 - 27hp Kohler Courage (obsolete)
use part #015-2026-00
$2566.93
2 018-5051-00 018-5051-00 - OBSOLETE use 018-1075-00 3/8x1 1/8 HWH Engine Bolt (obsolete)
use part #018-1075-00
$2.99
3 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
4 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
5 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
6A 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
6 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
7 015-2750-00 015-2750-00 - Exhaust-27hp Kohler Courage
$340.74
8 063-5400-00 063-5400-00 - Bad Boy Oil Filter (Long) - Kohler Engines
$20.32
9 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99

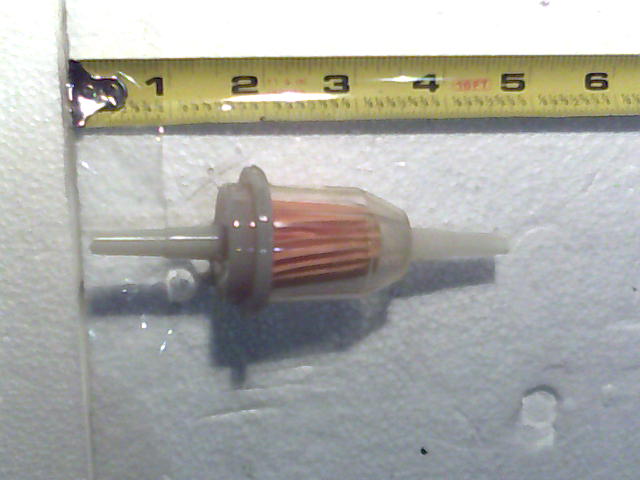

10 015-0200-00 015-0200-00 - USE 063-6000-00 (obsolete)
use part #063-6000-00
$14.19

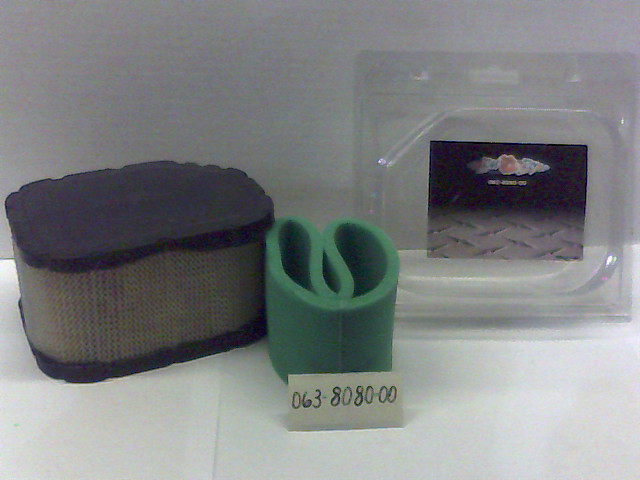

11 063-8080-00 063-8080-00 - Air Filter/Precleaner-27hp Kohler Courage
$32.09
12 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
