2012 Outlaw & Outlaw Extreme Engine - 29Hp Kohler EFI

Engine - 29Hp Kohler EFI

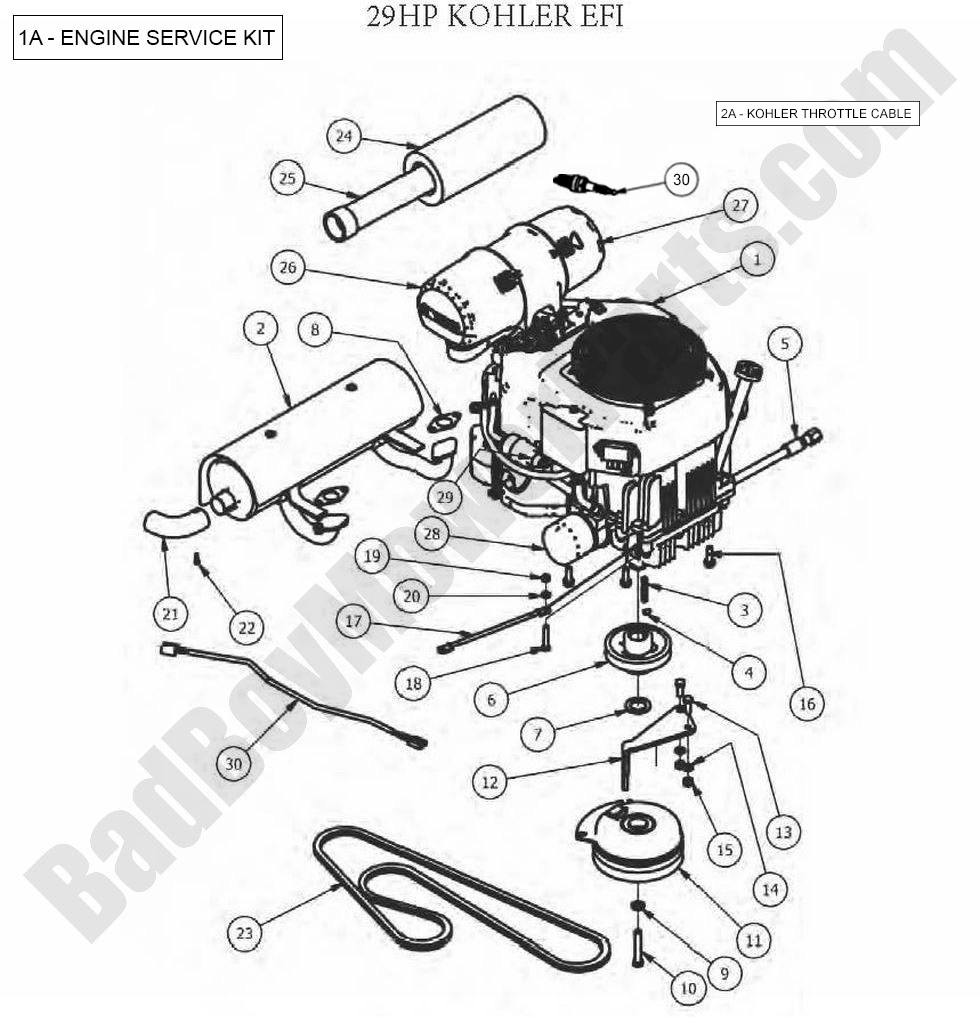

The Bad Boy Mower parts diagram for the 2012 Outlaw Engine (29Hp Kohler EFI) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 Outlaw models. Find all of your Bad Boy mowers 2012 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 Outlaw Engine (29Hp Kohler EFI). If you are not able to find the Bad Boy parts for your 2012 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 Outlaw & Outlaw Extreme Engine - 29Hp Kohler EFI
  Position Number SKU Product Title Price
1A 063-2000-09 063-2000-09 - Kohler Command and Kohler ECV749
$121.25
1 015-2900-00 015-2900-00 - 29 EFI Kohler Engine
$3424.00
2 015-0039-00 015-0039-00 - Exhaust 30 Kohler
$641.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
5 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
6 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
7 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
8 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
9 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
10 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
11 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
12 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
13 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
17 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
18 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
19 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
20 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
21 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
22 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
23 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
24 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
25 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65

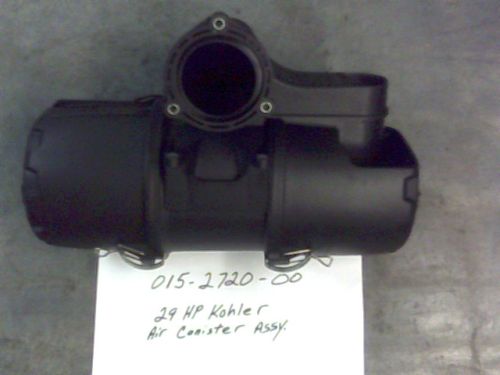

26 015-2720-00 015-2720-00 - 29HP Kohler Air Canister Ass
$267.49
27 015-2704-00 015-2704-00 - 30 Kohler End Cap - New Style
$32.09
28 063-5400-00 063-5400-00 - Bad Boy Oil Filter (Long) - Kohler Engines
$20.32
29 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
30 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
30 070-2010-00 070-2010-00 - 10 amp Clutch Pigtail-29 EFI
$21.28
