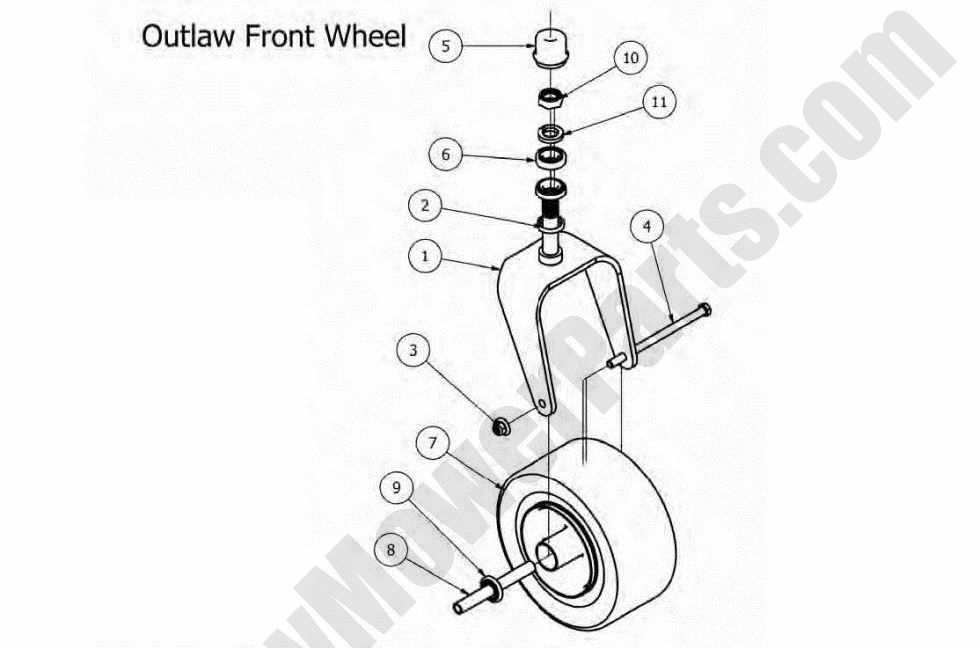

2012 Outlaw & Outlaw Extreme Front Wheel

Front Wheel

The Bad Boy Mower parts diagram for the 2012 Outlaw Front Wheel is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 Outlaw models. Find all of your Bad Boy mowers 2012 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 Outlaw Front Wheel. If you are not able to find the Bad Boy parts for your 2012 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 Outlaw & Outlaw Extreme Front Wheel
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
2A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
2 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
5 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
6A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$2.99
6 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
7 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$128.39
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 022-7010-00 022-7010-00 - 1 3/4" Bearing-Large Bore Front Wheel
$20.32
10 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
11 019-3000-00 019-3000-00 - 1 Lock Washer
$3.29
