2010 AOS Engine

Engine

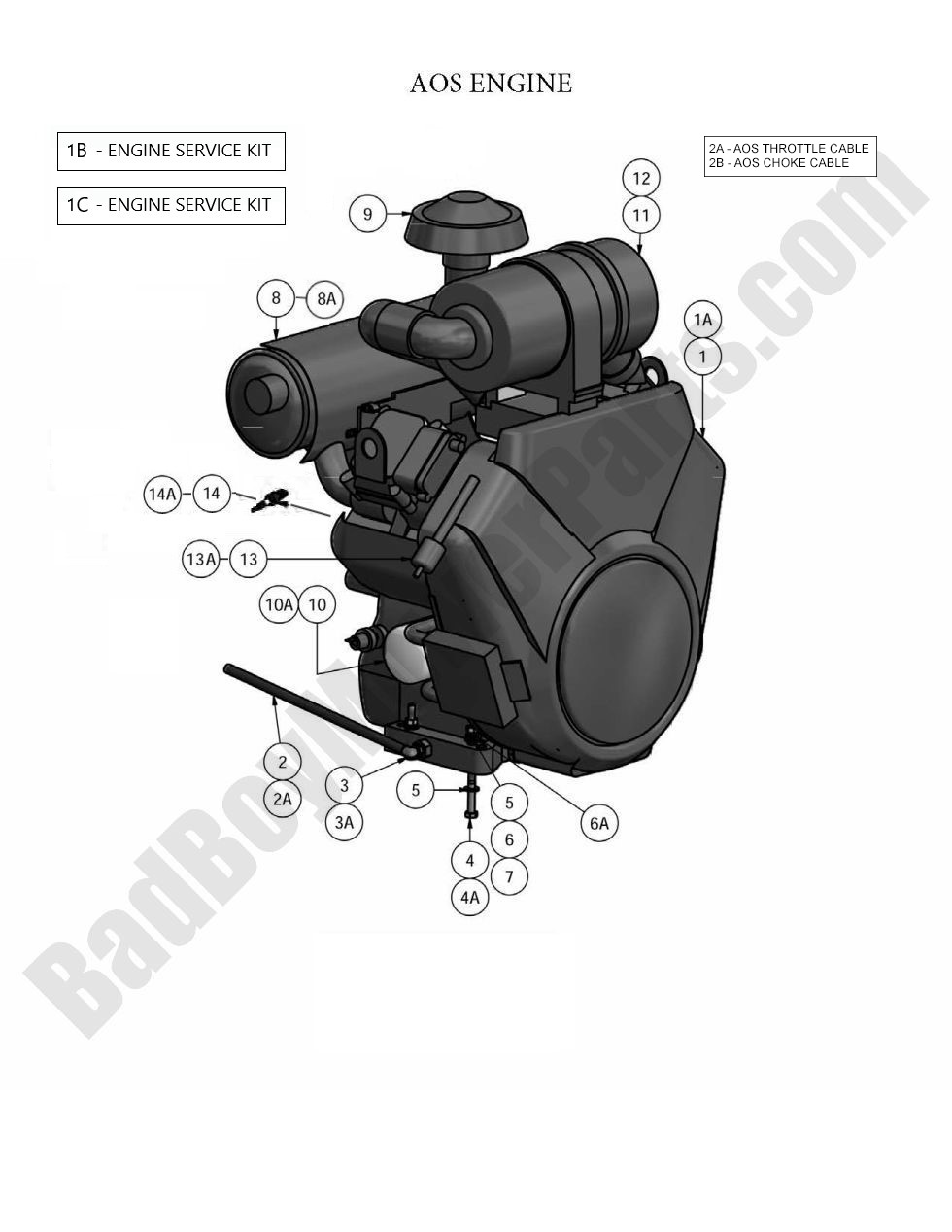

The Bad Boy Mower parts diagram for the 2010 AOS Engine is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 AOS models. Find all of your Bad Boy mowers 2010 AOS parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 AOS Engine. If you are not able to find the Bad Boy parts for your 2010 AOS please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 AOS Engine
  Position Number SKU Product Title Price
1A 015-0003-00 015-0003-00 - 27hp Kawasaki Engine with Dona ldson Filter
$3846.65
1B 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1C 063-2000-02 063-2000-02 - Kawasaki FX850 & FX1000 Engine Service Kit
$124.74
1 015-5405-00 015-5405-00 - 35hp Vanguard Engine
$4167.65
2A 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
2 051-5400-00 051-5400-00 - Oil Drain Hose-35/31hp Briggs
$24.12

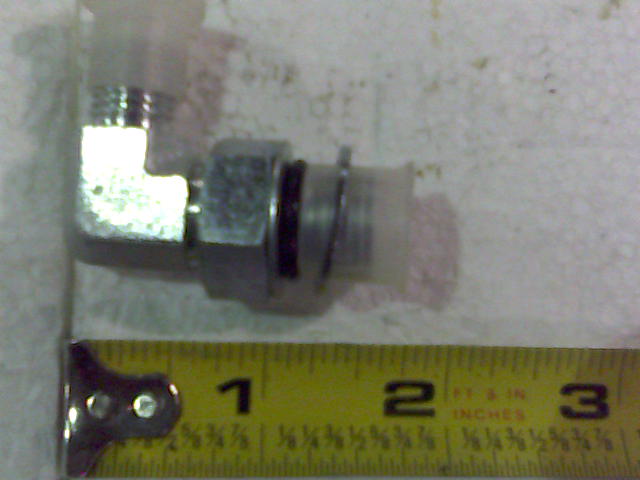

3 036-5400-00 036-5400-00 - Adaptor for 35/31hp Briggs Oil Drain
$32.05

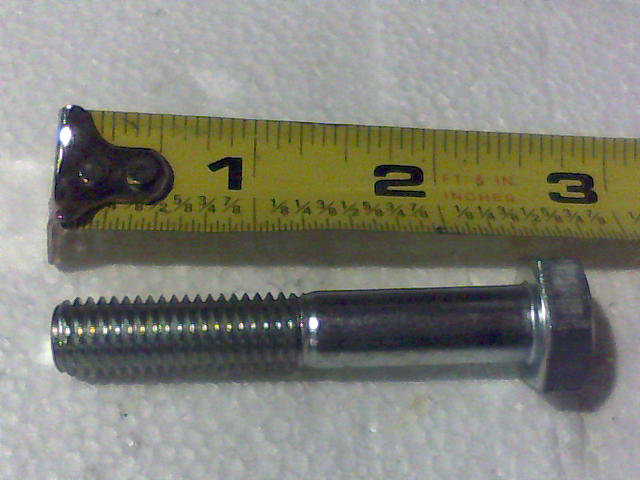

4A 018-5028-00 018-5028-00 - M10 X 1.5 X 60MM
$2.99

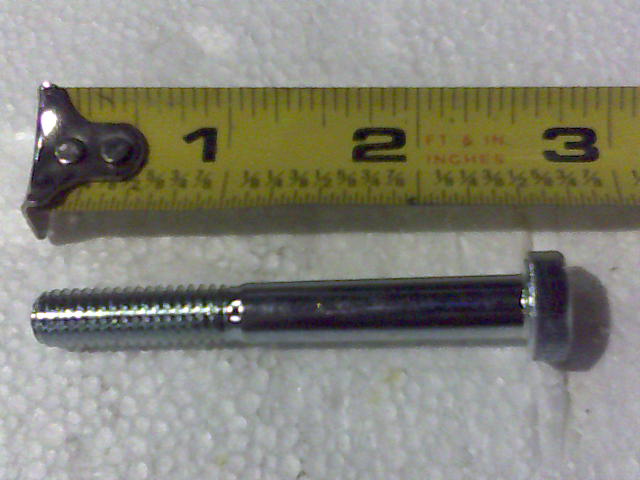

4 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
5 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
6A 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
6 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8A 015-0016-00 015-0016-00 - 27 Kawasaki Muffler
$427.99
8 015-5406-00 015-5406-00 - Exhaust 35hp Vanguard Engine
$267.49

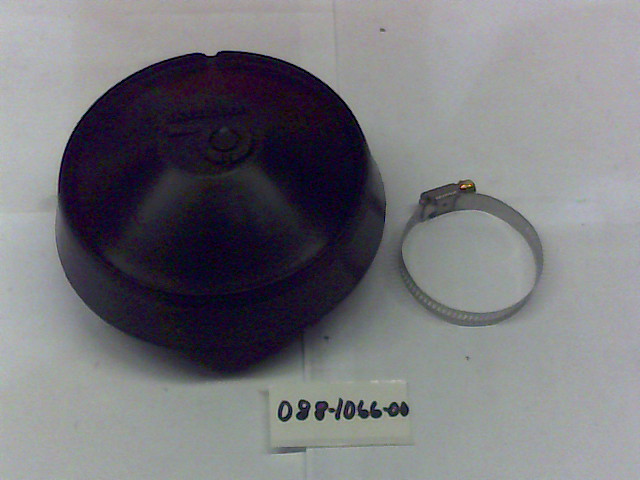

9 088-1066-00 088-1066-00 - 32hp Vanguard Rain Cap
$96.29
10 063-8018-00 063-8018-00 - Oil Filter
$21.39
10a 063-8017-00 063-8017-00 - Kawasaki Oil Filter Fits 26/27 Liquid Cool/31 KAW
$21.39
11 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
12 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65

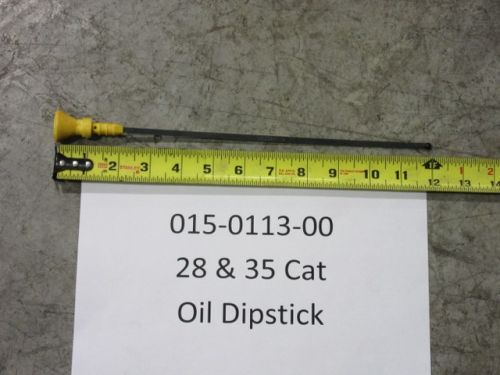

13A 015-0113-00 015-0113-00 - 28 & 35 CAT Oil Dipstick
$56.77
13 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
14A 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
14 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
