2010 AOS Pump Plate Assembly

Pump Plate Assembly

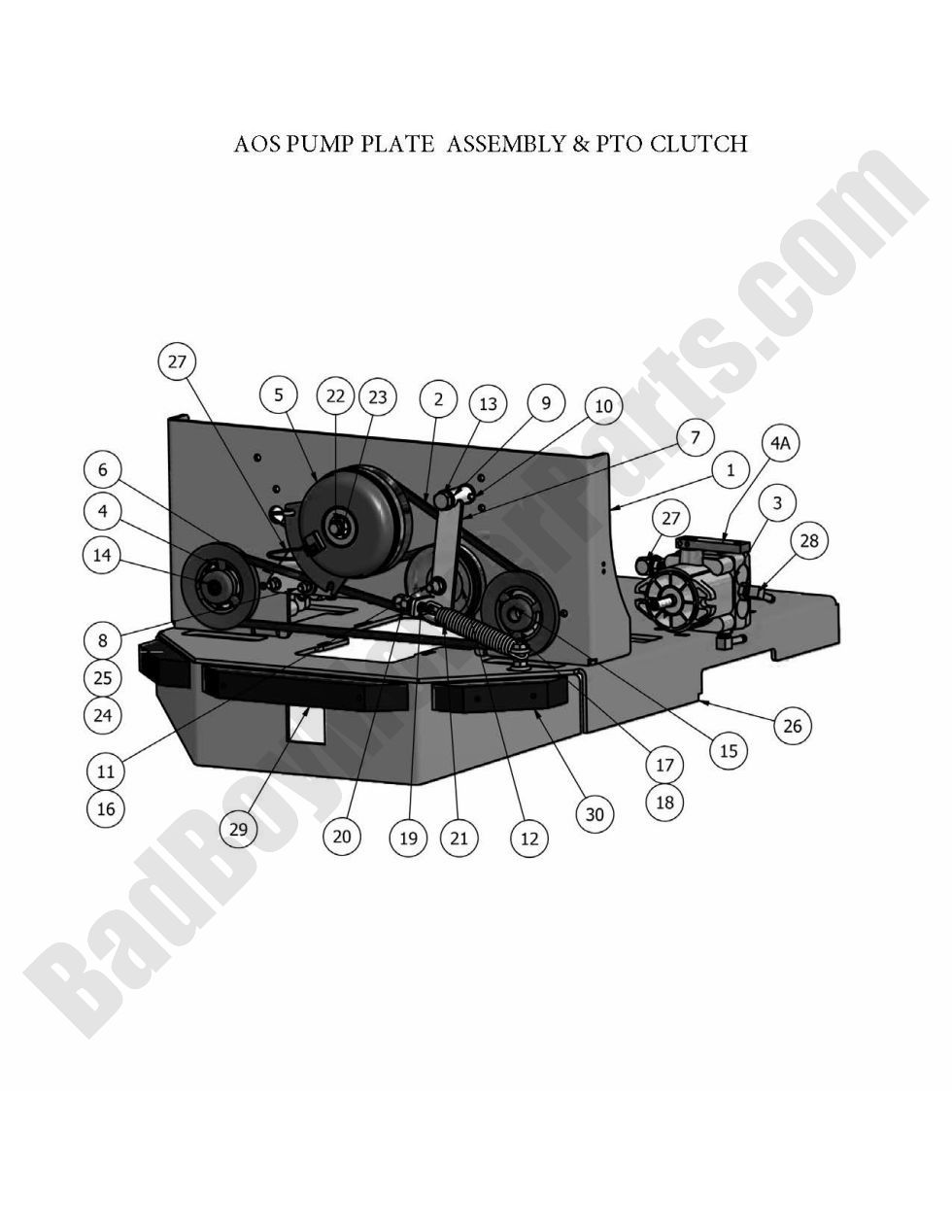

The Bad Boy Mower parts diagram for the 2010 AOS Pump Plate Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 AOS models. Find all of your Bad Boy mowers 2010 AOS parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 AOS Pump Plate Assembly. If you are not able to find the Bad Boy parts for your 2010 AOS please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 AOS Pump Plate Assembly
  Position Number SKU Product Title Price
2 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
3 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel
$855.99
4A 031-5923-00 031-5923-00 - Pump Arm
$30.07
4 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel
$855.99
5 070-5035-00 070-5035-00 - PTO Clutch - AOS Gas Models
$298.14
6 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
7 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
11 018-5049-00 018-5049-00 - 1/2-13 X 2 GR 5 Hex Bolts Zinc
$2.99
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
14 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
15 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
16 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
17 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
20 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
22 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
23 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
25 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
26 070-5600-00 070-5600-00 - AOS Frame Suspension
$2032.99
27 024-7033-00 024-7033-00 - Wheel Motor Fitting 6400-10-10
$4.40
28 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
29 029-7037-00 029-7037-00 - 14 Bumper
$42.79
30 029-7038-00 029-7038-00 - 8 Bumper
$28.32
