2007 Diesel Floorboard

Floorboard

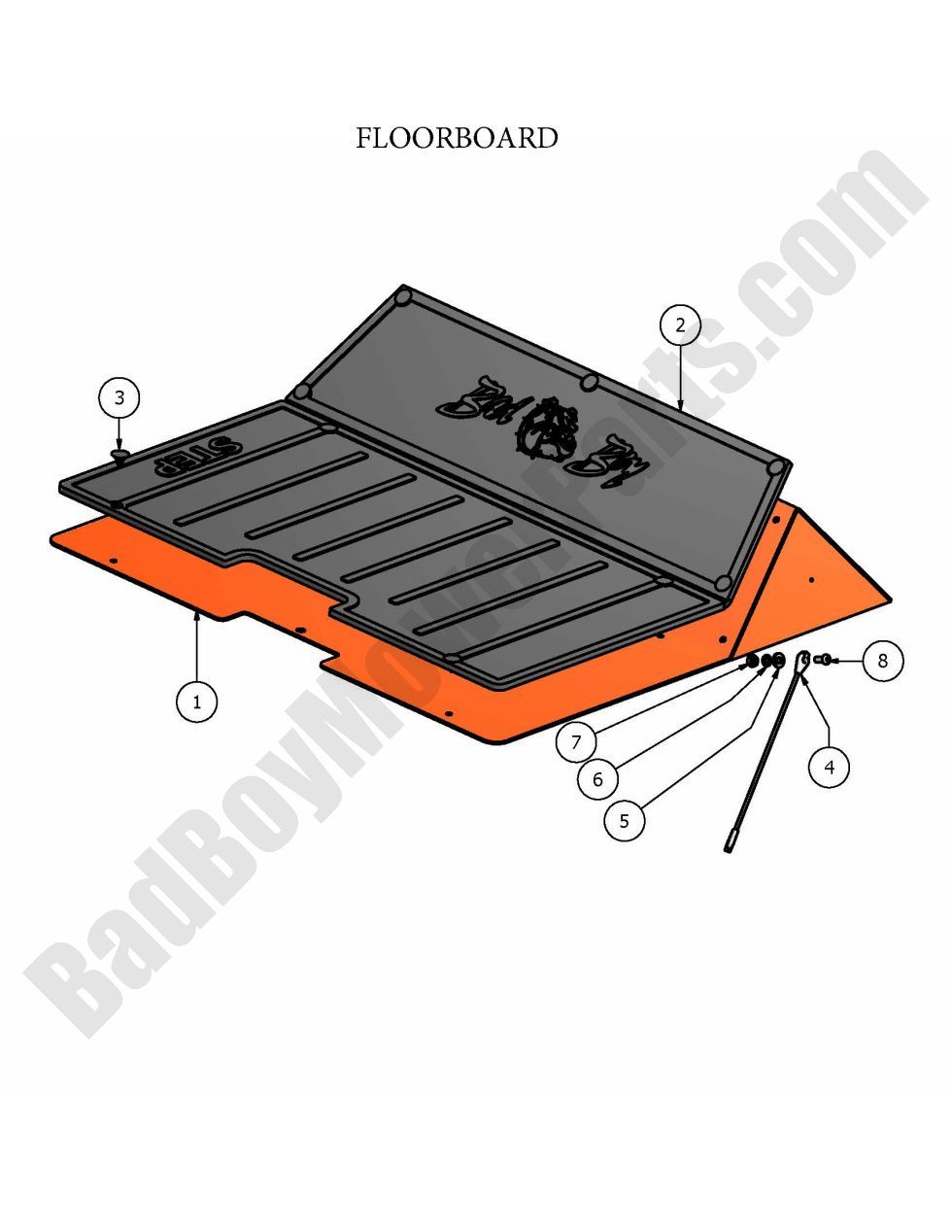

The Bad Boy Mower parts diagram for the 2007 Diesel Floorboard is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2007 Diesel models. Find all of your Bad Boy mowers 2007 Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 Diesel Floorboard. If you are not able to find the Bad Boy parts for your 2007 Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 Diesel Floorboard
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 079-6000-00 079-6000-00 - 2007-2018 Floor Panel (See Models Used On For Details)
$156.17
2 081-2007-00 081-2007-00 - Floor Mat - Diesel Models (See Models Used On For Details)
$66.76
3 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
4 064-2005-00 064-2005-00 - Floorboard Cable USE 064-2006-00!!!!!!!! (obsolete)
use part #064-2006-00
$15.55
5 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
6 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
7 013-8039-00 013-8039-00 - 1/4-20 Hex Nuts Zinc
$2.99
8 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
