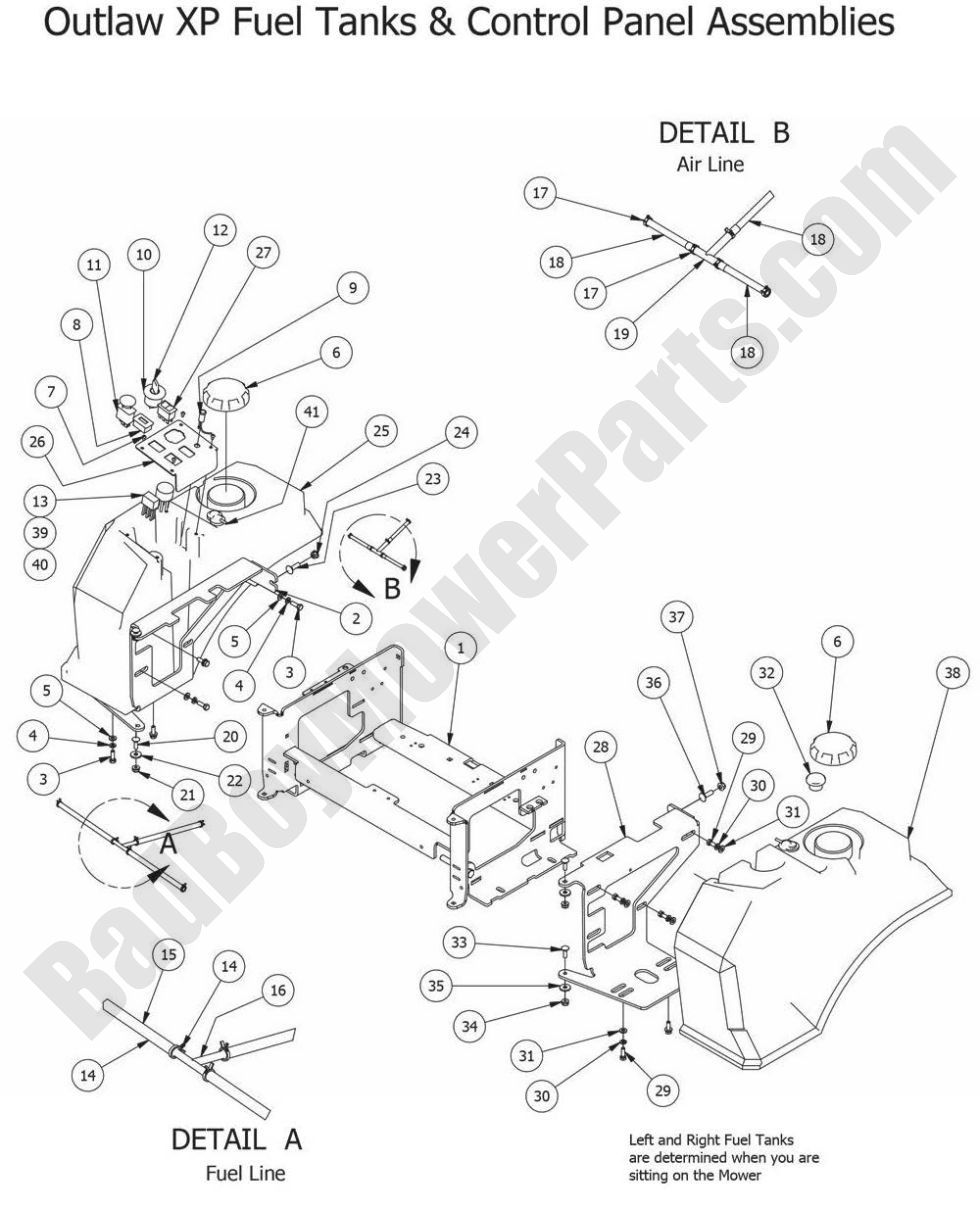

2014 Outlaw XP Fuel Tank and Control Panel

Fuel Tank and Control Panel

BadBoyMowerParts.com has the parts diagrams for the 2014 Outlaw XP models. Find all of your Bad Boy mowers 2014 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Outlaw XP Fuel Tank and Control Panel. If you are not able to find the Bad Boy parts for your 2014 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2014 Outlaw XP Fuel Tank and Control Panel
  Position Number SKU Product Title Price
1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$427.99
2 031-2030-00 031-2030-00 - 2012-2014 Outlaw Tank Support Right
$78.08
3 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
4 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
5 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
6 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
9 089-1000-00 089-1000-00 - Oil Light
$12.63
10 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 042-9000-00 042-9000-00 - Ignition Key
$4.06
13 086-0045-00 086-0045-00 - Wiring Harness - 31hp Kawasaki
$534.99
14 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
15 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
16 073-8068-00 073-8068-00 - Fuel Line T
$9.70
17 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
18 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
20 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
21 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
22 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
23 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
24 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
25 067-8001-50 067-8001-50 - 2011-2014 Outlaw Extreme/XP Right Fuel Tank
$352.99
26 079-3350-00 079-3350-00 - 2012-2014 Outlaw XP Control Panel with Actuator Rocker Switch
$31.22
27 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
28 031-2031-00 031-2031-00 - 2012-2014 Outlaw Tank Support Left
$78.08
32 067-4050-00 067-4050-00 - Fuel Gauge-Tanks (See Models Used On For Details)
$46.00
38 067-8000-50 067-8000-50 - 2011-2014 Outlaw Extreme/ XP Left Fuel Tank
$383.99
39 086-0032-00 086-0032-00 - Wiring Harness-32hp Lightning/ 36hp Outlaw
$353.53
40 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
41 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60
