2014 Outlaw XP Seat Assembly

Seat Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 Outlaw XP models. Find all of your Bad Boy mowers 2014 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Outlaw XP Seat Assembly. If you are not able to find the Bad Boy parts for your 2014 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

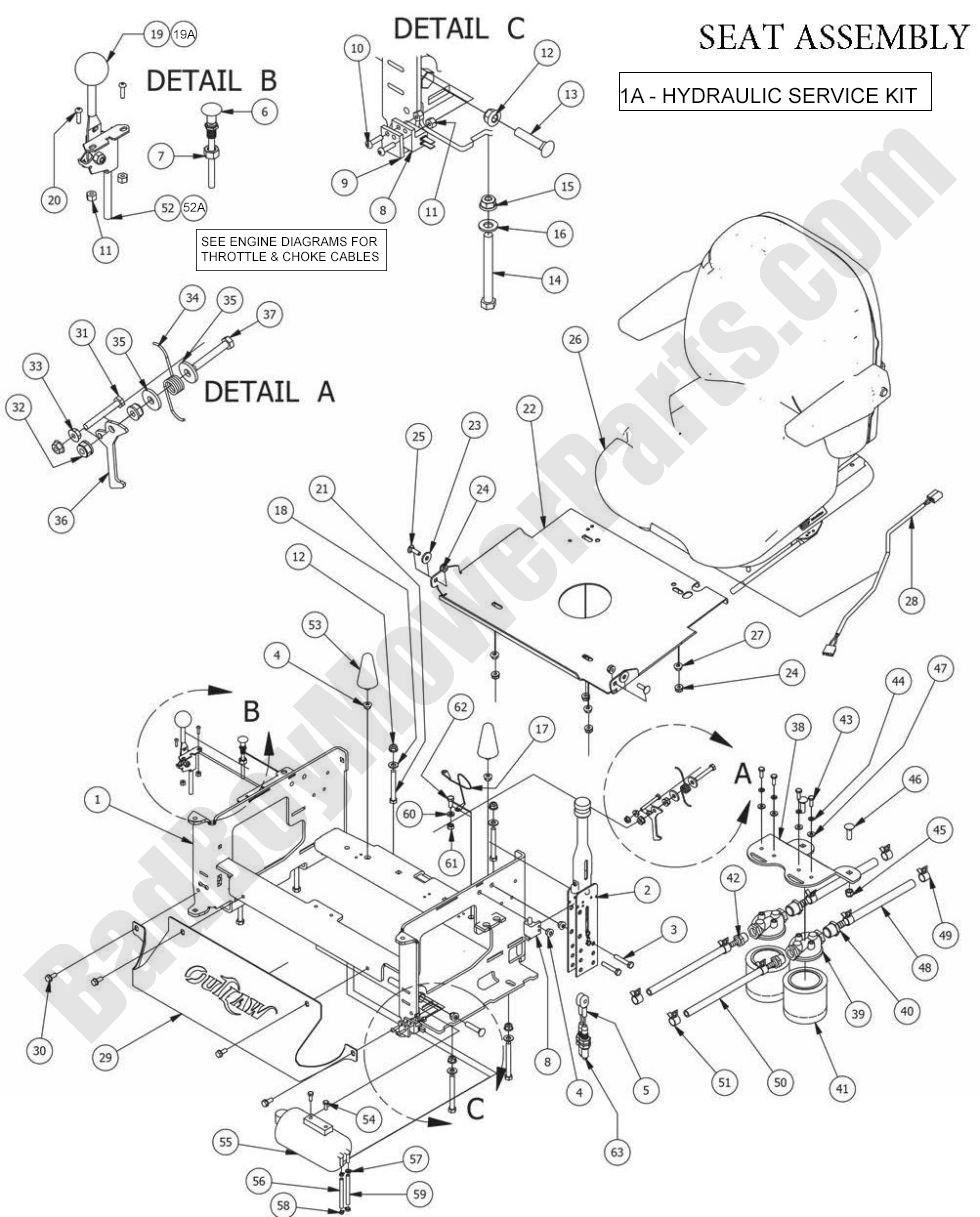

2014 Outlaw XP Seat Assembly
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$427.99
2 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
3 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
6 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
10 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
11 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
12 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
14 018-1010-00 018-1010-00 - 3/8-16x3-1/2 Grade 5 Hex Bolt
$2.99
16 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
17 064-8081-00 064-8081-00 - Seat Cable (See Models Used On For Details)
$15.60
19A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
19 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 018-4700-00 018-4700-00 - 3/8-16 X 3 GR 5 Hex Bolts Zinc
$2.99
22 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
25 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
26 071-5000-00 071-5000-00 - 2010-2014 Outlaw Seat Use without ROPS (obsolete)
use part #071-5060-00
$748.99
27 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
28 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
29 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
30 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99
31 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
33 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
36 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
37 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5) ZC
$2.99
39 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
40 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
41 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
42 024-5342-00 024-5342-00 - Fitting 1/2 x 3/8 Barb 206-108
$7.95
43 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
44 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
45 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
46 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
47 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
48 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
49 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
50 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
51 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
52A 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
52 055-8021-75 055-8021-75 - 52" Outlaw Throttle Cable ONLY (Excludes Outlaws w/ FX850 Kawasaki Engines), Also Fits 2019-2022 Rebel, Renegade, Rogue, and Revolt (27hp Kawasaki, Yamaha, and Kohler, 29.5 EFI Kawasaki, 33hp EFI Kohler and Yamaha, 37hp EFI Vanguard)
$28.88
53 034-1444-00 034-1444-00 - Rubber Cone-1621-153 (obsolete)
use part #034-8045-98
$29.80
54 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
55 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
56 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
57 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
58 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
59 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
60 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
61 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
62 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
63 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
