2007 Pup Spindle

Spindle

The Bad Boy Mower parts diagram for the 2007 Pup Spindle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2007 Pup models. Find all of your Bad Boy mowers 2007 Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 Pup Spindle. If you are not able to find the Bad Boy parts for your 2007 Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 Pup Spindle
  Position Number SKU Product Title Price
1 037-6009-00 037-6009-00 - Large Bearing Retainer Ring Diamond Spindles
$4.94
2 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)

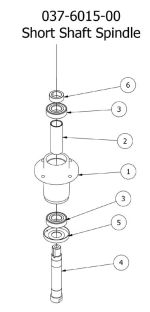

use part #037-6015-50
$213.99
3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
4 037-6019-00 037-6019-00 - Spindle Shaft, Grooved - Diamond
$99.37
5 037-6018-00 037-6018-00 - Spindle Shaft - Long
$53.38
6 037-6021-00 037-6021-00 - Spindle Shaft Spacer/Washer
$2.99
7 037-6020-00 037-6020-00 - Large Washer-Diamond Spindle
$2.99
8 037-6022-00 037-6022-00 - Small Shaft Retainer Ring for Diamond Spindle
$2.99
