2007 Pup Wheel Motor

Wheel Motor

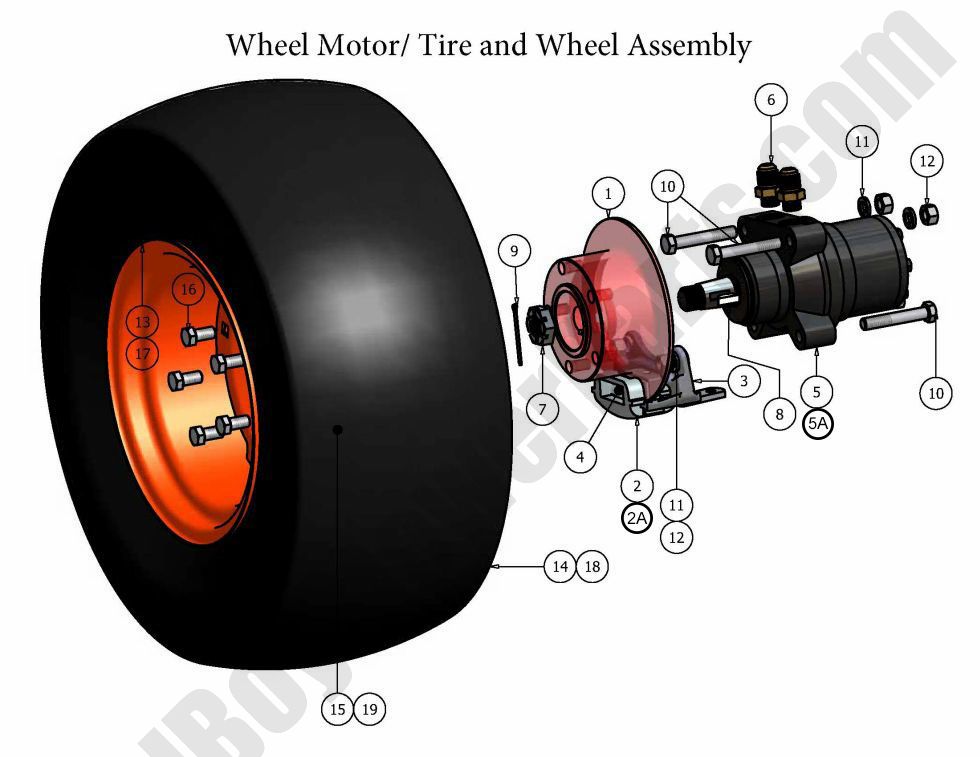

The Bad Boy Mower parts diagram for the 2007 Pup Wheel Motor is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2007 Pup models. Find all of your Bad Boy mowers 2007 Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 Pup Wheel Motor. If you are not able to find the Bad Boy parts for your 2007 Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 Pup Wheel Motor
  Position Number SKU Product Title Price
1 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2018 Diesel/Outlaw XP, 2019-2022 Renegade/Rogue Brake Disc 8
$127.72
2A 016-1609-98 016-1609-98 - 2007-2008 AOS/Diesel/Pup Left Disc Brake Assy w/Bracket (Pads Included)
$106.99
2 016-1610-98 016-1610-98 - 2007-2008 AOS/Diesel/Pup Right Disc Brake Assy w/Bracket (Brake Pads Included)
$106.99
3 039-8936-00 039-8936-00 - Caliper Bracket
$48.14
4 016-9998-00 016-9998-00 - 2007-2008 Diesel/Pup Disc Brake Pads Only (For Only One Side)
$31.23
5A 015-2005-00 015-2005-00 - Left Wheel Motor - 15cc - Hydr ogear
$855.99
5 015-2004-00 015-2004-00 - Right Wheel Motor - 15cc - Hydrogear
$855.99
6 024-7033-00 024-7033-00 - Wheel Motor Fitting 6400-10-10
$4.40
7 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
8 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
9 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
10 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
11 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
13 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$195.99
14 022-5349-00 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only)
$246.99
15 022-5450-00 022-5450-00 - 24 x 12.00 - 12 Tire and Orange Wheel Assembly (One Tire & Rim Assembly)
$342.99
16 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
17 022-7062-00 022-7062-00 - 12 Orange Wheel - 48 and 52 Pu p Models
$113.62
18 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$192.99
19 022-5352-00 022-5352-00 - 23x10.50-12 Wheel Assembly (One Tire & Rim Assembly)
$267.99
