2014 Stand-On Engine - Briggs 810cc

Engine - Briggs 810cc

BadBoyMowerParts.com has the parts diagrams for the 2014 Stand-On models. Find all of your Bad Boy mowers 2014 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Stand-On Briggs Engine 810cc. If you are not able to find the Bad Boy parts for your 2014 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

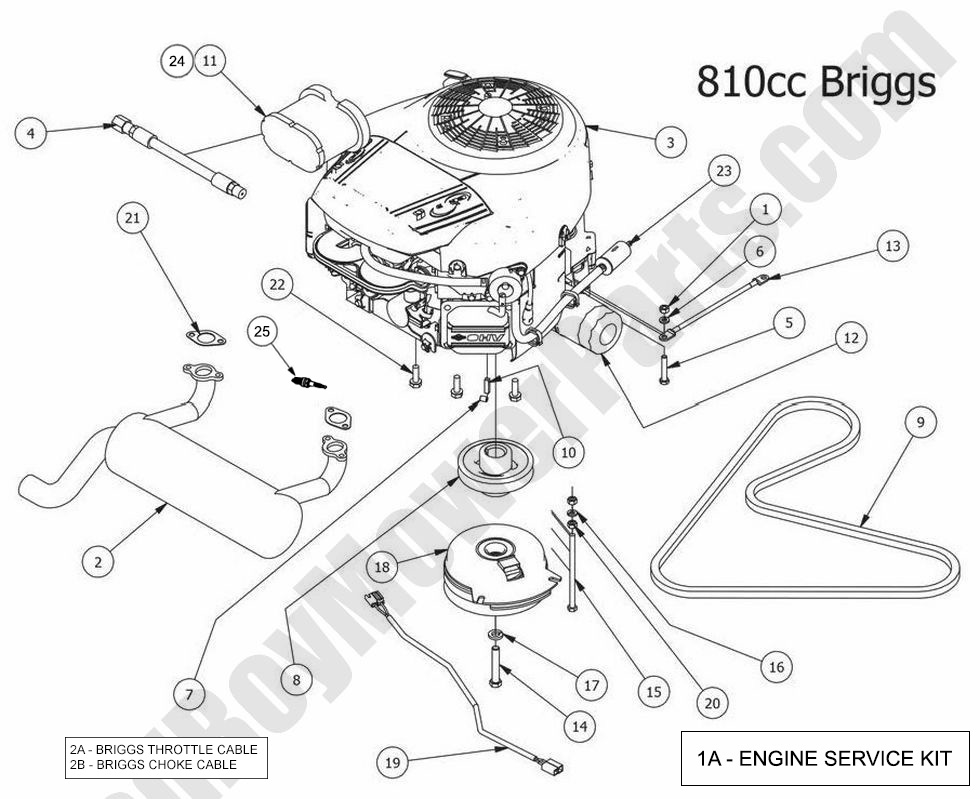

2014 Stand-On Engine - Briggs 810cc
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
2 015-0009-00 015-0009-00 - Exhaust-Stand On-30hp Briggs
$160.49
4 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
5 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
6 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
7 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
8 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
9 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
10 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
11 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$32.58
12 063-8018-00 063-8018-00 - Oil Filter
$21.39
13 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
15 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
19 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
22 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
25 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
