2014 Stand-On Front Fork Assembly

Front Fork Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 Stand-On models. Find all of your Bad Boy mowers 2014 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Stand-On Front Fork Assembly. If you are not able to find the Bad Boy parts for your 2014 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

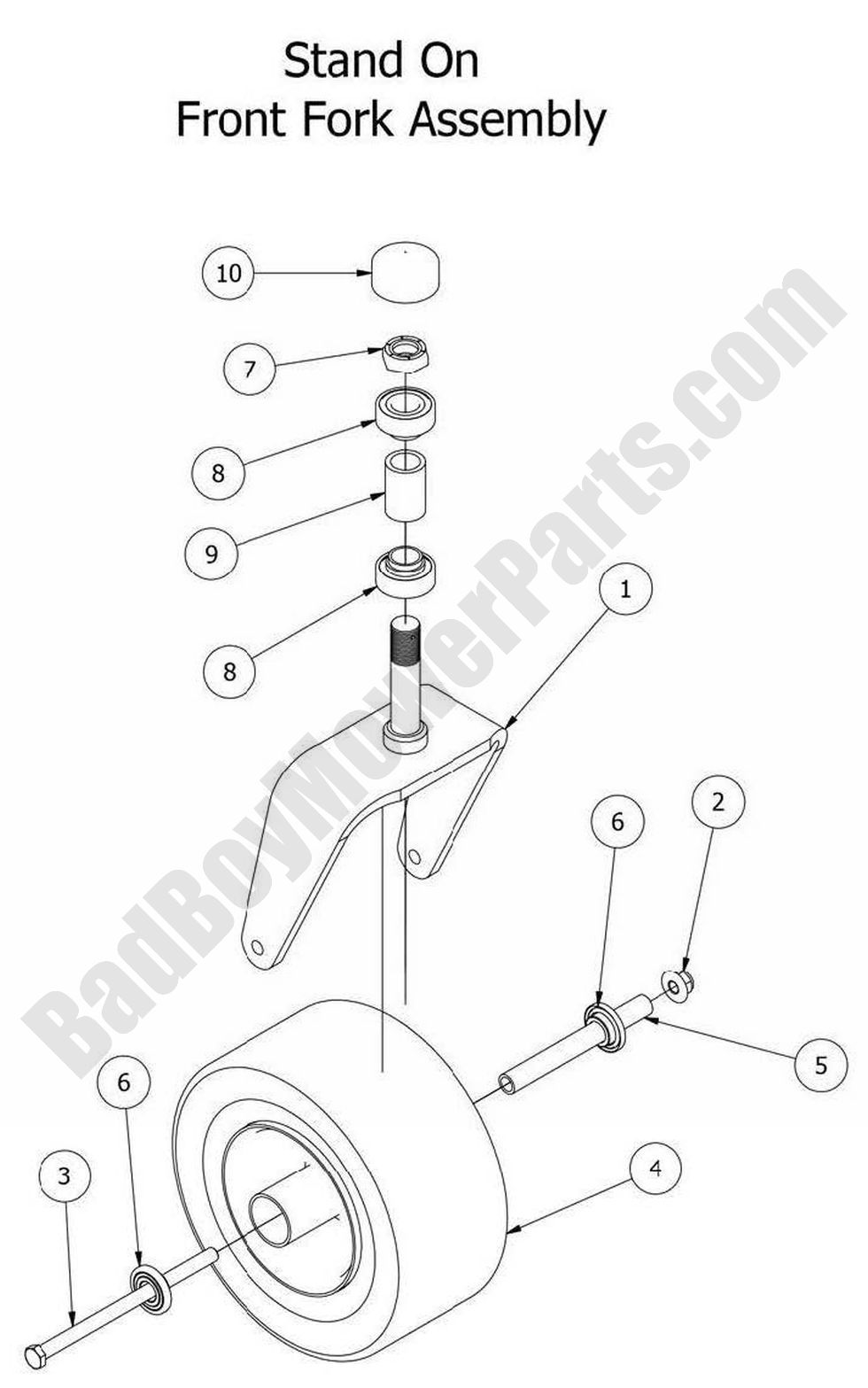

2014 Stand-On Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
4 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$85.59
5 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
6 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
7 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
8 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
9 025-0004-00 025-0004-00 - ZT/CZT Caster Bearing Spacer
$12.77
10 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
